Overview

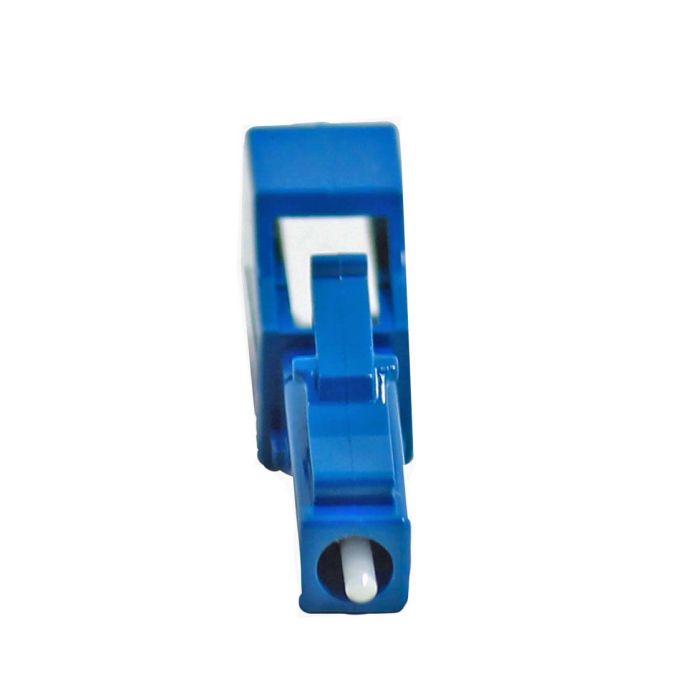

The LC/UPC Male-Female attenuator is a passive fiber optic component designed to reduce the power of an optical signal by 14dB. By introducing a precise level of signal loss, this device prevents saturation of optical receivers, which is critical in high-power systems to ensure signal integrity and prevent potential hardware damage.
This attenuator features a male-to-female (plug-and-jack) interface, allowing it to be easily installed between an existing fiber patch cord and a receiver port. It is optimized for use with singlemode fiber systems operating at 1310nm and 1550nm wavelengths, making it suitable for telecommunications, data centers, and enterprise network environments.
Key Features
-
14dB Attenuation Level
Provides a fixed reduction in optical signal power to protect sensitive network equipment. -
LC/UPC Connector Type
Industry-standard small form factor interface for high-density patching environments. -
Male-to-Female Configuration
Enables direct connection to existing ports for simplified integration. -
Singlemode Compatibility
Engineered for use with standard OS1/OS2 singlemode fiber systems. -
Dual-Wavelength Operation
Optimized for performance at common 1310nm and 1550nm operating windows. -
Compact Design
Minimal footprint allows for deployment in crowded patch panels and equipment racks.
Applications
- Telecommunications networks
- Data center interconnections
- Fiber optic test and measurement systems
- CATV systems
- Preventing receiver saturation in high-power optical links
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F18761A14 |
| Connector Type | LC/UPC |
| Interface | Male to Female |
| Attenuation | 14dB |
| Fiber Mode | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
Frequently Asked Questions
What is the purpose of this attenuator?
It is used to reduce the intensity of an optical signal to prevent receiver saturation in systems where the input signal is too strong.
Does this unit work with multimode fiber?
No, this device is specifically designed for singlemode fiber applications.
How do I install the attenuator?
The male end connects directly to a port, while the female end accepts a standard LC/UPC patch cord.
Can this be used for both 1310nm and 1550nm?
Yes, this attenuator is optimized to perform accurately across these common telecommunications wavelengths.
Is the connector style LC/APC or LC/UPC?
This model features a UPC (Ultra Physical Contact) polish.
