Overview

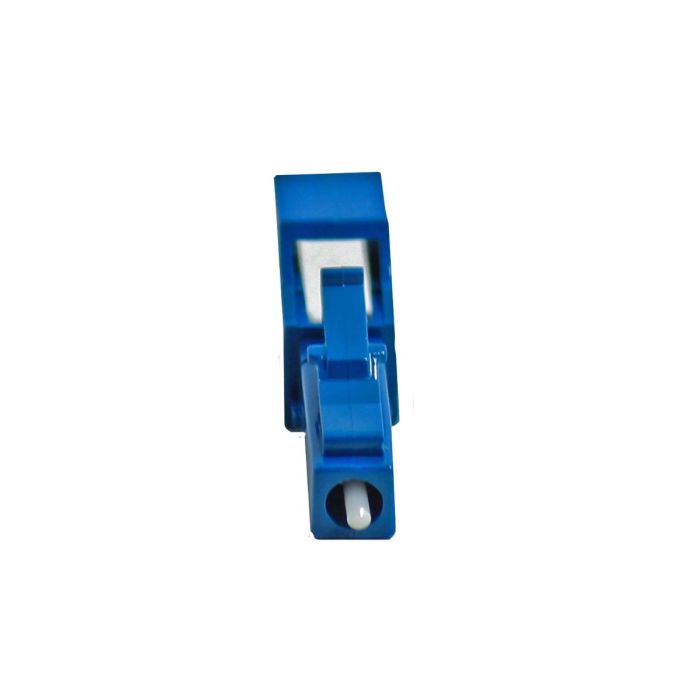

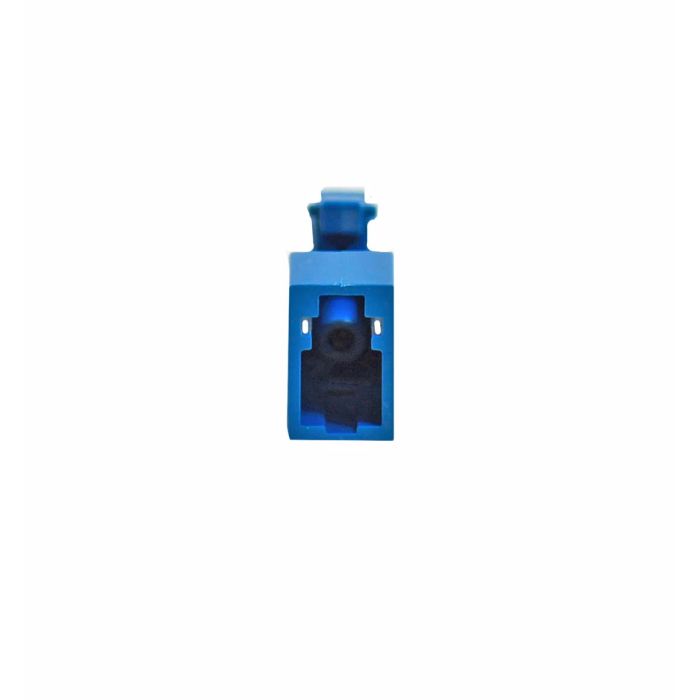

The LC/UPC Male-Female Attenuator is a high-precision fiber optic component designed to reduce the optical power level in singlemode network systems. By integrating doped fiber technology, this device ensures consistent and reliable signal attenuation across standard telecommunications operating windows.
This build-out style attenuator features a convenient male-to-female configuration, allowing for direct installation onto existing patch panels or equipment ports without requiring additional cabling. It is specifically engineered to maintain signal integrity while managing power levels in 1310nm and 1550nm applications, making it an ideal choice for data centers and enterprise network environments where precise signal balancing is required.
Key Features
-
Doped Fiber Construction
Utilizes specialized doped glass to provide precise, stable attenuation of optical signals. -
Dual Wavelength Support
Optimized for performance at both 1310nm and 1550nm operating wavelengths. -
Male-to-Female Interface
Enables seamless, direct integration with standard LC/UPC adapter ports and patch cables. -
Compact Form Factor
Build-out design minimizes footprint, ideal for high-density rack and patch panel environments. -
Standardized LC/UPC Polish
Ensures compatibility with common industry-standard LC network connections. -
Fixed Attenuation Value
Provides a permanent 4dB signal reduction for predictable network performance.
Applications
- Telecommunications network power balancing
- Data center fiber optic equipment protection
- Signal management in enterprise LAN/WAN environments
- Optical testing and system commissioning
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC |
| Polish Type | UPC |
| Fiber Mode | Singlemode |
| Attenuation Value | 4dB |
| Operating Wavelengths | 1310nm, 1550nm |
| Configuration | Male-to-Female |
Frequently Asked Questions
What does the 4dB attenuation rating signify?
It indicates that the device will reduce the incoming signal power by 4 decibels, which is useful for preventing receiver saturation in high-power optical links.
Is this attenuator compatible with both 1310nm and 1550nm systems?
Yes, it is designed for dual-window operation, ensuring consistent performance at both common telecommunications wavelengths.
Can I plug this directly into my current equipment?
Yes, the male-to-female build-out design allows it to plug directly into an existing LC female bulkhead or adapter.
Does this use a physical filter or doped fiber?
This attenuator utilizes doped fiber technology to achieve consistent light absorption.
Are other attenuation values available?
Fixed values are available in 1dB increments from 1dB to 20dB.
