Overview

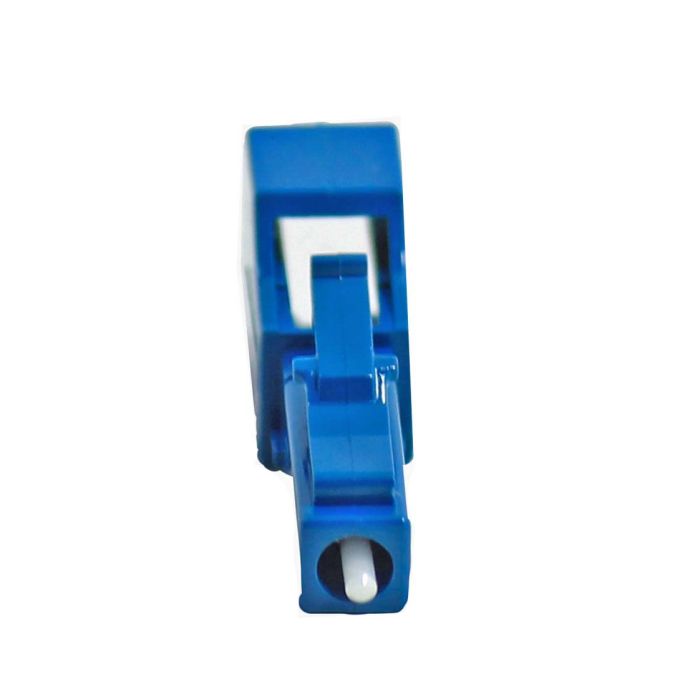

The LC/UPC Male-Female Singlemode Attenuator is a fixed-value optical component designed to reduce signal power in singlemode fiber optic networks. By decreasing the optical power at the receiver, it helps prevent saturation and ensures optimal performance in high-power systems.
This plug-style attenuator features a male-to-female configuration, allowing for direct connection to equipment ports or patch cables. It is compatible with 1310nm and 1550nm operating wavelengths, making it suitable for standard telecommunications, data center, and broadband network applications.
Key Features
-
13dB Attenuation Value
Provides a precise 13dB power reduction to balance signal levels and prevent photodetector saturation. -
LC/UPC Connector Interface
Industry-standard LC interface with UPC (Ultra Physical Contact) polish for reliable, low-loss connections. -
Male-to-Female Design
Compact plug-in style allows for direct, space-saving attachment to existing fiber hardware. -
Dual-Wavelength Optimization
Optimized for operation at both 1310nm and 1550nm windows for versatile network deployment. -
Singlemode Compatibility
Engineered for use with standard singlemode fiber systems to maintain signal integrity. -
Fixed Attenuation
Offers a stable and consistent reduction in power, eliminating the need for periodic adjustments.
Applications
- Telecommunications networks
- Data centers
- Broadband and FTTx systems
- Signal power balancing
- Optical testing environments
Technical Specifications
| Specification | Value |
|---|---|
| Connector A | LC/UPC Male |
| Connector B | LC/UPC Female |
| Attenuation | 13dB |
| Fiber Type | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
Frequently Asked Questions
What is the primary function of this attenuator?
It is used to reduce the signal strength in fiber optic lines to prevent receiver saturation.
Is this attenuator compatible with APC connectors?
No, this model uses a UPC polish. It is not compatible with APC (Angled Physical Contact) connectors.
Can I use this for both 1310nm and 1550nm wavelengths?
Yes, this component is designed for dual-wavelength performance.
How does this connect to my equipment?
The male side plugs directly into a female adapter or equipment port, while the female side accepts a standard LC connector.
Does this require any external power source?
No, this is a passive fiber optic component.
