Overview

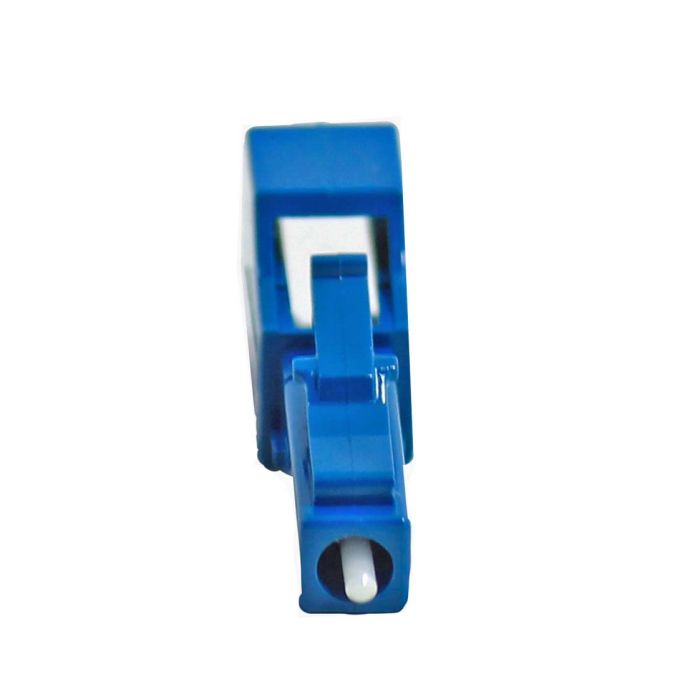

The LC/UPC Male to Female Singlemode Attenuator is a high-precision passive component designed to reduce the optical power level in fiber optic transmission systems. By providing a fixed 20dB signal reduction, this attenuator prevents signal saturation and receiver damage in high-power network environments.
This plug-and-play device features a male-to-female (LC/UPC) interface, allowing for easy integration directly onto existing patch panels or equipment ports. It is calibrated for dual-wavelength operation at 1310nm and 1550nm, making it suitable for standard singlemode telecommunications and data center applications.
Key Features
-
Fixed Attenuation
Provides a stable 20dB signal reduction for consistent network power management. -
Dual-Wavelength Compatibility
Optimized for both 1310nm and 1550nm windows, supporting versatile singlemode deployments. -
LC/UPC Interface
Features a standard LC connector with UPC polish for low-reflectance, high-precision connections. -
Male-to-Female Design
Enables direct mounting to equipment ports or existing patch cord connections without additional adapters. -
Precision Construction
Engineered to maintain signal integrity while reducing optical power. -
Compact Form Factor
Space-saving design allows for high-density integration in rack-mount enclosures.
Applications
- Telecommunications network power level balancing
- Data center link testing
- CATV and fiber-to-the-x (FTTX) installations
- Protection of sensitive optical receiver components
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC/UPC |
| Configuration | Male to Female |
| Fiber Type | Singlemode |
| Attenuation | 20dB |
| Operating Wavelength | 1310nm / 1550nm |
Frequently Asked Questions
Is this attenuator compatible with APC connectors?
No, this is a UPC (Ultra Physical Contact) attenuator and should not be mated with APC (Angled Physical Contact) connectors.
Can this be used on multimode fiber?
No, this device is designed specifically for singlemode fiber applications.
What does the 20dB value represent?
It represents a fixed 20 decibel reduction in the optical signal power passing through the attenuator.
Does this require special tools to install?
No, it is a plug-and-play device that installs directly into standard LC adapter ports.
Can I use this for high-power laser applications?
Please consult your specific system power budget and the manufacturer specifications for maximum power handling limits before deployment.
