Overview

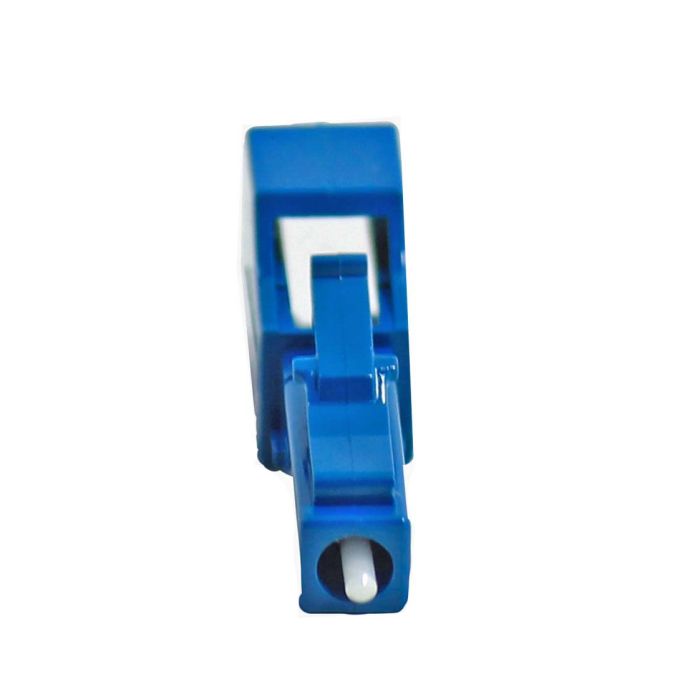

The LC/UPC Male to Female Fiber Optic Attenuator is a high-precision passive component designed to reduce optical signal power within singlemode network systems. By decreasing the signal level, it prevents receiver saturation and ensures optimal performance in high-power fiber optic links.
Engineered for use in 1310nm and 1550nm wavelength environments, this attenuator features a compact male-to-female design, allowing for seamless integration directly into existing adapter ports or fiber equipment interfaces. This configuration provides a stable, fixed 12dB reduction, supporting reliable network calibration and signal management in data centers and telecommunications infrastructure.
Key Features
-
Fixed Attenuation Level
Provides a precise 12dB reduction for consistent signal management. -
LC/UPC Connector Interface
Utilizes standard industry-compatible LC/UPC connectors for universal connectivity. -
Singlemode Compatibility
Optimized for use with standard 9/125μm singlemode fiber infrastructure. -
Dual Wavelength Support
Designed to perform effectively at both 1310nm and 1550nm operating windows. -
Male to Female Design
Enables direct plug-and-play installation into existing adapters and patch panels. -
Compact Form Factor
Minimal footprint allows for high-density applications in racks and cabinets.
Applications
- Telecommunications network power level balancing
- CATV fiber optic link maintenance
- Fiber to the Home (FTTH) distribution networks
- Receiver protection in high-power optical systems
- Laboratory testing and measurement setups
Technical Specifications
| Specification | Value |
|---|---|
| Attenuation Value | 12dB |
| Connector Type | LC/UPC |
| Gender | Male to Female |
| Fiber Mode | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
Frequently Asked Questions
What is the purpose of this attenuator?
This device reduces optical signal power by 12dB to prevent receiver saturation in high-power fiber optic links.
Is this compatible with multimode fiber?
No, this device is specifically designed for singlemode fiber optic systems.
Does this require special tools to install?
No, the male-to-female connector design allows it to be installed directly into existing LC adapters without tools.
Can I use this at wavelengths other than 1310/1550nm?
This attenuator is optimized for 1310nm and 1550nm; use outside these ranges may result in inaccurate attenuation levels.
What does the LC/UPC designation mean?
It refers to the Small Form Factor (LC) connector style with an Ultra Physical Contact (UPC) polish.
