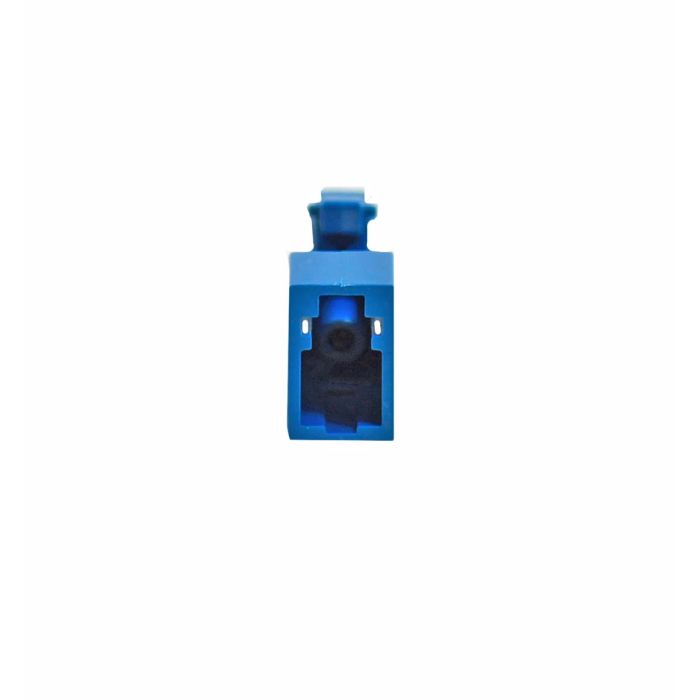

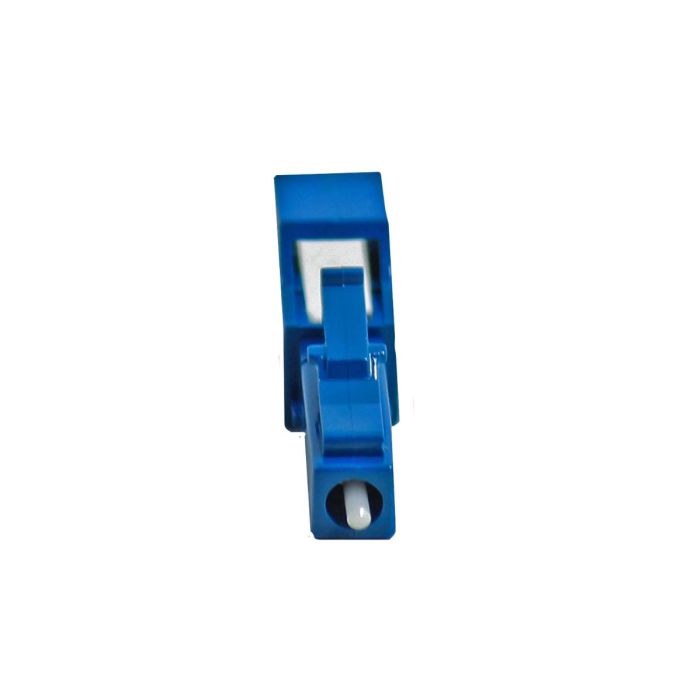

LC/UPC Male-to-Female Singlemode 1310/1550nm Attenuator 5dB

Overview

The LC/UPC Male-to-Female Attenuator is a high-precision fiber optic component designed to reduce optical signal power levels without introducing significant signal distortion. It is primarily utilized in singlemode fiber networks to prevent saturation of optical receivers, which can lead to high bit error rates and network instability.

Constructed with integrated doped fiber, this attenuator is optimized for performance across the standard telecommunications operating wavelengths of 1310nm and 1550nm. Its compact male-to-female (buildout) design allows for seamless integration directly onto existing patch panels or equipment ports, facilitating quick deployment in dense fiber environments.

Key Features

• Doped Fiber Technology
  Utilizes specialized doped fiber to achieve consistent attenuation levels, ensuring stable signal reduction.
• Universal Wavelength Compatibility
  Engineered for effective operation at both 1310nm and 1550nm, supporting versatile network applications.
• Buildout Design
  The male-to-female interface allows for easy plug-and-play installation into standard LC adapters, saving valuable rack space.
• Precision Attenuation
  Provides a fixed 5dB attenuation, enabling accurate power level management in optical links.
• Singlemode Optimized
  Designed specifically for use with singlemode fiber systems to maintain signal integrity.
• Low Return Loss
  The UPC (Ultra Physical Contact) polish minimizes back-reflections, protecting sensitive network equipment.

Applications

• Telecommunications network power level balancing
• CATV and broadcast optical systems
• Optical testing and laboratory setups
• Data center link optimization
• Prevention of receiver saturation in fiber-to-the-x (FTTX) installations

Technical Specifications

Frequently Asked Questions

What is the primary function of this attenuator?
This device is used to reduce the signal strength of a fiber optic link to prevent receiver saturation in systems where the input signal is too powerful.

Is this compatible with multimode fiber?
No, this is specifically designed for singlemode fiber networks.

Can this be used on both 1310nm and 1550nm wavelengths?
Yes, the internal doped fiber is suitable for operation at both of these common telecommunications wavelengths.

What does the male-to-female designation mean?
It indicates that the attenuator acts as a bridge; the male end plugs into a bulkhead adapter, while the female end accepts a standard LC patch cord.

Does the connector require cleaning?
Yes, as with all fiber optic connections, the mating surfaces should be inspected and cleaned with appropriate fiber cleaning tools prior to installation to ensure optimal performance.
