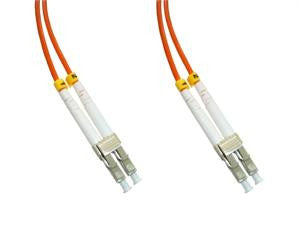

LCP-LCP-MD5 - LC/PC to LC/PC, multimode 50/125 duplex fiber optic patch cord cable, 2m

CTC Union Part No.: LCP-LCP-MD5-2M

  • $ 20.80 or

Product description
Multimode 50/125 um core, duplex LC/PC to LC/PC fiber optic patchcord, good for 850nm and 1310nm multimode connections. The 50/125 um core is optimized for Gigabit applications using 850nm wavelength.

Technical specifications:
- typical insertion loss: 0.35 dB
- return loss > 25 dB
- fiber jacket 1.8mm, orange color, zipcord
- operating temperature: -40 to +75 Celsius degrees
- each cable assembly is manually tested and verified
- each cable assembly is individually sealed and labeled
- label mentions measured loss on patch cord


Sold Out
