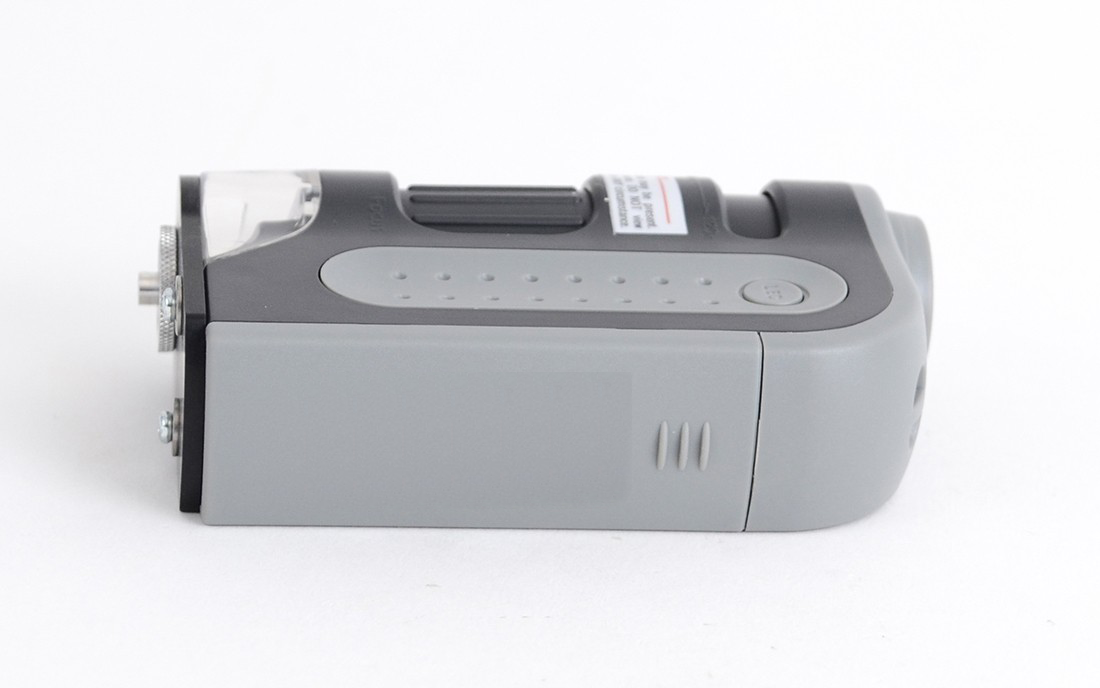

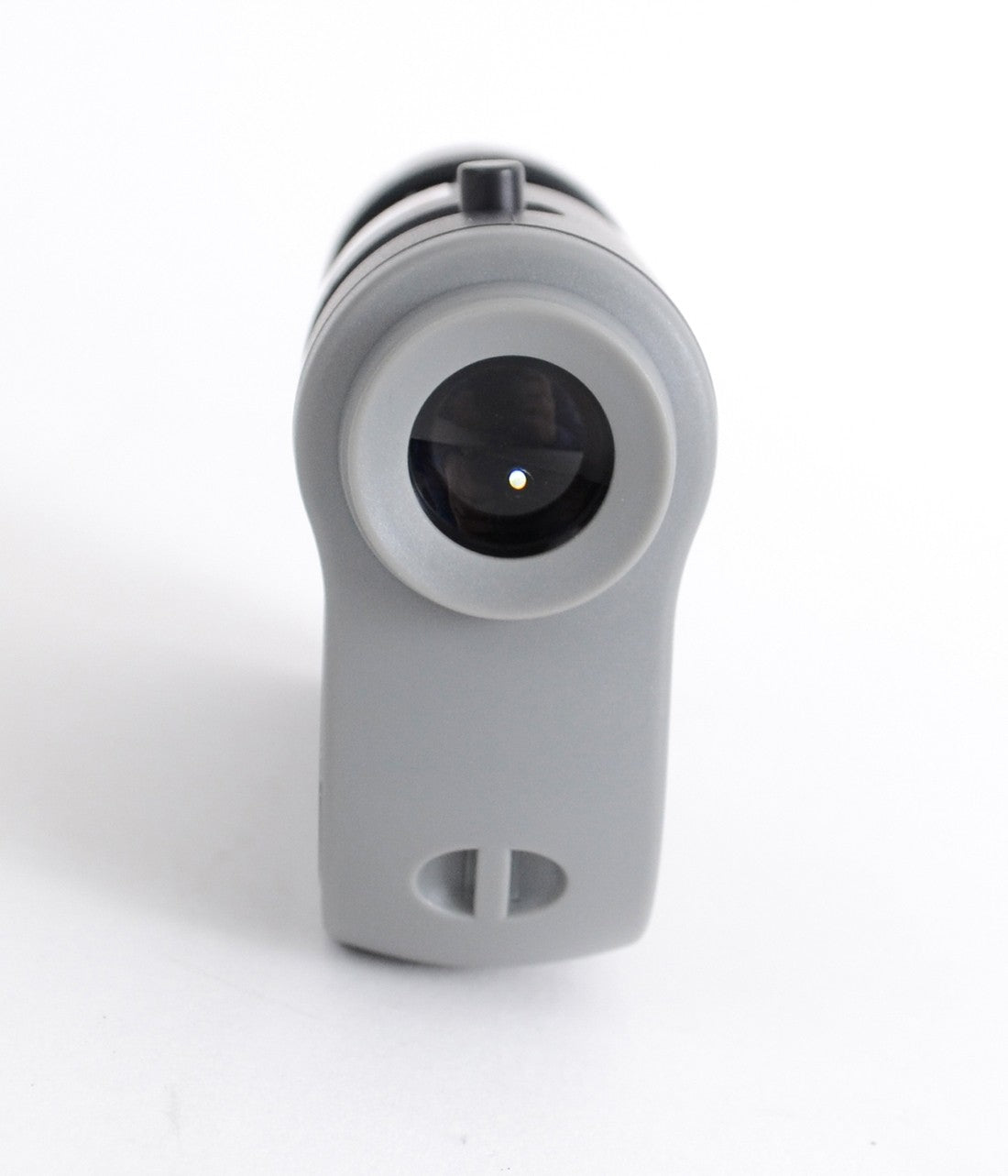

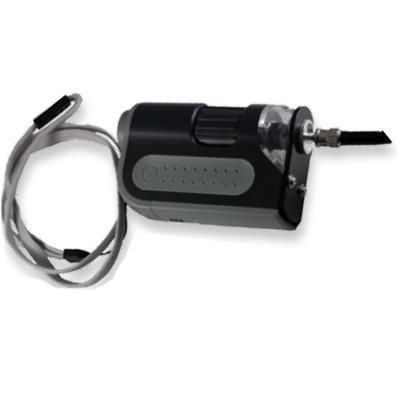

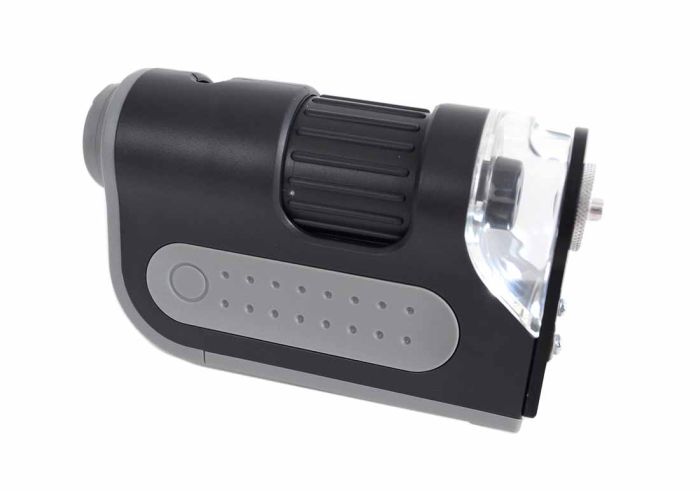

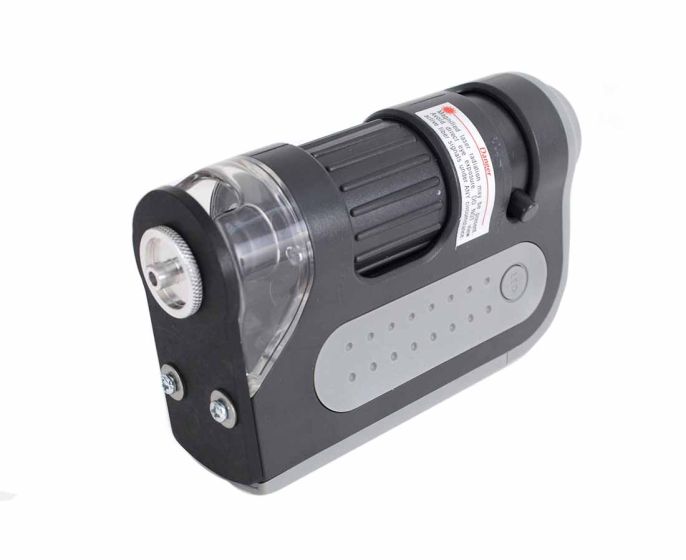

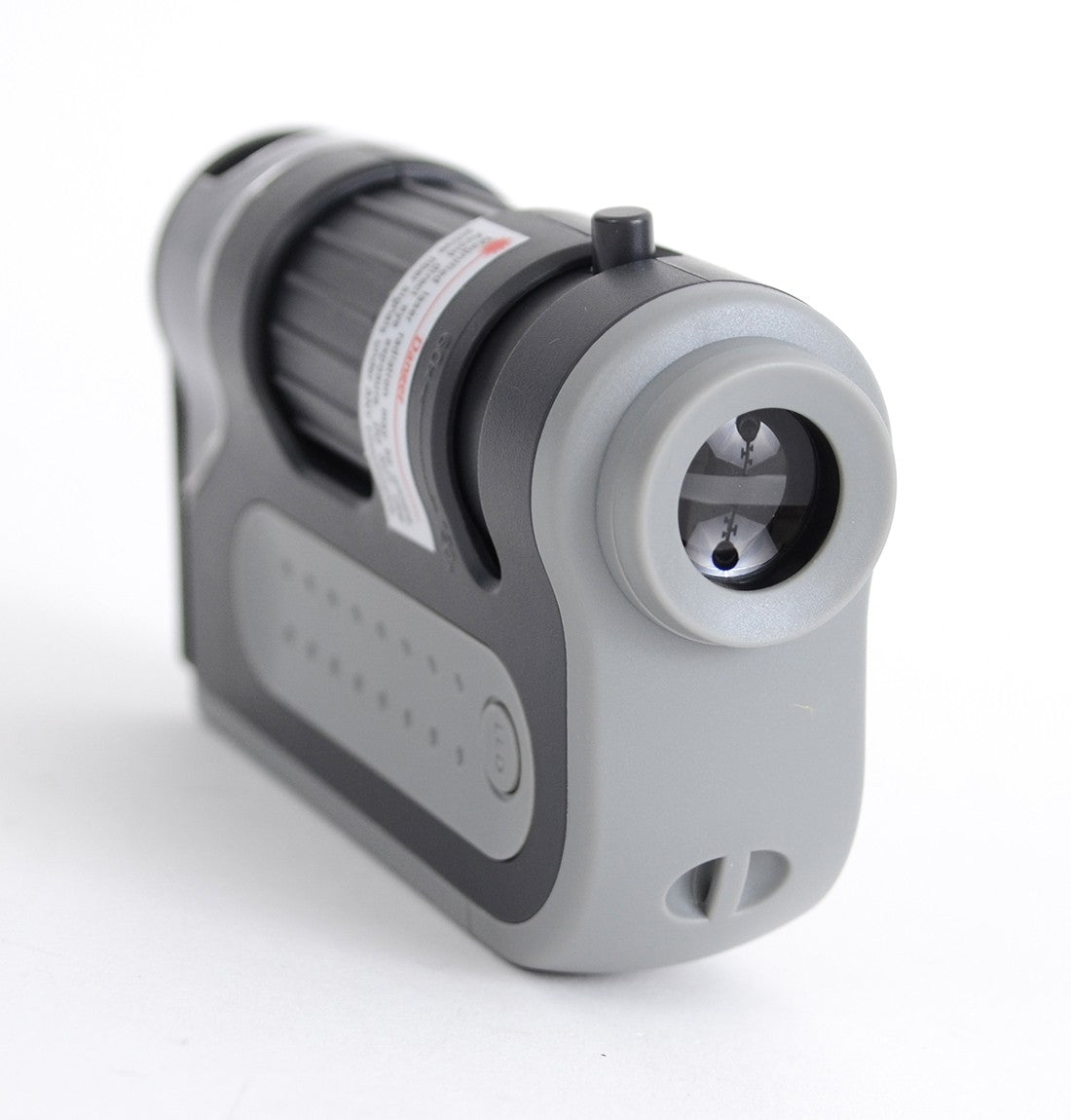

LED Fiber Inspection Scope with Universal 2.5mm UPC/APC Adpater

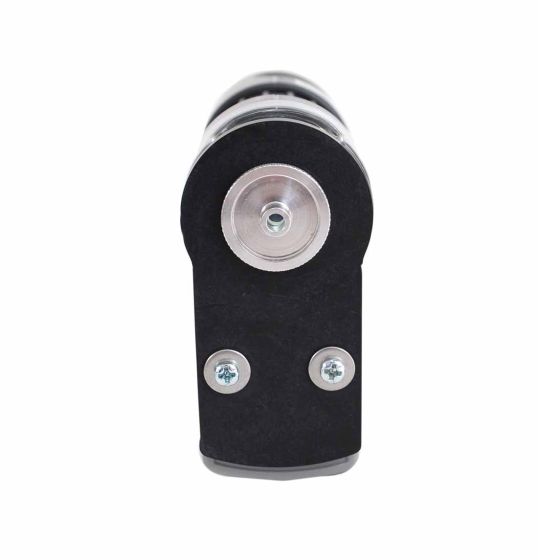

The Universal Microscope is provided with a 2.5mm universal faceplate. Insert the ferrule into the microscope and inspect the end face with ease. This complete 100x microscope is perfect for multimode connectors and is easy to use.
Features:
- 2.5mm universal faceplate
- Perfect for multimode connectors and is easy to use
SPECIFICATIONS
Connector Styles: SC, ST, and FC (2.5mm universal)
Connector Configuration: Accepts both UPC and APC
Fiber Type: Singlemode OS1/OS2 and Multimode OM1/OM2/ OM3/OM4
Magnification: Adjustable 60x to 120x
View Angle: Flat view, clear distinction between core and cladding layers
Exit Pupil Diameter: 10mm - 14mm
Optical Zoom: 2x
Power: 1 x AA battery (not included)
Illumination: LED
Size: 59mm x 30mm x 92mm
Weight: Approx. 50 grams (excluding batteries)
Download Product Spec Sheet:
