LFC-100-SC20A Fast Ethernet to BiDi WDM SC, 20Km, T:1310/R:1550nm singlemode single strand fiber media converter, LFP and DIP sw settings
LFC-100-SC20A Fast Ethernet to BiDi WDM SC, 20Km, T:1310/R:1550nm singlemode single strand fiber media converter, LFP and DIP sw settings
Note: AC 90-240V power adapter is included in carton package.
Product description

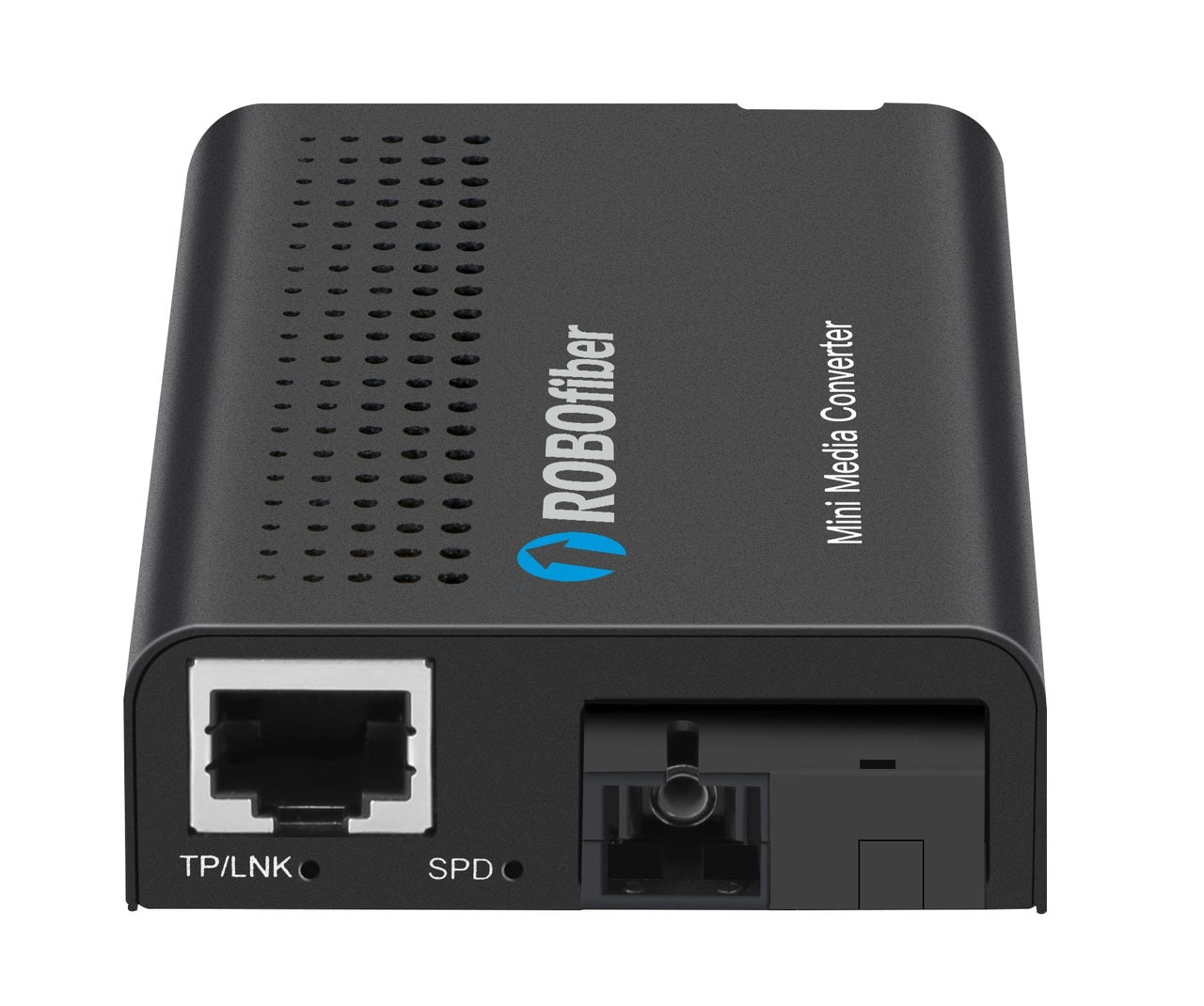

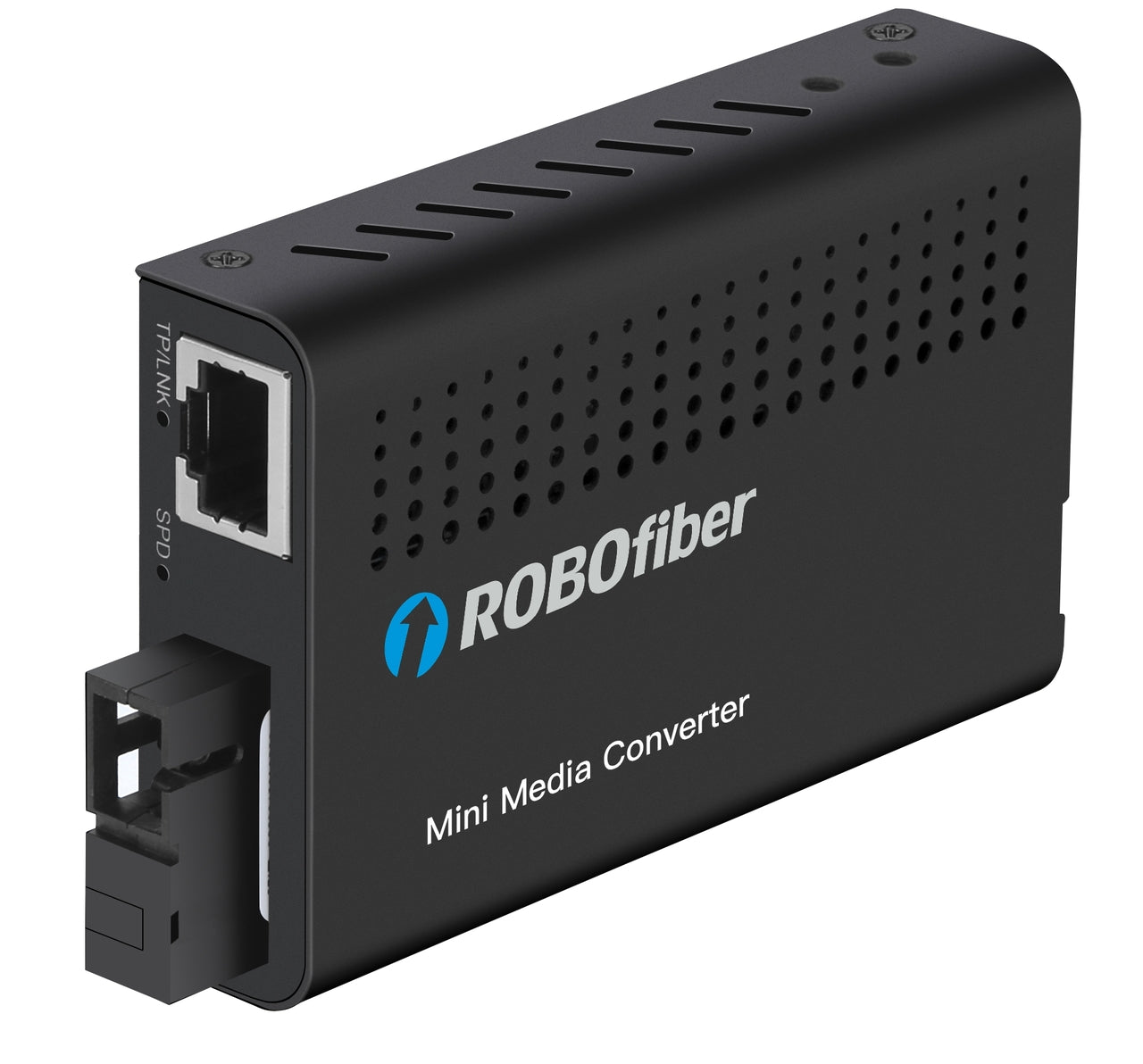

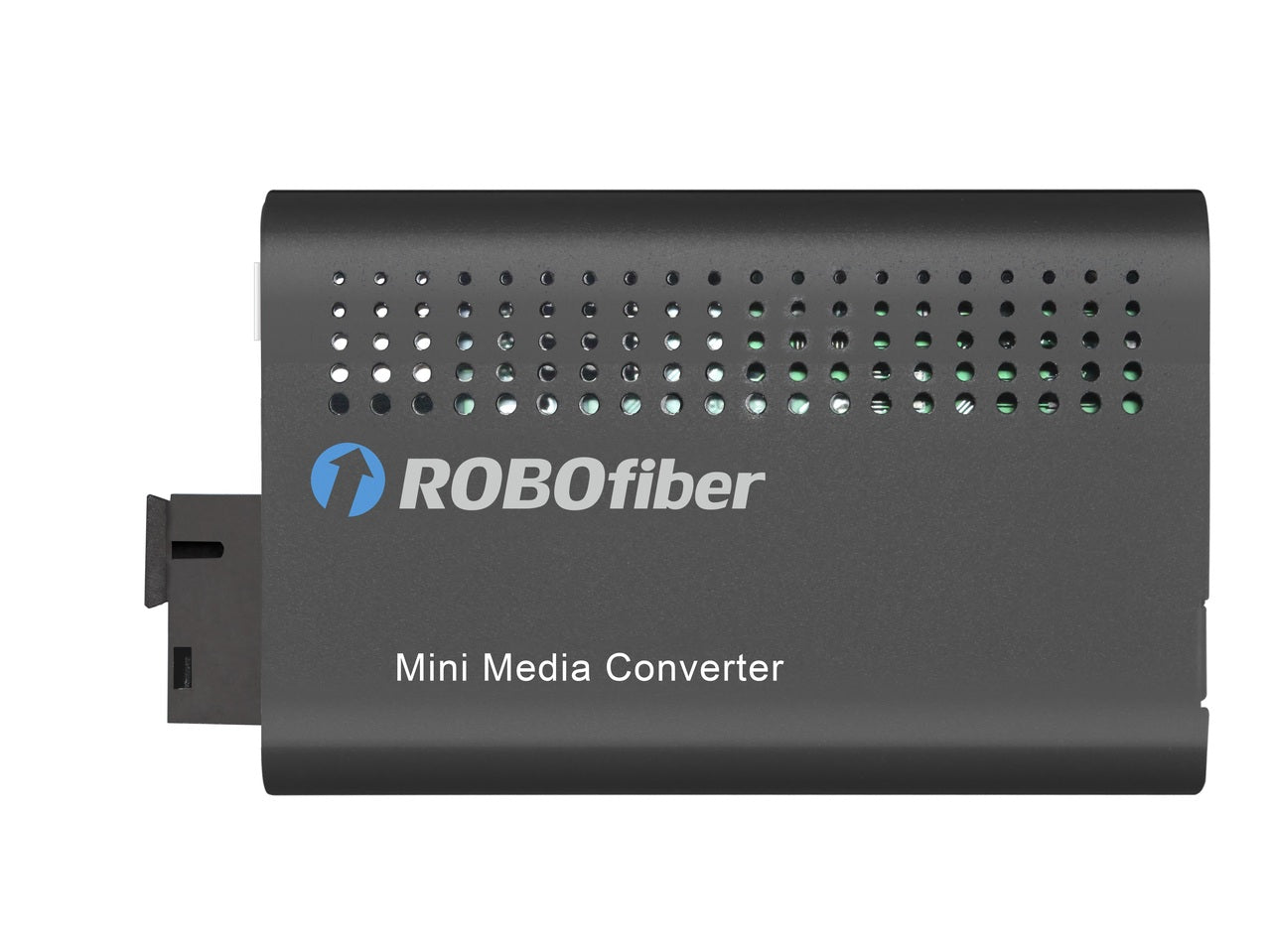

LFC series are newest series of media converters. The LFC-100-SC20A is a 10/100Base-Tx to single strand single-mode fiber, simplex SC connector, T:1310/R:1550nm type A, 20Km BiDi WDM reach optical port. Media converter is un-managed but the RJ-45 copper port has auto-negotiation 10/100 and MDI/MDI-X features and DIP switch settings available for LFP function, converter-switch mode and speed and flow controls.
A BiDirectional type A media converter using Tx:1310nm/Rx:1550nm MUST be always paired with a type B media converter that has Tx:1550nm/1310nm optics for an operational link. This is required for operation over a single strand of fiber optic. Please make sure you have the complementary model required for proper fiber connectivity. For type A the counterpart media converter is LFC-10-100-SC20B
LED indicators signal the power status of the converter, UTP port speed, UTP Link and FX port Link. Used with their compatible LFC-CH12 fiber optic chassis they can be aggregated up to 12 units in a 19" wide and only 1RU of height space only. This is the highest density attainable for unmanaged fiber media converters.
The LFC-100-SC20A Fast Ethernet converter also offers the optional wall mounting solution for individual converters named LFC-WMK.
Features
- 10/100Base-Tx to BiDirectional (WDM) single strand fiber media converter
- Auto-Negotiation
- Auto MDI/MDIX
- Forward 2048 bytes (Max.) packets in switch mode
- Forward 9k bytes in converter mode (fiber & copper port at the same speed, transparent)

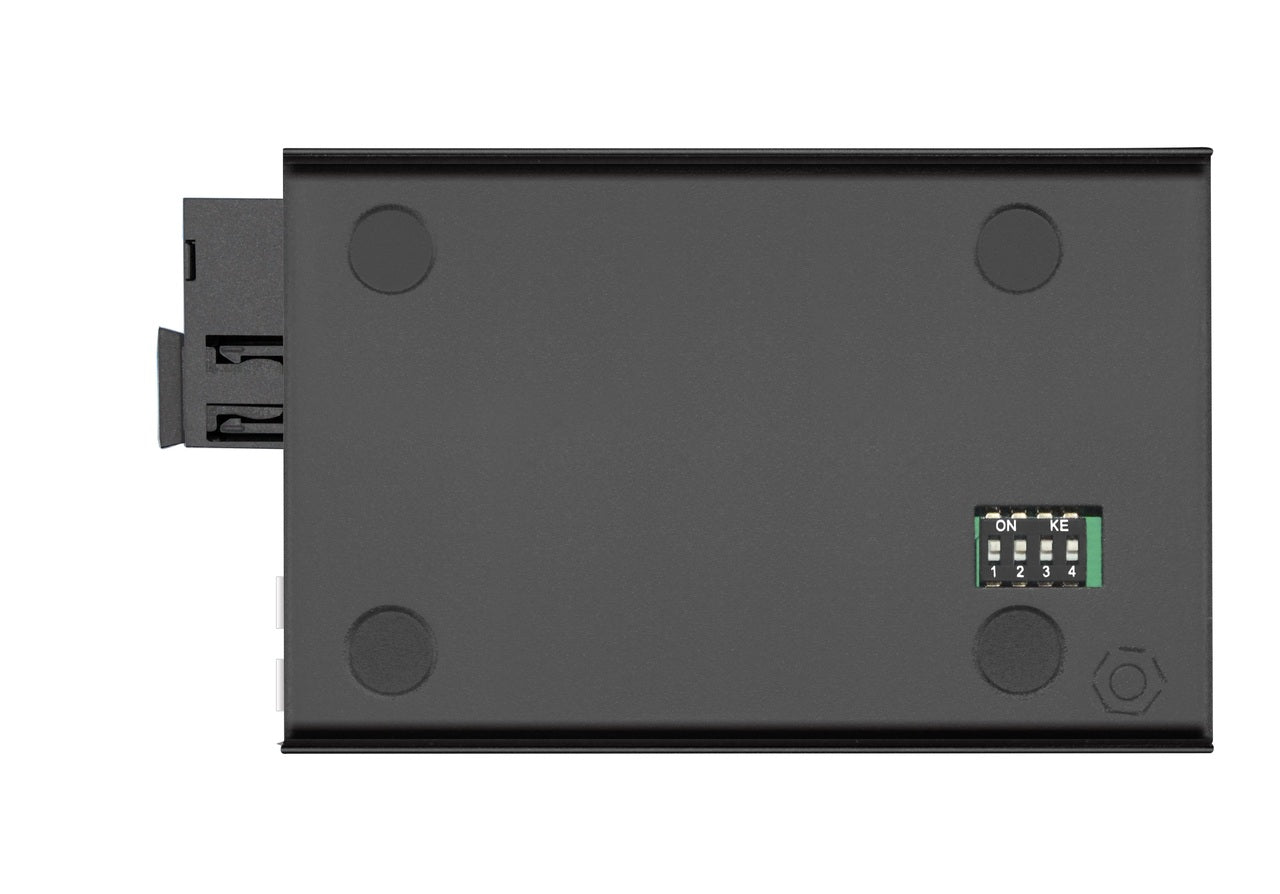

- Provides DIP switch to set function
- Select UTP speed (10/100M)
- Select LPF enable / disable
- Converter mode enable / disable
- Select Half/Full Duplex flow
- Supports Q in Q double tagged frame transparent
- Supports IEEE 802.1Q Tag VLAN pass thru
- Aggregates into LFC-CH12 series chassis available with various power supplies
Technical specifications
| Copper interface: | RJ45 copper IEEE 802.3 10Base-T and 802.3u 100Base-TX compliant |
| Optical interface: | Single strand BiDi SMF, SC simplex, Tx:1310nm/Rx:1550nm, 20Km reach, type A |
| Ethernet interface: | Supports 10/100BaseTX, Full, Half duplex n-way (Auto-Negotiation). Supports Full, Half duplex, 10/100 speed manual selection. Transmission Packet Rate for 10/100Base-TX : 14880 per second /148800 per second. Copper TP cable 4 pair Cat. 5, 5e UTP |
| Optical connector: | SC simplex connector |
| Front LEDs: | PWR, Fiber Link, TP Link, Speed |
| Power: | External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug AC 90-240V power adapter is included in carton package |
| Temperature: | 0~50°C (Operating); -30~70°C (Storage) |
| Humidity: | 10-85% non condensing (Operating); 0-90% (Storage) |
| Consumption: | less than 4W |
| Dimensions(WxDxH): | 60mm x 90mm x 20mm |
| Weight: | 180g (without AC adapter) |
| Compliance: | FCC part 15, Subpart B, Class A, ANSI C63.4:2003 CE EN55022:2006, Class A EN55024:1998+A1:2001+A2:2003 LVD: EN 60 950-1:2001 |
| MTBF: | 65,000 hours |
