Overview

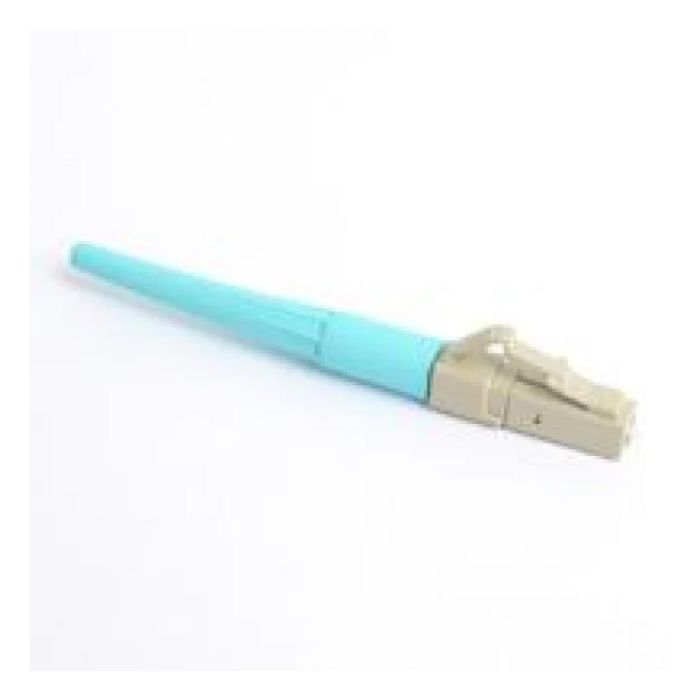

The Lightera Splice-On Connector (SOC) system provides a reliable and efficient method for fiber optic termination in the field. By utilizing a fusion-splicing process to attach the connector to the fiber, this solution eliminates the time-consuming requirements of traditional field polishing and epoxy application.
Designed for flexibility and ease of use, these connectors are particularly well-suited for FTTx deployments where speed and termination quality are critical. The simplified assembly process minimizes the need for extensive operator training, ensuring consistent results across various installation environments.
Key Features
-
Fusion-Based Termination
Ensures a permanent, low-loss connection that mimics factory-terminated performance. -
No Epoxy Required
Reduces preparation time and eliminates chemical curing steps during installation. -
No Field Polishing
Removes the need for polishing films and lapping tools, streamlining the field workflow. -
LC/PC Interface
Features a standard LC physical contact design compatible with common network hardware. -
Multimode 62.5/125um OM1
Optimized for legacy multimode network environments. -
2mm Cable Compatibility
Designed for use with 2mm jacketed fiber optic cable. -
10-Pack Configuration
Provides a convenient quantity for multi-connector deployment projects.
Applications
- FTTx network installations
- Field repair and restoration
- Data center fiber management
- Enterprise network upgrades
Package Contents
- 10 x Lightera LC/PC Multimode SOC Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Lightera |
| Part Number | FSOCLC20M1P |
| Connector Type | LC |
| Polish | PC |
| Fiber Type | Multimode |
| Fiber Size | 62.5/125um (OM1) |
| Cable Diameter | 2mm |
| Quantity | 10 Pack |
Frequently Asked Questions
What does the splice-on process involve?
The connector is terminated using a fusion splicer to join the fiber, rather than traditional adhesive or mechanical clamping methods.
Does this connector require a fusion splicer?
Yes, this SOC is designed to be installed using a compatible fusion splicer.
Are these connectors reusable?
No, these are single-use field-installable connectors.
Are these suitable for single-mode fiber?
No, this specific part number is designed for OM1 62.5/125um multimode fiber.
Is polishing equipment needed for this installation?
No, the Lightera system is specifically designed to eliminate the need for field polishing.
