Overview

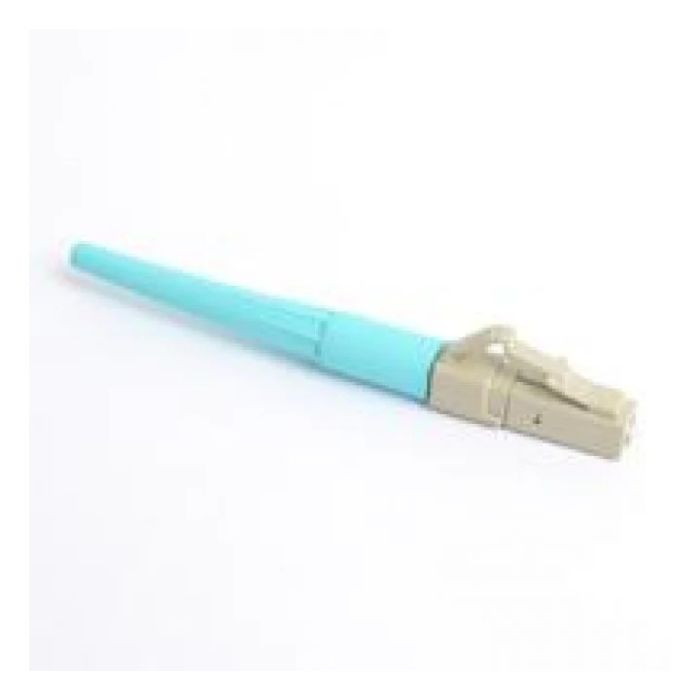

The Lightera Splice-On Connector (SOC) provides a streamlined solution for field termination of optical fibers. By utilizing a factory-pre-polished ferrule, this system eliminates the requirement for time-consuming field epoxy application and manual polishing, ensuring consistent performance and reduced installation labor.
Designed specifically for flexibility and speed, these connectors are well-suited for FTTx deployments and high-density network environments. Their design allows for a rapid assembly process that requires minimal technical training, making them an efficient choice for network contractors and field technicians maintaining OM3 multimode fiber installations.
Key Features
-
Pre-Polished Ferrule
Features a factory-finished interface which eliminates the need for field polishing, ensuring reliable return loss and insertion loss performance. -
Epoxy-Free Termination
Removal of the adhesive process simplifies the installation workflow and reduces material preparation time on-site. -
Splice-On Design
Direct fusion splicing onto the fiber cable provides a high-strength, permanent mechanical connection that mimics the reliability of factory-terminated patch cords. -
OM3 Multimode Compatibility
Engineered specifically for 50/125 micron OM3 fiber, supporting high-speed data transmission for local area networks and data center backbones. -
Simplified Assembly
The intuitive design allows for fast, consistent results, reducing the skill level required for successful field terminations. -
10-Pack Configuration
Supplied in a convenient 10-pack, ideal for completing small-to-medium scale link deployments or maintenance tasks.
Applications
- FTTx (Fiber to the X) network installations
- Data center fiber infrastructure
- Local Area Network (LAN) maintenance
- Field repair of damaged fiber optic links
- Broadband network deployments
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC/PC |
| Fiber Type | Multimode (OM3) |
| Cable Compatibility | 2mm |
| Quantity | 10 Pack |
Frequently Asked Questions
Does this connector require epoxy?
No, this is a splice-on connector designed to be terminated via fusion splicing, eliminating the need for epoxy.
Is polishing required in the field?
No, the connector ferrule comes pre-polished from the factory.
What type of fiber is this compatible with?
This specific model is designed for OM3 multimode fiber.
What is the primary application for this connector?
It is optimized for FTTx applications where fast and consistent field termination is required.
What cable size does this support?
This connector is designed for 2mm fiber cable.
