Overview

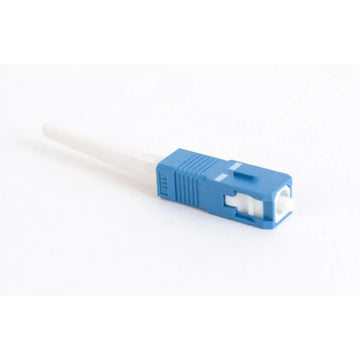

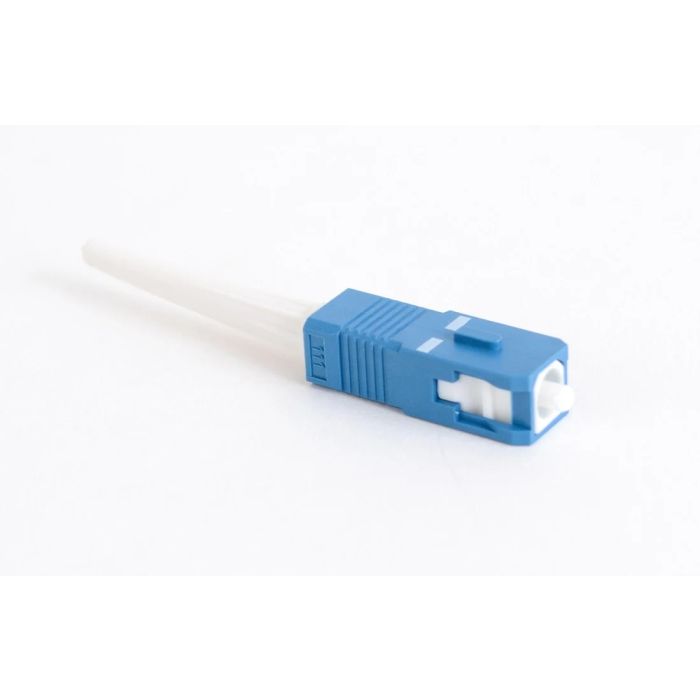

The Lightera Splice-On Connector (SOC) provides a high-performance field termination solution for multimode fiber networks. By utilizing fusion splicing technology, these connectors ensure a reliable, permanent, and low-loss connection without the need for manual polishing or hazardous adhesives.
Designed for SC/PC applications, this connector is compatible with both 2mm and 3mm cable diameters. It is ideal for data center environments, telecommunications infrastructure, and enterprise networks where quick, consistent, and durable fiber terminations are required.
Key Features
-
Fusion Splicing Technology
Uses thermal fusion to create a permanent fiber-to-fiber bond, ensuring low optical signal attenuation. -
No-Polish Design
Eliminates the requirement for manual polishing processes, significantly reducing installation time and operator errors. -
Epoxy-Free Termination
Removes the need for mixing, applying, or curing epoxies, allowing for a cleaner and faster termination process. -
Versatile Cable Compatibility
Engineered to be used with both 2mm and 3mm jacketed fiber cables for broader deployment options. -
SC/PC Connector Interface
Provides a standard, widely used connector type for easy integration into existing fiber distribution systems. -
High-Density Ready
Compact design supports efficient use of space in patch panels and enclosures.
Applications
- Data center fiber management
- Enterprise LAN networks
- Telecommunications infrastructure
- Field fiber repairs and restorations
- FTTX installations
Package Contents
- 10 x SC/PC Multimode Splice-On Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | SC/PC |
| Fiber Type | Multimode (OM1) |
| Core/Cladding Diameter | 62.5/125um |
| Compatible Cable Size | 2mm / 3mm |
| Quantity | 10 Pack |
Frequently Asked Questions
What tools are required for installation?
This connector requires a compatible fusion splicer and standard fiber preparation tools (strippers and cleaver).
Is this connector reusable?
No, splice-on connectors are designed for permanent, one-time installation.
Can I use this with singlemode fiber?
No, this model is specifically designed for 62.5/125um OM1 multimode fiber.
Is epoxy required?
No, this connector is designed for fusion splicing, eliminating the need for adhesives.
What is the benefit of a splice-on connector?
They provide the optical performance of a factory-terminated assembly with the convenience of field installation.
