Overview

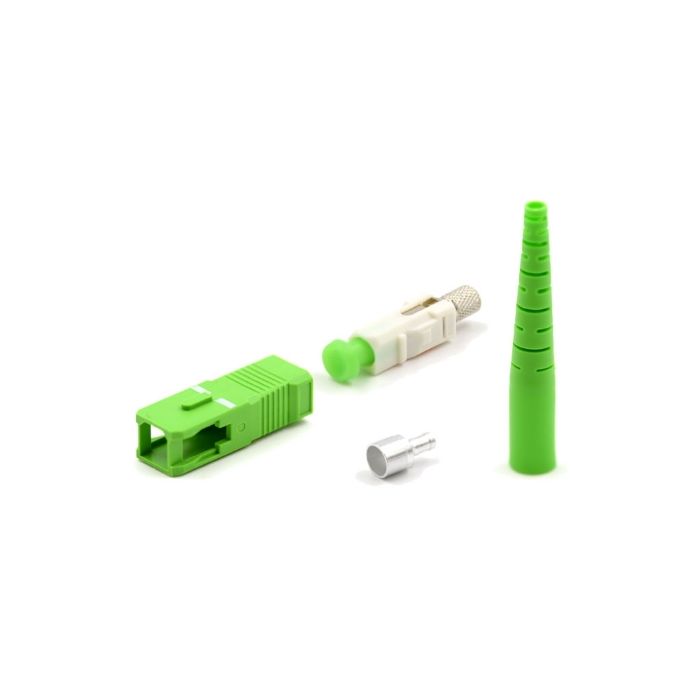

The Lightera Splice-On Connector (SOC) is designed for efficient field termination of 62.5/125um multimode fiber. By utilizing a fusion splicing process, these connectors provide a reliable, permanent connection that eliminates the need for manual field polishing or epoxy application. This system significantly reduces installation time while maintaining consistent optical performance across all connections.
Engineered for versatility, these connectors are specifically optimized for use in FTTx environments where rapid deployment and durability are required. The assembly process is straightforward, requiring minimal training to achieve professional-grade results in the field.
Key Features
-
Fusion Splicing Technology
Uses advanced fusion splicing to create a permanent, low-loss optical path. -
Field Termination
Enables on-site assembly, providing flexibility for custom cable runs. -
No Epoxy or Polishing
Eliminates time-consuming adhesive curing and manual polishing steps, reducing overall installation time. -
SC/PC Configuration
Industry-standard SC/PC interface ensures compatibility with a wide range of network equipment. -
Multimode 62.5/125um Support
Engineered specifically for OM1 fiber optic infrastructures. -
Consistent Performance
Provides repeatable results, minimizing the variance typically associated with mechanical connectors.
Applications
- FTTx network installations
- Field repair of damaged fiber terminations
- Central office and headend connectivity
- Enterprise network cabling
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Lightera |
| Connector Type | SC/PC |
| Fiber Type | Multimode (OM1) |
| Fiber Diameter | 62.5/125um |
| Buffer Size | 900um |
| Package Quantity | 10 Pack |
Frequently Asked Questions
Are these connectors suitable for singlemode fiber?
No, this specific SKU is designed for 62.5/125um OM1 multimode fiber.
Do I need a special tool to install these?
Yes, a fusion splicer compatible with splice-on connectors is required for the termination process.
Is polishing required during the installation?
No, these connectors are factory-polished, eliminating the need for any field polishing.
Can these be reused?
Splice-on connectors are generally designed for a single permanent installation.
What is the buffer size for these connectors?
These connectors are designed for 900um tight-buffered fiber.
