Overview

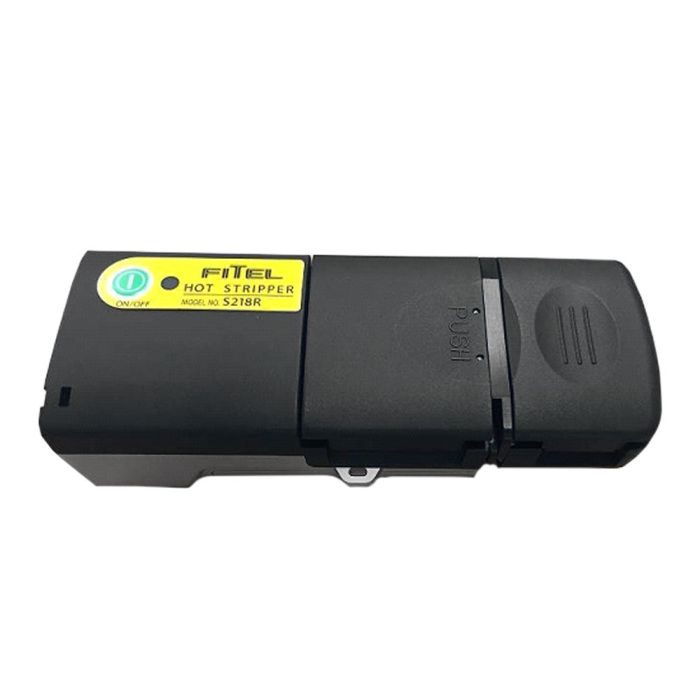

The Lightera Thermal Stripper is a professional-grade tool designed for the precise removal of coatings from optical fibers, including 200 and 250 µm rollable ribbon (RR) fibers. By applying controlled heat to the fiber during the stripping process, this unit significantly reduces the required stripping force, effectively minimizing the risk of mechanical fiber damage during preparation.
Engineered for versatility, this portable device is suitable for both field and lab environments. It features a lightweight, durable construction and operates via either a built-in battery or an AC/DC power source, offering flexibility for various networking and data center installation requirements.
Downloads
Key Features
-
Thermal Stripping Technology
Applies controlled heat to fiber coatings to lower stripping force, protecting the glass fiber from damage. -
Rollable Ribbon Compatibility
Specifically engineered to handle 200 and 250 µm rollable ribbon fibers, as well as standard single and ribbon fibers. -
Adjustable Temperature
Allows for fine-tuned heating settings to suit different fiber types and coating materials. -
Integrated Battery System
Includes a built-in battery charger with approximately 10 hours of operation time, facilitating remote field use. -
Rapid Charge Time
Achieves a full battery charge in approximately 2.5 hours when the unit is powered off. -
Portable Form Factor
Durable and lightweight design measuring 125W × 48D × 41H mm for easy handling and transport.
Applications
- Silica glass-based optical fiber preparation
- Single fiber stripping (0.2 mm coating)
- Ribbon fiber stripping (up to 16-fiber RR)
- FTTX and data center installation
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | FITEL |
| Model | S218R-200 |
| Clad Diameter | 0.125 mm |
| Coating Diameter (Single Fiber) | 0.2 mm to 0.4 mm |
| Coating Removal Length | 25 mm ~ 35 mm |
| Battery Life | Approximately 10 hours |
| Operating Temperature | 0 °C to 40 °C |
| Dimensions | 125W × 48D × 41H mm |
| Weight | 260 g |
Frequently Asked Questions
What is the maximum fiber count this stripper can handle?
This unit is designed for ribbons up to 16 fibers.
Are fiber holders included?
No, fiber holders are not included with the unit.
What is the charge time for the battery?
The battery charges in approximately 2.5 hours while the unit is in the off position.
Can I use this for non-rollable ribbon fiber?
Yes, it is designed for exceptional stripping of both single and ribbon fibers.
Does the unit operate while plugged into AC power?
Yes, the unit supports both battery and AC power operation.
