Overview

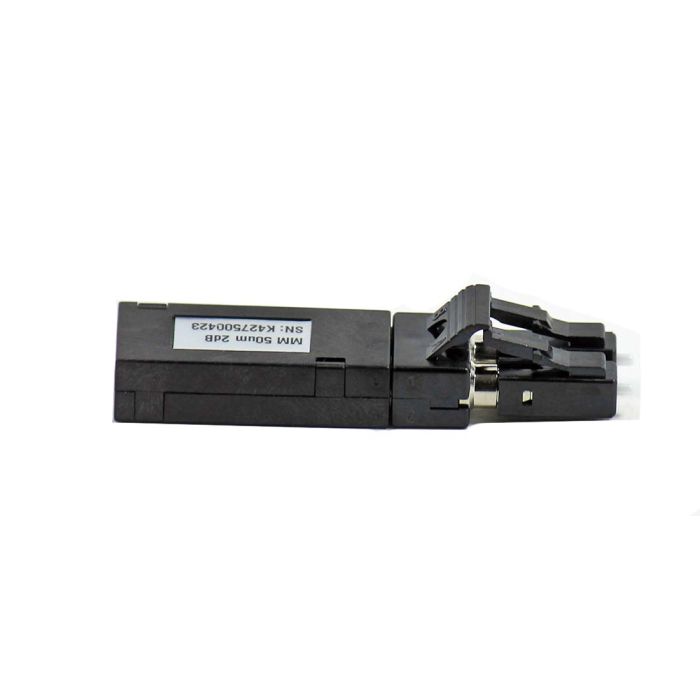

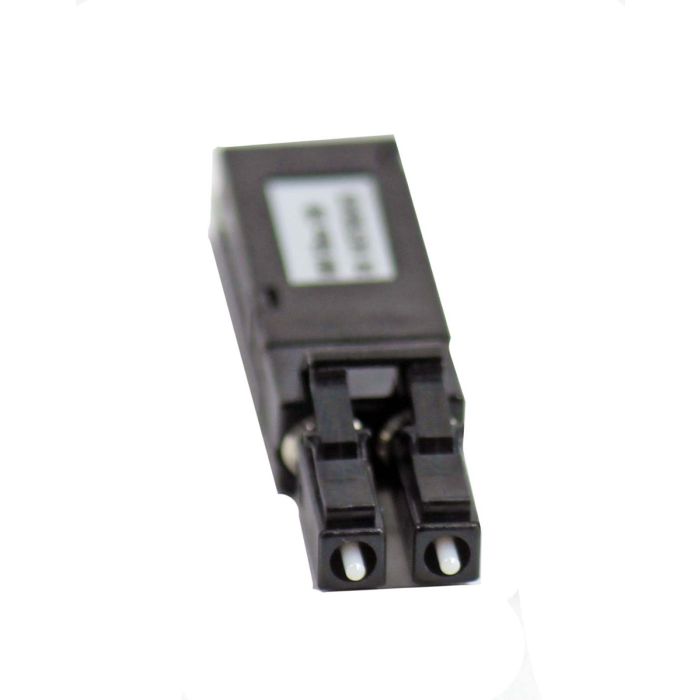

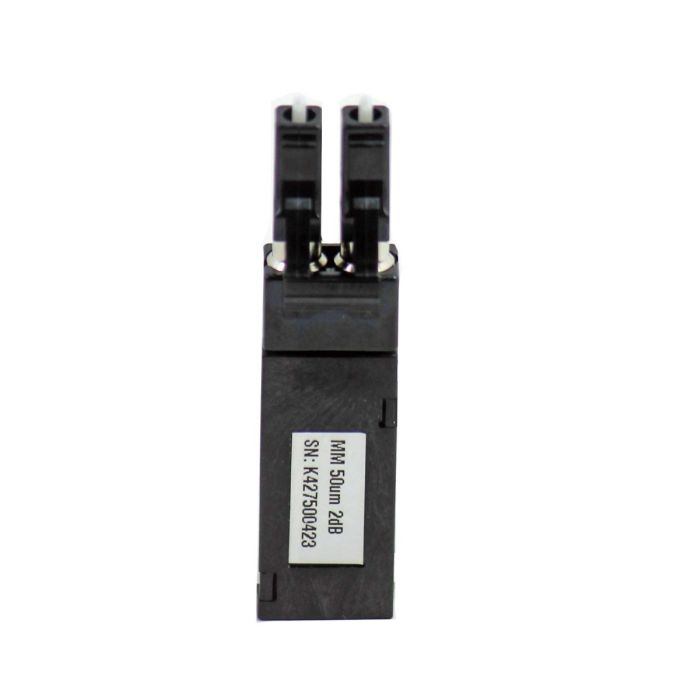

The LC Multimode 50/125μm Fiber Optic Loopback Module is a precision-engineered tool designed for testing and diagnostic applications in fiber optic network environments. It serves as an essential device for system test engineers and technicians to verify the transmission capability and receiver sensitivity of active fiber optic equipment, such as switches, routers, and transceivers.
Constructed to provide a reliable signal return path, this module features a compact design with two LC connectors. By connecting one end to the output port and the other to the input port of the target device, users can perform rapid loopback testing. This is particularly useful for burn-in testing of boards, equipment qualification, and ongoing maintenance to ensure signal integrity across the local area network.
Key Features
-
Testing Utility
Facilitates quick transmission and reception verification for active fiber network equipment. -
Standard LC Interface
Compatible with standard LC port configurations commonly found in high-density data center hardware. -
Multimode Performance
Optimized for 50/125μm fiber applications, ensuring accurate testing for standard OM2/OM3/OM4 environments. -
Burn-in Application
Ideal for long-term stress testing of boards and network interfaces. -
Plug-and-Play Design
Simple dual-connector design allows for immediate installation and testing without complex setups. -
Diagnostic Efficiency
Reduces troubleshooting time by enabling rapid isolation of port-level connectivity issues.
Applications
- Fiber optic network equipment testing
- Receiver sensitivity verification
- Burn-in testing for networking hardware
- Data center link diagnostics
- Engineering and development labs
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F1LCLB50A |
| Connector Type | LC |
| Fiber Type | Multimode |
| Core/Cladding Size | 50/125μm |
Frequently Asked Questions
What is the primary use of this loopback module?
It is designed to test the transmit and receive functionality of fiber optic equipment, such as transceivers and network interface cards.
Can I use this with singlemode equipment?
No, this specific module is optimized for 50/125μm multimode fiber and will not provide accurate results for singlemode systems.
Is this suitable for burn-in testing?
Yes, the module is constructed to be robust enough for use during the burn-in stage of networking hardware boards and equipment.
How do I connect the module?
Simply plug one connector into the equipment's transmit port and the other into the receive port to complete the fiber circuit.
Does this module require any external power?
No, it is a passive fiber optic component and does not require power.
