Overview

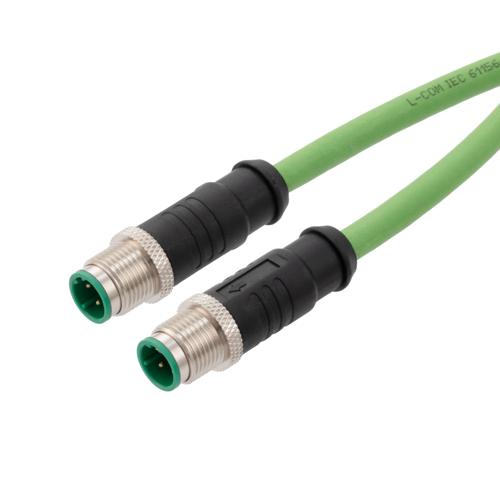

The TRG501-P2N-05M is a premium-grade, high-flex Category 5e Ethernet cable assembly engineered for demanding industrial, outdoor, and continuous motion environments. Featuring a 0.5-meter length and a robust twisted pair construction, this cable is designed to provide reliable data transmission at speeds up to 100 MHz.
Constructed with a double-shielded (braid + foil) SF/UTP design, this assembly ensures superior protection against EMI/RFI interference. The cable utilizes a halogen-free polyurethane (PUR) outer jacket that is oil and UV-resistant, making it suitable for long-term outdoor deployment. With a drag-chain-ready rating and testing up to 2 million flex cycles, this cable is built for heavy-duty factory automation and industrial control applications.
Downloads
Key Features
-
IP67 Rated Connectors
Features a threaded M12 locking mechanism that provides a sealed connection resistant to dust and water, ensuring system reliability in harsh environments. -
High-Flex Durability
Drag-chain ready and flex-tested to 2 million cycles, preventing premature failure in continuous motion industrial machinery. -
Double Shielded Protection
Equipped with combined braid and foil (SF/UTP) shielding to maintain signal integrity by mitigating electromagnetic and radio frequency interference. -
Industrial-Grade Jacket
Constructed with halogen-free PUR that resists damage from oil and UV exposure for longevity in outdoor or factory floor settings. -
D-Code Connectivity
Utilizes industry-standard M12 4-position D-code connectors, ensuring compatibility with standard Industrial Ethernet, EtherCat, and Profinet devices. -
Standardized Burn Rating
Carries a CMX burn rating, confirming compliance with necessary safety standards for industrial facility installations.
Applications
- Industrial Ethernet, EtherCat, and Profinet networks
- I/O connectivity
- Industrial control and factory automation
- Sensors and actuators
- Test equipment
Technical Specifications
| Specification | Value |
|---|---|
| Cable Length | 0.5 Meter (19.68 inches) |
| Connector A | M12 4-Position D-code Male |
| Connector B | M12 4-Position D-code Male |
| Shielding | SF/UTP (Braid + Foil) |
| Gauge | 22 AWG |
| Jacket Material | Halogen-Free Polyurethane (PUR) |
| Jacket Diameter | 0.244 inches |
| Rating | IP67 (mated), CMX |
| Operating Temp | -25°C to 85°C |
| Flex Cycles | 2 Million |
| Bandwidth | 100 MHz |
Frequently Asked Questions
What is the purpose of the D-code designation?
The D-code defines the connector configuration for 100 Mbps Industrial Ethernet applications, ensuring proper pin alignment for network devices.
Is this cable suitable for direct sunlight exposure?
Yes, the halogen-free PUR jacket is UV-resistant and designed for outdoor industrial environments.
Does this cable support drag chain motion?
Yes, it is rated for continuous motion and flex-tested up to 2 million cycles.
How do I ensure the IP67 seal is effective?
The IP67 rating is achieved when the M12 connectors are properly mated and tightened to their designated torque.
Can this cable be used with Profinet systems?
Yes, the D-code design is compatible with Profinet, EtherCat, and general Industrial Ethernet standards.
