Corning Cable Systems Splice Tray for Holding 6 Heat-Shrink Fusion Splice Sleeves - Type 2R
Move your mouse over image or click to enlarge

Corning Cable Systems Splice Tray for Holding 6 Heat-Shrink Fusion Splice Sleeves - Type 2R

Corning Cable Systems Part No.: M67-068

  • $ 65.50 or

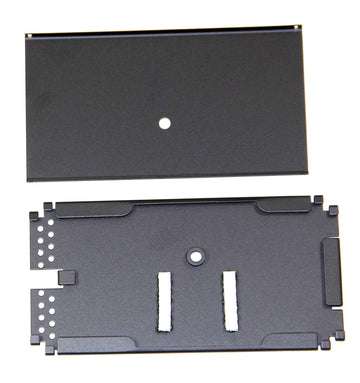

This Corning Cable Systems M67-068 Type 2R metallic splice tray is designed for use with CCS interconnection hardware and splice closures. It is designed to hold 6 heat-shrink fusion splice sleeves and consists of a rugged aluminum base and cover.
This tray has crimpable metal tabs that provide buffer tube strain-relief. Additional strain-relief points are available for securing buffer tubes or pigtails to the trays using cable ties.
Features:

  • Craft-friendly design
  • Used for multimode or single-mode systems
  • Black powder coating for ease of fiber identification and protection
  • Comes standard with aluminum top
  • No stress placed on completed splices within tray
  • Accepts six 60 mm single-fiber heat-shrink fusion splice protection sleeves
  • Size: 7.3(L) x 3.5(W) x 0.2(D) inch

Applications:

  • For use with Corning Cable Systems indoor or outdoor splice hardware
  • Protects and manages fibers and fiber splices
  • Used at field splice, transition splice, and end splice locations

Product Sheet:
