Managed 1x 10/100/1000Base-T RJ45 to 1x 100/1000Base-X SFP Slot Gigabit Ethernet Media Converter, American Plug Standard
Managed 1x 10/100/1000Base-T RJ45 to 1x 100/1000Base-X SFP Slot Gigabit Ethernet Media Converter, American Plug Standard

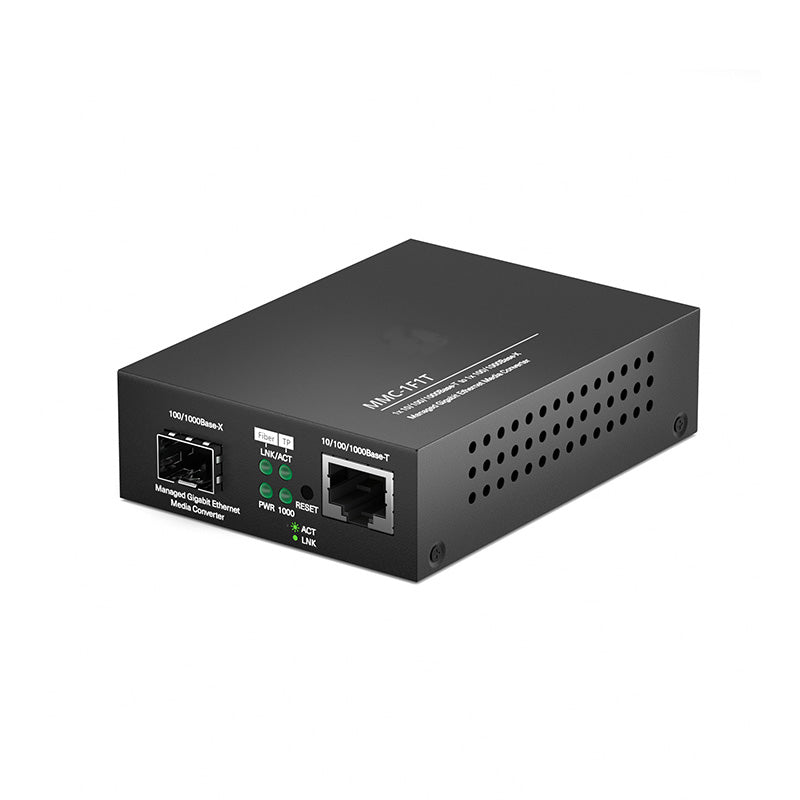

The MMC-1F1T Gigabit Ethernet Media Converter bridges 1000BASE-SX/LX fiber to 10/100/1000Base-T copper networks, enabling fiber extensions up to 550M (Multimode) or 120KM (Single Mode/WDM) via SFP modules. Its integration of Link Fault Pass-through (LFP) technology promotes efficient network maintenance and reduces downtime.
With options for desk, wall, or chassis installation, the MMC-1F1T is a versatile solution for ISP networks and small office environments.
It also supports remote management via an intuitive web interface, command-line interface (CLI), and the SNMP protocol, enabling efficient monitoring and configuration of the converter from any location.
Specifications

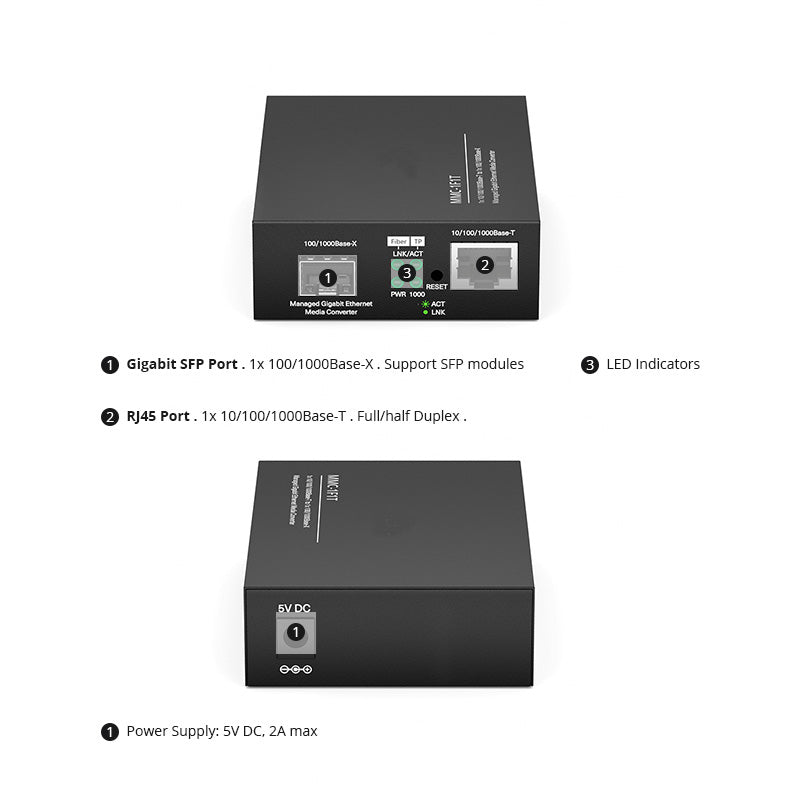

- Ports: 1x 10/100/1000Base-T RJ45 (Auto MDI/MDIX); 1x 100/1000Base-X SFP
- Standards and Protocols: IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE; 802.1Q, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.3ah
- Cable Type (Fiber): Multimode 50/125um, 62.5/125μm; Single-mode 9/125μm
- Cable Type (Copper): UTP Cat 5, 5e, 6 Cable (Maximum 100m); EIA/TIA-568 100Ω STP (Maximum 100m)
- LED Indicators: PWR, TP LINK/ACT, 1000, Fiber LINK/ACT

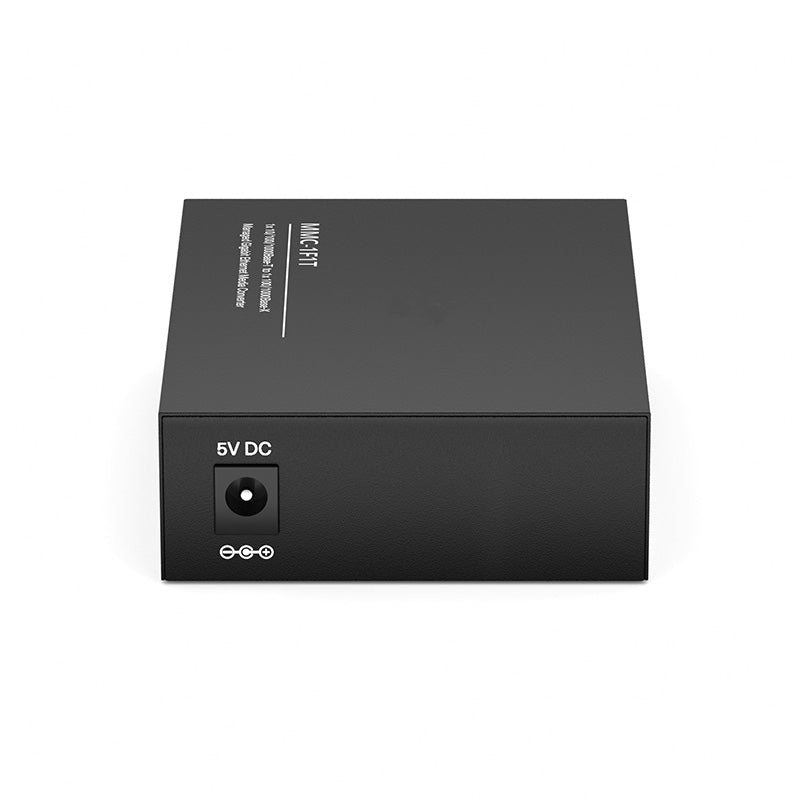

- Input Power: DC 5V, 2A
- Power Consumption: 3.4W
- Jumbo Frame: 16K
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -10°C to 70°C
- Operation Mode: 10/100Mbps for Half/Full duplex; 1000Mbps for Full Duplex
- Dimensions (HxWxD): 1.02"x2.76"x3.7"(26x70x94mm)
Product Highlights
- Supports Auto-negotiation for Speed and Duplex Mode
- Supports Auto-MDI/MDIX, Plug and Play
- Supports flexible connectivity with optical modules, up to 120km
- Advanced Features: LFP (Link Fault Pass Through)
- Support WEB UI/SNMP/Telnet/SSH Management
Connectivity Solutions
Gigabit Auto-Negotiation Fiber to Ethernet Media Converter
1x 100/1000Base-X SFP port and 1x 10/100/1000Base-T RJ45 port extend communication distance with high performance of data transmission.
Convert and Extend Signals Within Your Ethernet Network
The Converter extends links over greater distances with fiber optic cable, making it perfect for IT professionals and secure setups in government, business, or educational applications.
Simple & Quick Operation
The hot-swappable design makes these converters easy to install and troubleshoot for newbies, which allows simple communication with other devices.
LFP Alarm Link Failure Within a Short Period of Time
With the LFP (link fault pass through) function, system administrators are able to notice the link failure within a short period of time, minimizing the loss caused by this problem.
Equipped with Web and SNMP Management Interfaces
With its built-in Web-based management interface, MMC-1F1T offers an easy-to-use, platform-independent management and configuration facility.
