Manual Fiber Cleaver with Clip for Ø125 µm Cladding Fiber

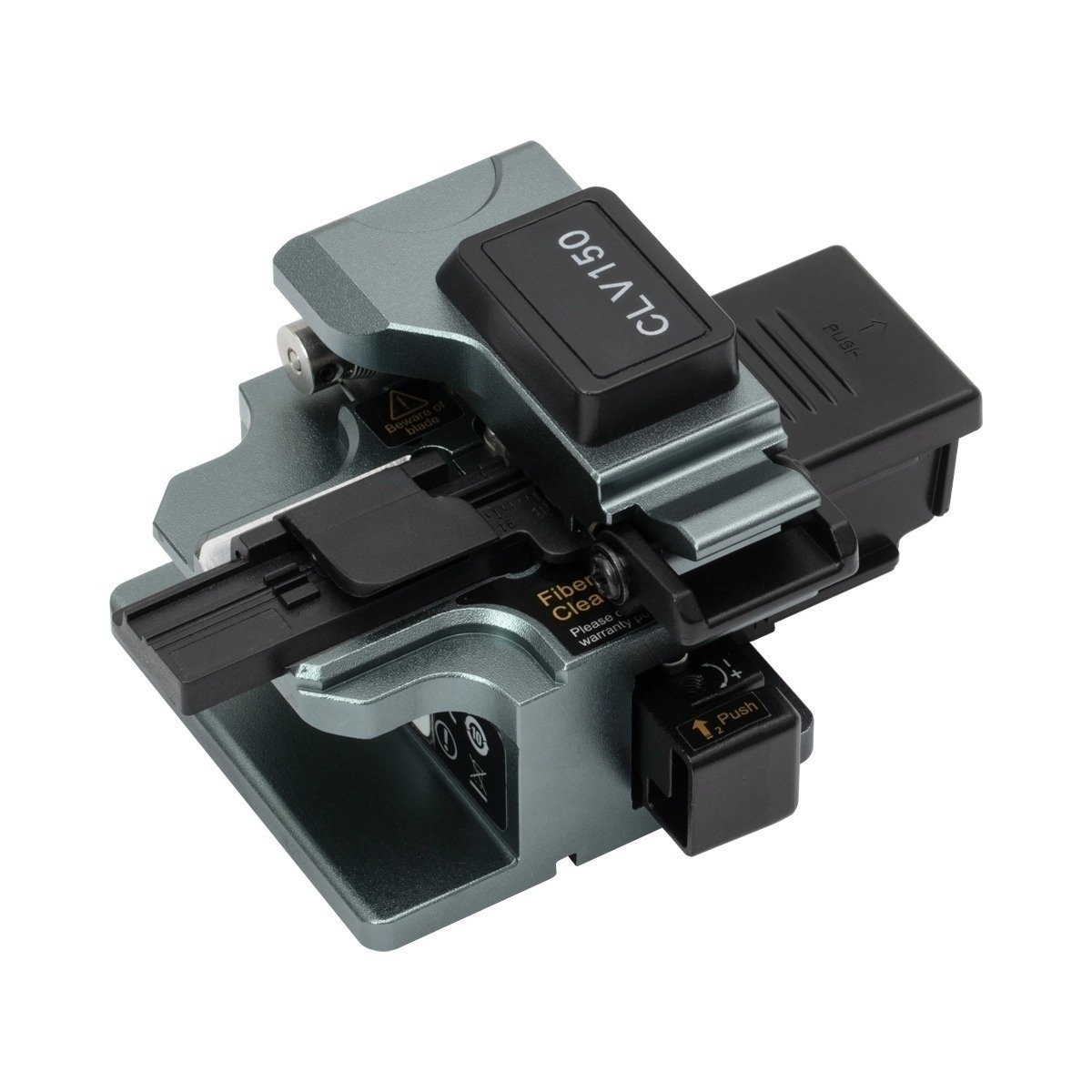

The CLV150 is a high-precision standalone fiber cleaver designed for accurate and reliable performance. It is equipped with a universal fiber holder compatible with Ø250 µm, Ø900 µm, and Ø3.0 mm fiber ribbon cables. The device features a user-friendly two-step operation and an automatic blade return mechanism that resets the blade when the lid is lifted after a cleave.
Key Features
-
Precision Cleaving: Engineered for high-accuracy fiber processing.
-
Universal Compatibility: Supports a wide range of fiber diameters and ribbon cables.
-
Two-Step Operation: Simplifies the cleaving process for efficient workflow.
-
Automatic Blade Return: Enhances safety and readiness by resetting the blade position automatically.
-
Integrated Waste Collection: Includes a waste bin to promptly and safely dispose of cleaved fiber remnants.
-
Long-Life Blade: Features a circular blade with a lifetime of 48,000 cleaves (2,000 per labeled position).
Technical Specifications
| Feature | Specification |
|---|---|
| Compatible Cladding | 125 µm |
| Compatible Coating | 250 µm, 900 µm, and Ø3.0 mm Ribbon |
| Cleave Angle | 0° ± 0.5° |
| Cleave Length | 7 – 16 mm |
| Dimensions | 94.4 mm × 69.3 mm × 54.6 mm |
| Mass | 300 g |
Maintenance and Adjustments
The unit is designed for durability and ease of maintenance. The circular blade can be rotated to access new, unused cutting edges using the engraved marker positions. While the blade height is factory-set for optimal performance, it can be adjusted if necessary using the included 1.5 mm hex wrench. Daily cleaning of the fiber holder clip, blade, and rubber pads with isopropyl alcohol is recommended to maintain optimal cleave quality.
