Overview
This MDU (Multi-Dwelling Unit) drop cable is a ruggedized, high-performance solution designed for building-to-building or building-to-home fiber extensions. It is engineered with premium Corning ClearCurve LBL (Laser-Beam-Loss) singlemode fiber, which provides exceptional bend-insensitivity for installations in tight spaces or challenging architectural environments.
The cable features a robust black polyethylene jacket, making it suitable for both indoor and outdoor deployments. It comes pre-terminated with SC/APC connectors for reliable, low-reflectance connections and includes a mini pulling eye kit to facilitate smooth installation through conduits and tight passages. This assembly is hand-spooled, ensuring high-quality handling and protection during transit.
Key Features
-
Corning ClearCurve LBL Fiber
Features advanced bend-insensitive technology for high signal integrity in tight-radius routing. -
Factory Pre-Terminated
Comes with SC/APC connectors to eliminate field termination time and improve connection consistency. -

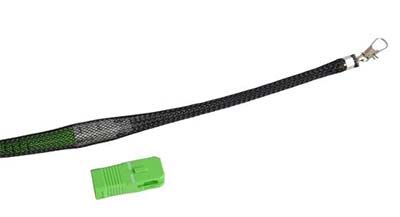

Integrated Pulling Eye
Includes a mini pulling eye kit for easier, safer cable installation through conduits. -
Rugged Polyethylene Jacket
Provides protection against moisture and environmental stress in outdoor or MDU environments. -
Hand Spooled
Carefully managed spooling process helps maintain fiber integrity and prevents kinking before use. -
Singlemode Performance
Optimized for long-distance data transmission and FTTX network deployments.
Applications
- MDU (Multi-Dwelling Unit) fiber drops
- FTTH (Fiber to the Home) last-mile installations
- Building entrance and riser environments
- Narrow conduit and challenging tight-bend installations
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Part Number | ZMDUL-1-YA-YA-125-MPE-HS |
| Fiber Type | Singlemode (Corning ClearCurve LBL) |
| Connector Type | SC/APC to SC/APC |
| Cable Length | 125 feet |
| Jacket Material | Polyethylene (Black) |
Frequently Asked Questions
What does the Mini Pulling Eye Kit include?
The kit includes a durable attachment designed to protect the connectors and allow the cable to be pulled through conduits safely.
Is this cable suitable for direct burial?
While the polyethylene jacket is robust, please check your local codes; it is primarily designed for MDU drops and conduit pulls.
Why is ClearCurve fiber used?
ClearCurve LBL fiber is specifically designed to minimize signal loss in applications where fiber must be bent around tight corners or architectural features.
Are the SC/APC connectors compatible with standard SC/UPC adapters?
No, SC/APC (Angled Physical Contact) connectors are not compatible with SC/UPC (Ultra Physical Contact) adapters due to the angle of the ferrule.
What is the benefit of the hand-spooled configuration?
Hand-spooling ensures the cable is not subject to high-speed machine tensioning, reducing the risk of microscopic stress on the fiber.
