Overview
This MDU (Multi-Dwelling Unit) drop cable assembly is designed for high-density residential and commercial fiber deployments. It features singlemode fiber optimized for tight-bend environments, ensuring robust signal integrity in challenging installation paths such as hallway conduits or molding.
Equipped with a factory-installed mini pulling eye kit, this assembly simplifies the routing process through narrow conduits and building passages. The ruggedized polyethylene jacket provides protection against environmental elements, while the high-performance SC/APC connectors ensure minimal signal loss and back-reflection. Each unit is hand-spooled and prepared for immediate deployment.
Key Features
-
Corning ClearCurve LBL Fiber
Utilizes advanced bend-insensitive fiber technology to maintain signal integrity in tight routing scenarios. -

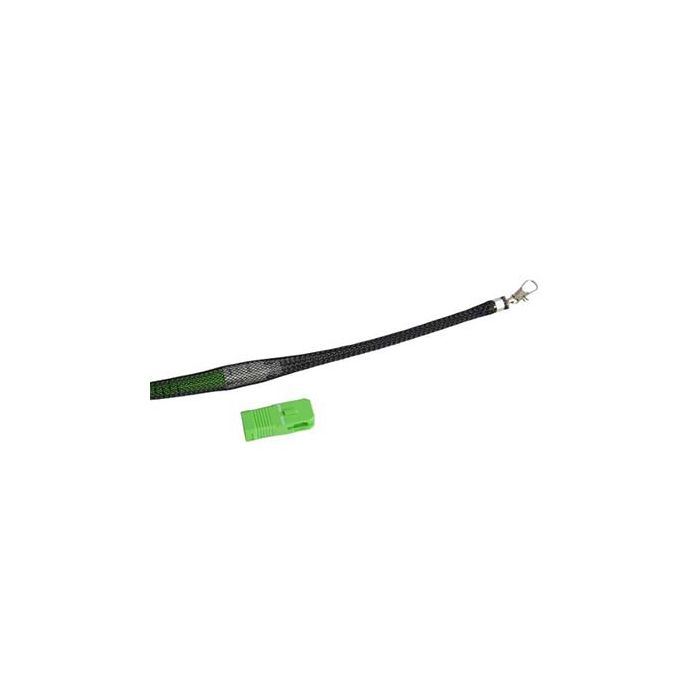

Mini Pulling Eye Kit
Includes a pre-attached pulling mechanism to facilitate effortless installation through building conduits. -
SC/APC Connectivity
Features factory-terminated SC/APC connectors on both ends for low-reflectance, high-quality connections. -
Polyethylene Jacket
Constructed with a durable black polyethylene outer sheath for protection in indoor and outdoor environments. -
Singlemode Performance
Optimized for long-distance, high-bandwidth communication and FTTH network applications. -
Hand-Spooled
Ensures the cable is coiled securely to prevent tangles and kinking before installation.
Applications
- Multi-Dwelling Unit (MDU) fiber distribution
- Fiber-to-the-Home (FTTH) drop segments
- High-density building cabling
- Narrow conduit and molding routing
Technical Specifications
| Specification | Value |
|---|---|
| Cable Length | 75 feet |
| Connector A | SC/APC |
| Connector B | SC/APC |
| Fiber Type | Singlemode (Corning ClearCurve LBL) |
| Jacket Material | Polyethylene (Black) |
| Included Accessories | Mini Pulling Eye Kit |
Frequently Asked Questions
Is this cable suitable for outdoor use?
Yes, the polyethylene jacket is designed for durability in various environments, including indoor/outdoor MDU drops.
What type of fiber is used?
This assembly features Corning ClearCurve LBL bend-insensitive singlemode fiber.
Can the pulling eye be removed?
The pulling eye is provided to assist in installation and can be removed once the cable is in place.
Is the length customizable?
This specific SKU is provided at a fixed length of 75 feet as hand-spooled.
What is the connector polish?
This cable uses APC (Angled Physical Contact) connectors, which minimize return loss for sensitive applications.
