Overview
The MDU Drop Cable is an engineered fiber optic solution designed for Multi-Dwelling Unit (MDU) connectivity. This assembly features high-performance Corning ClearCurve LBL fiber, which provides enhanced macrobend resistance to facilitate installation in tight spaces common in residential and commercial buildings.
This drop cable is terminated with SC/APC connectors on both ends to ensure low-reflectance performance and comes equipped with a factory-installed mini pulling eye kit. The polyethylene (PE) jacket provides robust protection for the indoor/outdoor environment, while the 175-foot length, provided as a hand-spooled unit, offers convenience for rapid deployment by field technicians.
Key Features
-
Corning ClearCurve LBL Fiber
Features industry-standard bend-insensitive glass that maintains signal integrity in tight radius bends. -
SC/APC Connectors
Angled Physical Contact polish reduces back-reflection, essential for high-bandwidth FTTx applications. -

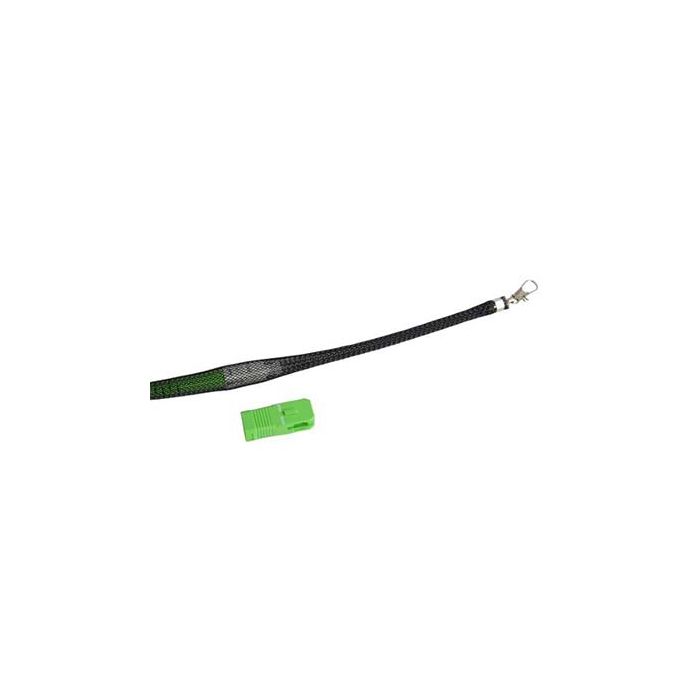

Mini Pulling Eye Kit
Integrated pulling eye allows for safe cable installation through conduits without damaging the fiber or connectors. -
Polyethylene Jacket
Durable outer material protects the internal fiber from environmental factors and physical wear. -
Factory Terminated
Ensures high-quality, repeatable optical performance compared to field-spliced connections. -
Ready-to-Deploy Spool
Hand-spooled 175-foot length simplifies handling and reduces deployment time for technicians.
Applications
- Multi-Dwelling Unit (MDU) fiber distribution
- Fiber-to-the-Home (FTTH) drop connections
- Indoor and outdoor riser installations
- High-density residential and commercial network drops
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Type | Singlemode (Corning ClearCurve LBL) |
| Connector Type | SC/APC to SC/APC |
| Cable Length | 175 feet |
| Jacket Material | Polyethylene (PE) |
| Jacket Color | White |
| Pulling Mechanism | Mini Pulling Eye Kit |
| Delivery Format | Hand Spooled |
Frequently Asked Questions
What is the purpose of the pulling eye?
The mini pulling eye allows the technician to pull the cable through conduit without putting stress on the connectors or the fiber itself.
Can this cable be used outdoors?
Yes, the polyethylene jacket is designed to withstand typical outdoor environmental conditions in MDU drop applications.
What is the benefit of ClearCurve fiber?
ClearCurve fiber is specifically engineered to be bend-insensitive, which prevents signal loss when the cable is routed around sharp corners or tight building infrastructure.
Are these connectors APC?
Yes, the SC/APC connectors provide a high return loss necessary for sensitive optical networking applications.
Is this a single fiber cable?
Yes, this is an MDU drop cable assembly containing standard singlemode fiber.
