Overview
The MDU Drop Cable is a high-performance, singlemode fiber optic assembly designed specifically for Multi-Dwelling Unit (MDU) environments. Utilizing Corning® ClearCurve® LBL (Low Bend Loss) fiber, this cable provides exceptional performance in tight-buffered applications where bending or routing in confined spaces is required.
This assembly comes pre-terminated with SC/APC connectors on both ends and includes a mini pulling eye kit for simplified installation through conduit or narrow pathways. The rugged white polyethylene jacket ensures durability for indoor/outdoor MDU deployments, providing a reliable and efficient connection from the demarcation point to the subscriber terminal.
Key Features
-
Corning® ClearCurve® LBL Fiber
Features advanced bend-insensitive technology for minimal signal degradation in tight routing conditions. -
Pre-Terminated SC/APC Connectors
Ensures consistent, low-loss connections and eliminates the need for field termination. -

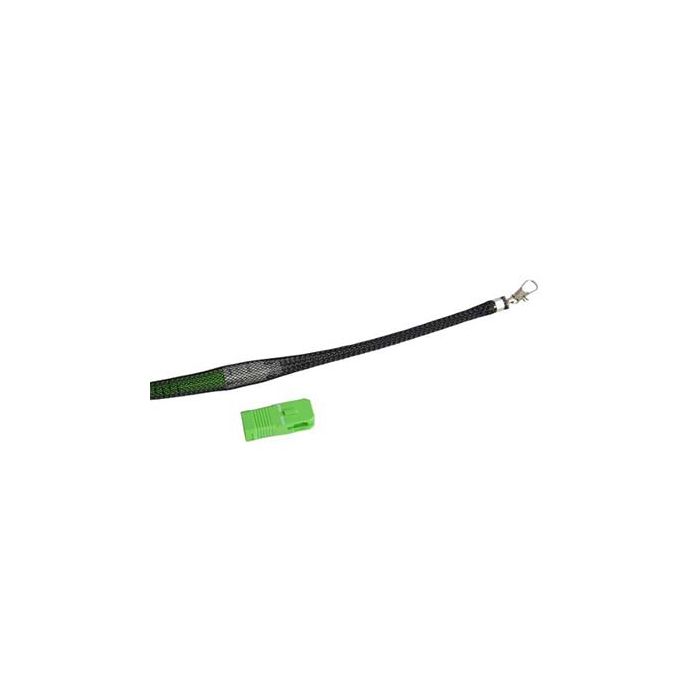

Mini Pulling Eye Kit
Includes a specialized tool to protect the connectors during installation through conduit. -
Polyethylene Jacket
Durable, white outer sheath suitable for both indoor and outdoor MDU environments. -
Hand-Spooled
Supplied in a 50-foot length for easy handling during local installation. -
Singlemode Performance
Optimized for long-reach, high-bandwidth FTTx applications.
Applications
- Multi-Dwelling Unit (MDU) fiber distribution
- FTTH subscriber drops
- Indoor/outdoor routing in tight conduits
- Demarcation to terminal connections
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Fiber Type | Singlemode (ClearCurve® LBL) |
| Cable Length | 50 feet |
| Connector A | SC/APC |
| Connector B | SC/APC |
| Jacket Material | Polyethylene |
| Jacket Color | White |
| Included Hardware | Mini Pulling Eye Kit |
Frequently Asked Questions
What is ClearCurve® LBL fiber?
ClearCurve® is a bend-insensitive singlemode fiber designed by Corning that maintains low signal loss even when the cable is routed through sharp corners or tight spaces.
Can this cable be used outdoors?
Yes, the polyethylene jacket is designed to withstand typical outdoor MDU installation environments.
What is the purpose of the pulling eye?
The mini pulling eye allows the technician to pull the cable through conduits or walls without damaging the SC/APC connectors at the ends.
Is this a patch cord or a drop cable?
This is a pre-terminated drop cable assembly designed for FTTx and MDU subscriber connectivity.
What connectors are installed?
The cable comes with SC/APC connectors factory-installed on both ends.
