Benchtop Fiber Optic Inspection Microscope with 10" LCD Monitor (BNC)

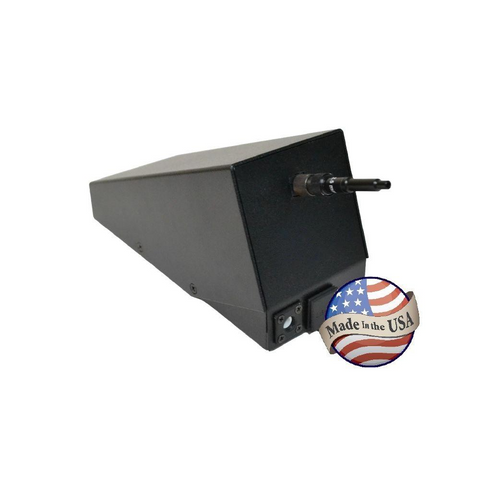

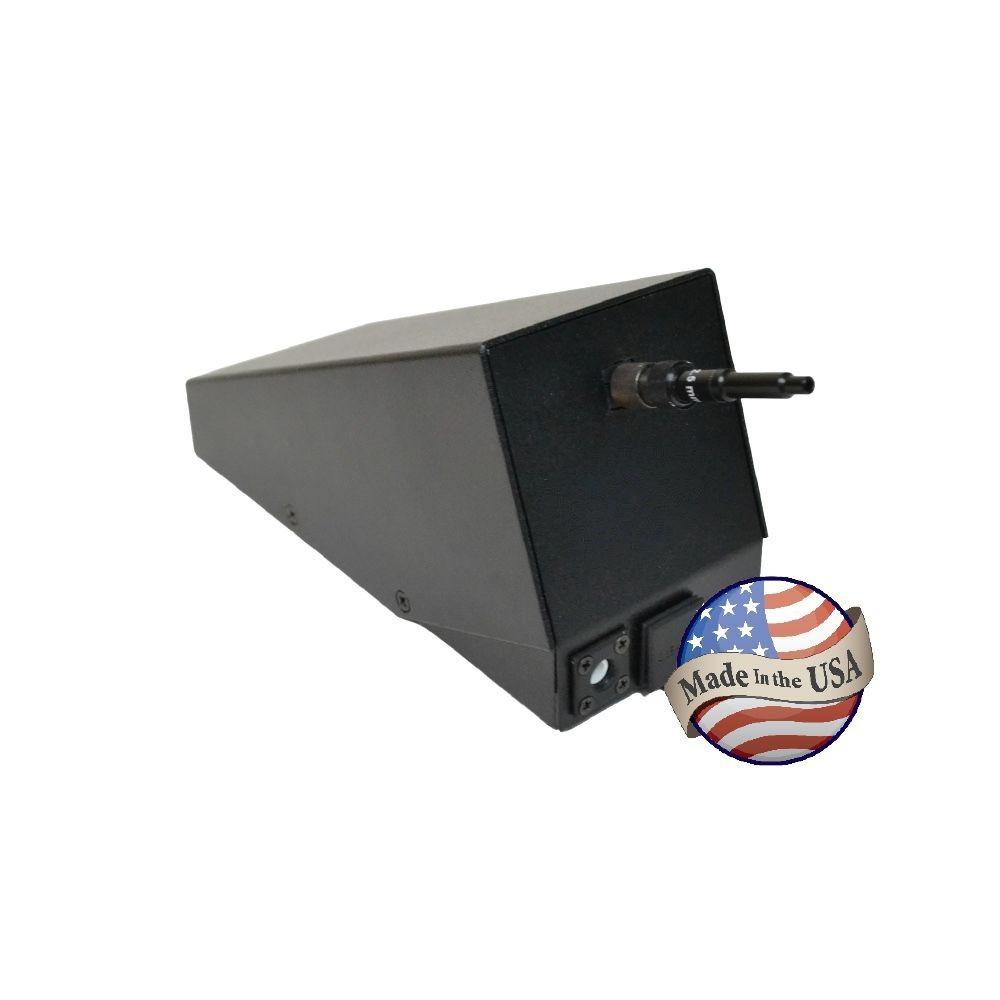

Built for precision and consistency, the BTS300BNC benchtop microscope delivers clear, repeatable inspection of fiber optic connector end faces in lab, production, and field environments. With integrated coaxial LED illumination and a bright white core light, it reveals critical defects such as scratches, contamination, cracks, and chips—helping you maintain strict quality standards with confidence.

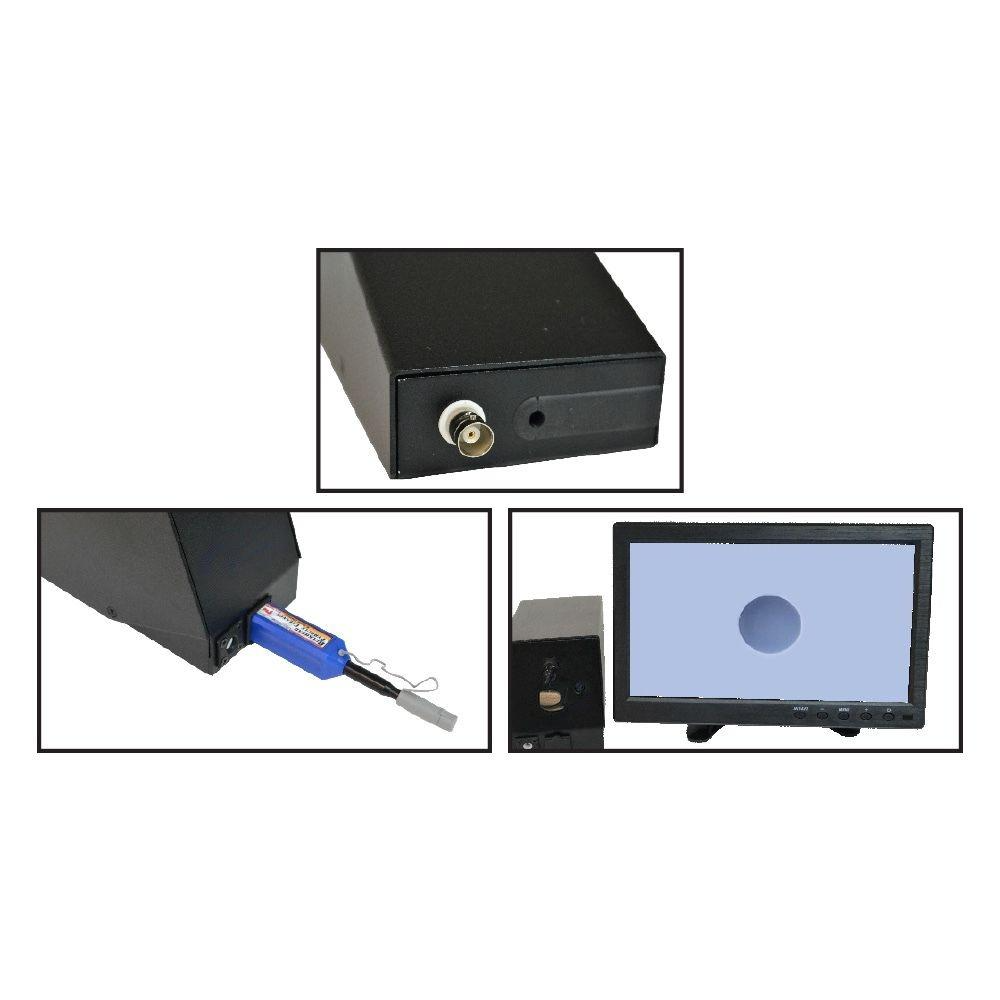

Designed for ease of use and flexibility, this system includes a 10" LCD tablet monitor with BNC connectivity, universal adapters for common connector types, and adjustable image centering for accurate alignment every time.

Key Features

• High-Resolution End-Face Inspection
  Clearly identify scratches, debris, cracks, and core defects with enhanced image clarity.

• Coaxial LED + Bright White Core Lighting
  Uniform illumination combined with dedicated core lighting ensures precise defect detection.

• 10" LCD Monitor with BNC Connection
  Standalone tablet-style display provides stable, real-time viewing without requiring a PC.

• Universal Connector Compatibility
  Includes 2.5 mm and 1.25 mm adapters for inspection of standard fiber connectors.

• Manual Focus with Fine Control
  Achieve sharp, detailed images with smooth and precise focusing adjustment.

• Adjustable Image Centering
  Easily align connector end faces for consistent and repeatable inspection results.

• Flexible System Options
  Available in USB version for direct connection to laptop or PC.

• Advanced Analysis Capability (OV350 Model)
  Supports image storage and automated pass/fail analysis for QA documentation.

• Easy Maintenance
  Includes connector cleaner for quick and effective inspection preparation.

Applications

• Fiber optic connector inspection (SC, FC, ST, LC, etc.)

• Production quality control

• Field service and maintenance

• Laboratory analysis and testing

Technical Specifications

• Model: F1-BTS300BNC

• Display: 10" LCD Tablet Monitor

• Video Output: BNC

• Lighting: Coaxial LED + Bright White Core Light

• Focus: Manual (fine adjustment)

• Adapters Included: 2.5 mm and 1.25 mm universal adapters

• Image Alignment: User-adjustable centering

• Connectivity Options:

  • BNC (this model)

  • USB version available (PC/laptop connection)

• Optional Software/Upgrade: OV350 (image capture + pass/fail analysis)

• Included Accessories: Connector cleaner
