Overview

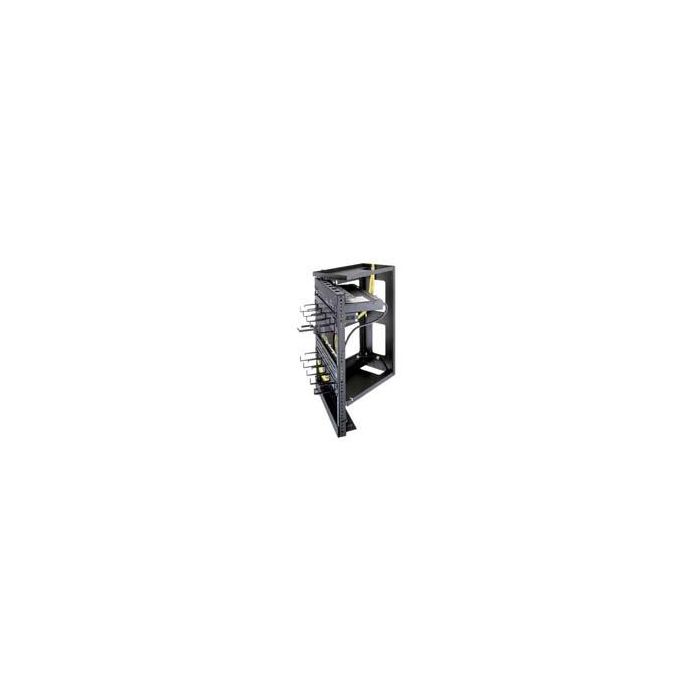

The Middle Atlantic Swing Frame Rack is an innovative, open-back wall mount solution designed for mounting 19-inch networking equipment such as patch panels, hubs, and switches. Its versatile design is ideal for installations over existing infrastructure, including conduit and telephone equipment, providing a secure and organized mounting point within closets or communication rooms.
Constructed from rugged steel with a durable black powder coat finish, this rack offers a 100lb weight capacity. The swing-out frame features pivot points that allow for an inverted left or right swing, providing a 90-degree opening with a positive stop for convenient access to equipment and cable terminations during punch-down.
Key Features
-
12RU Rack Capacity
Provides sufficient vertical space for high-density patch panel and switch deployments. -
Swing-Out Design
Features a 90-degree swing with a positive stop for easier access to the rear of mounted components. -
Inverted Mounting
Pivot points allow for both left or right side swing configurations to suit specific room layouts. -
Open-Back Frame
Maximizes available wall space and allows for seamless mounting over existing equipment or obstacles. -
Steel Construction
Built for industrial environments with high-durability steel and a powder-coated finish. -
High Load Capacity
Supports up to 100lbs, providing significant structural support for heavy networking equipment. -
Integrated Cable Management
Includes tie-down points and pass-throughs to facilitate organized cable routing.
Applications
- Telecommunications closets
- Secure data equipment rooms
- Network hub distribution
- Wall-mounted patch panel installations
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Middle Atlantic |
| Model | SFR1218 |
| Rack Units | 12RU |
| Mounting Width | 19 inches |
| Depth | 18.2 inches |
| Dimensions | 21 inch H x 19 inch W x 18.2 inch D |
| Construction Material | Steel |
| Finish | Black Powder Coat |
| Weight Capacity | 100 lbs |
Frequently Asked Questions
Can the rack be mounted to open to either the left or the right?
Yes, the rack design utilizes pivot points that allow it to be configured for either left or right-handed swing.
What is the maximum weight capacity?
The rack is rated for a 100lb load capacity.
Is the back of the rack open?
Yes, the open-back design is specifically intended to mount over existing wall obstacles like conduit or electrical boxes.
Does this unit come fully assembled?
It is designed to be ready to assemble and ships flat to optimize shipping costs.
What is the finish of the steel?
The unit features a rugged black powder coat finish.
