Overview

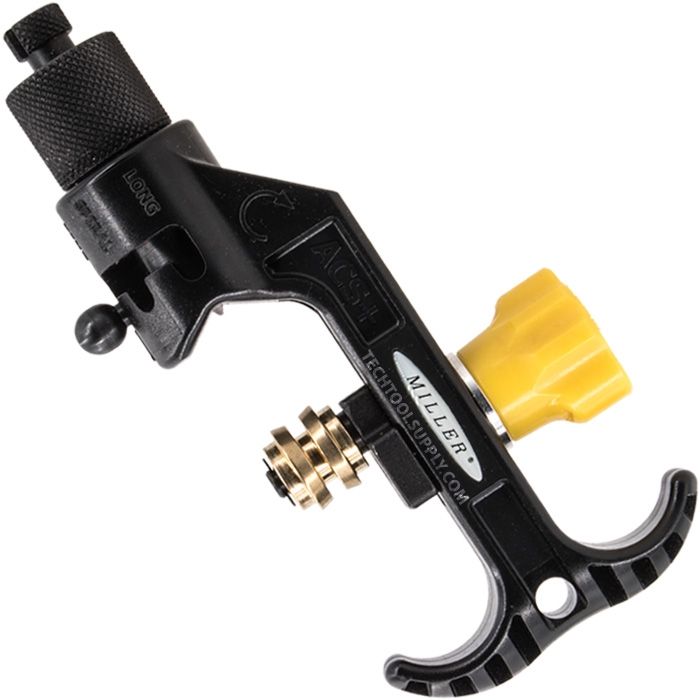

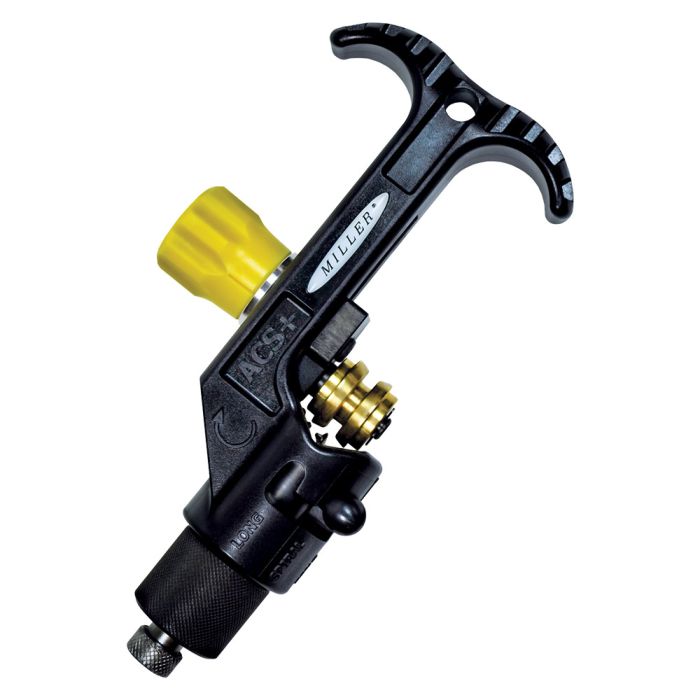

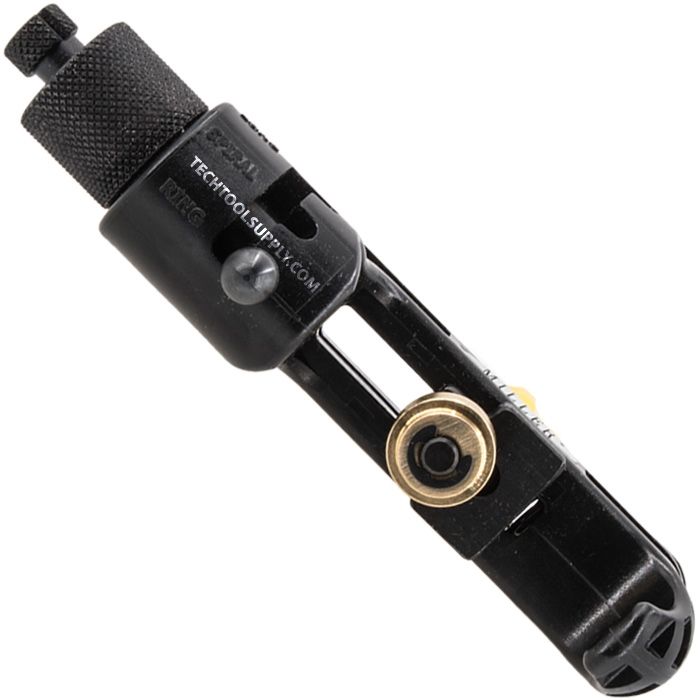

The Miller ACS+ Cable Slitter is a professional-grade mid-span and end-access tool designed for precision cable preparation. It is specifically engineered to handle armored fiber feeder, central tube, and stranded loose tube fiber optic cables, along with various non-fiber armored cables.
This tool features a durable construction that allows for efficient cutting through polyethylene jackets and corrugated copper, steel, or aluminum armor layers in a single, smooth operation. Its ergonomic design is optimized for field technicians working in outside plant environments, ensuring reliable performance and faster installation times.
Key Features
-
Versatile Cable Compatibility
Accommodates a wide range of cable diameters from 0.157" to 1.125" (4 to 28.6 mm) for use on various fiber optic and armored cables. -
Precision Cutting
Performs longitudinal, circumferential (ringing), and spiral cuts to provide flexible access methods for different installation requirements. -
Adjustable Blade Depth
Features a replaceable heavy-duty steel blade that is adjustable in 0.004" increments without needing additional tools. -
Ergonomic Design
Curved "T" handle design made of glass-reinforced, injection-molded material improves grip and provides superior leverage during operation. -
Spring-Loaded Mechanism
Includes a spring-loaded roller assembly with a tension adjustment knob to facilitate faster, more consistent cuts. -
Robust Build
Constructed with high-quality components to withstand rigorous daily use in the field.
Applications
- Mid-span fiber cable access
- End-access cable preparation
- Removal of polyethylene jackets
- Slitting of corrugated copper, steel, or aluminum armored cables
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Ripley |
| Model | ACS+ |
| Part Number | MB057000 |
| Cable Outer Diameter Range | 0.157" to 1.125" (4 mm to 28.6 mm) |
| Adjustable Blade Depth | Up to 0.22" (5.5 mm) |
| Cable Access Types | Mid-Span, End |
| Supported Cable Materials | Armored Corrugated Copper, Armored Steel, Armored Aluminum |
| Length | 5" (127 mm) |
| Weight | 10 oz (284 g) |
Frequently Asked Questions
What types of armor can this tool cut?
The Miller ACS+ is designed to cut through corrugated copper, steel, and aluminum armor layers.
Can I adjust the depth of the cut?
Yes, the heavy-duty steel blade is adjustable in 0.004" increments to prevent damage to the underlying fiber.
Does this tool perform ringing cuts?
Yes, it supports longitudinal, circumferential (ringing), and spiral cuts.
What is the maximum cable diameter it can handle?
The slitter accommodates cable outer diameters up to 1.125" (28.6 mm).
Are replacement blades available?
Yes, the blade is replaceable to maintain the longevity and performance of the tool.
