Overview

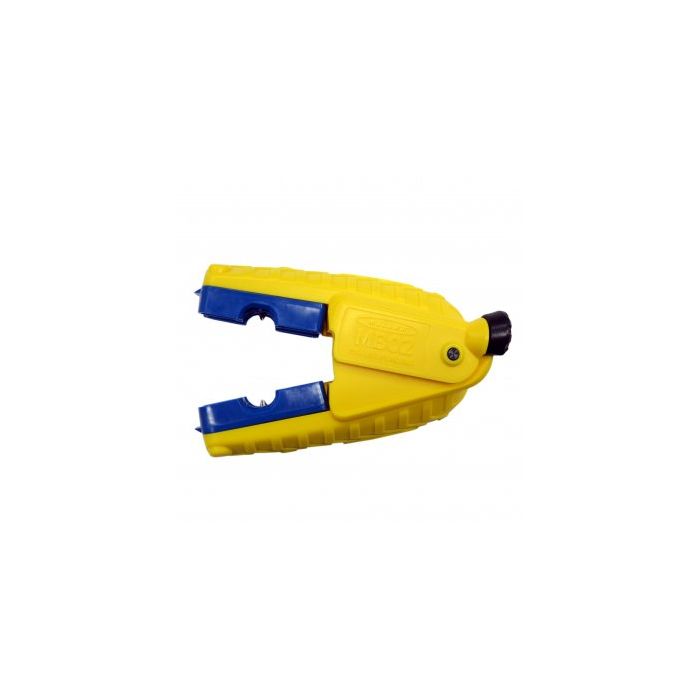

The Miller MB02-7001 is a comprehensive cable slitting kit designed for efficient midspan and end stripping of a wide variety of dielectric cables. It is engineered to perform precise ring and longitudinal cuts on cable diameters up to 0.79" (20 mm). This tool is an essential utility for field technicians working on ducted HD and thin-jacket fiber optic cables.
The kit features a modular tray design that allows for quick and accurate adjustments to blade depth and cable range. The tool is built with a spring-loaded mechanism and an ergonomic, compact chassis, providing a reliable and comfortable grip during operation. It includes a carrying pouch for organization and protection in the field.
Downloads
Key Features
-
Integrated Cutting Channels
Features both ring and longitudinal cutting channels to handle diverse stripping requirements. -
Interchangeable Trays
Modular tray design allows technicians to quickly swap between different cable ranges and blade depths. -
Magnetic Identification
Trays are color-coded and laser-marked to ensure accurate application and prevent errors. -
Precision Blades
Fixed, factory-set tool steel blades provide consistent performance without the need for manual adjustment. -
Spring-Loaded Mechanism
Ensures quick, repetitive slitting and ringing performance for faster cable preparation. -
Compact Ergonomics
Designed to fit comfortably in the hand, minimizing operator fatigue during extended use. -
Stowage Latch
Integrated latch secures the tool in the closed position when not in use for safe storage.
Applications
- Ducted HD cable
- Thin jacket cable
- Corning MiniXtend®
- Superior Essex Microlite OSP
- OFS MiDia® Micro
- AFL OSP
- Hexatronic Viper
- Sterlite Duct-Lite®
Package Contents
- MB02 All Purpose Cable Slitter Tool
- Blue Series Tray Insert Sets (0.4mm, 0.5mm, 0.6mm depths)
- Carrying Pouch
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Miller |
| Part Number | MB02-7001 |
| Max Cable Diameter | 0.79 inches (20 mm) |
| Included Tray Depths | 0.4mm, 0.5mm, 0.6mm |
| Tool Dimensions | 4.9 x 2.25 x 1.7 inches |
| Tool Weight | 4.8 oz (136 g) |
Frequently Asked Questions
Are the blades adjustable?
No, the precision ground tool steel blades are factory-set and do not require adjustment.
What is the maximum cable diameter this tool supports?
The tool is capable of accommodating cable diameters up to 0.79 inches (20 mm).
What does the kit include?
The kit includes the main slitter tool, a set of Blue Series tray inserts in 0.4mm, 0.5mm, and 0.6mm depths, and a convenient carrying pouch.
Can this tool perform both ring and longitudinal cuts?
Yes, the tool features integrated channels for both ring and longitudinal cutting.
Are the tray inserts color-coded?
Yes, the magnetic trays are color-coded and laser-marked for easy identification of depth and cable range.
