Overview

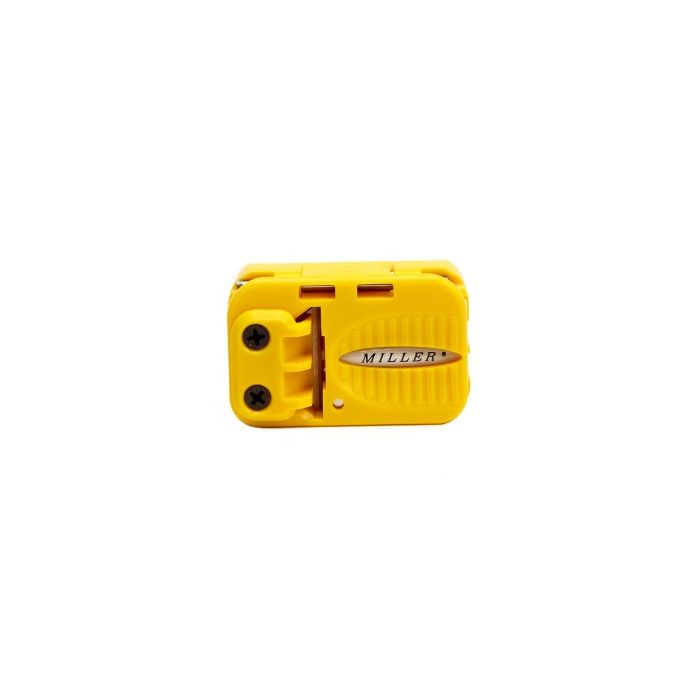

The Miller MSAT-X is a versatile precision tool designed for efficient mid-span and end-face jacket removal on a variety of fiber optic cables. Its primary purpose is to provide quick access to bare or buffered fibers within MDU and FTTx jacketed cables, streamlining the preparation process for technicians in the field.
Featuring a unique, patent-pending spring-loaded channel plate design, this tool enables the loading of cables ranging from 1.9 mm to 5 mm in diameter without requiring external sizing gauges. The tool includes dual cable channels that are color-coded for intuitive selection of deep or shallow cutting depths, ensuring consistent performance across different cable architectures.
The MSAT-X is constructed with a durable, ergonomic housing that fits comfortably in the hand, facilitating safe operation in both overhead and cabinet-based environments. Its factory-set blade depths eliminate the need for manual adjustments, reducing potential errors and preventing damage to the underlying fiber.
Key Features
-
Spring-Loaded Channel Plate
Patent-pending design automatically adjusts to secure cables for consistent cuts. -
Dual Cable Channels
Accommodates a wide range of cable diameters from 1.9 mm to 5 mm. -
Color-Coded Depth Channels
Allows for quick, visual identification of deep vs. shallow cutting paths. -
Factory-Set Blades
Pre-set cutting depths eliminate the need for manual tool calibration. -
Hinged Lid Design
Reliably and quickly locates cables for maximum efficiency during installation. -
Compact Ergonomic Form
Designed for comfortable, secure handling to minimize fatigue and risk of injury.
Applications
- MDU (Multi-Dwelling Unit) fiber cable access
- FTTx drop cable preparation
- Mid-span fiber access
- End-face cable jacket removal
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Miller |
| Part Number | MB107000 |
| Cable Diameter Range | 1.9 mm – 5.0 mm |
| Channel Type | Dual channel (Deep & Shallow) |
| Mechanism | Spring-loaded |
Frequently Asked Questions
What is the cable diameter range for the MSAT-X?
The tool is designed for cables ranging from 1.9 mm to 5.0 mm in diameter.
Does this tool require blade adjustments?
No, the blades are factory-set to the correct cutting depth and require no adjustments.
Can I use this for both mid-span and end-face access?
Yes, it is designed for both mid-span and end-face jacket removal.
Are the channels easy to identify?
Yes, the channels are color-coded to allow for easy identification of the different cutting depths.
Does this tool use a sizing gauge?
No, the patent-pending spring-loaded design removes the need for a sizing gauge.
