Overview
The Mini Armored 12-fiber cable is designed for environments requiring robust mechanical protection while maintaining a compact cable diameter of 7.5mm. This singlemode cable utilizes G.657.A2 fiber, which provides enhanced bend insensitivity, making it ideal for high-density routing and installations with tight bends.
Featuring a durable armored construction, this cable protects the internal fibers from crushing forces and physical damage. The LSZH (Low Smoke Zero Halogen) jacket ensures compliance with safety standards for indoor applications, minimizing toxic emissions in the event of combustion.
Key Features
-
12-Fiber Singlemode Construction
Features high-capacity data transmission suitable for backbone or distribution links. -
G.657.A2 Fiber Type
Offers bend-insensitive characteristics for reduced signal loss in tight installation spaces. -

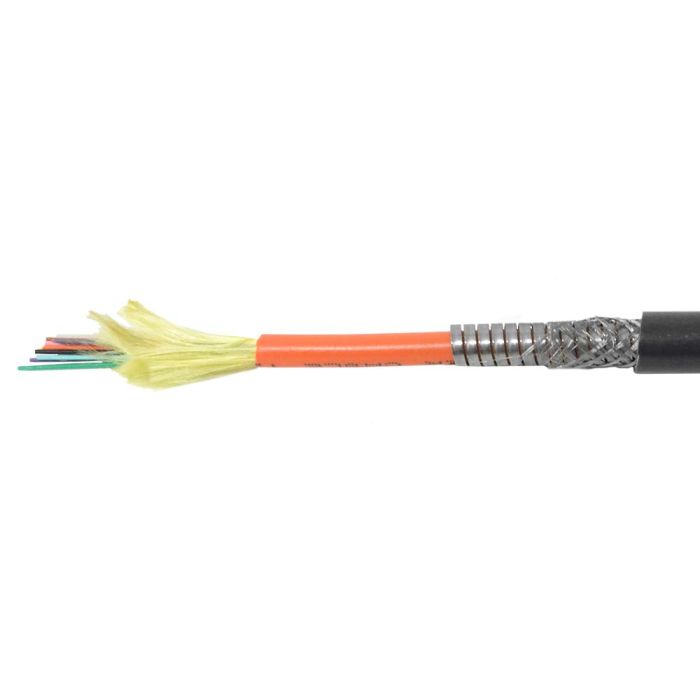

Mini Armored Design
Provides physical protection against rodents and mechanical stress while keeping a slim 7.5mm outer diameter. -
LSZH Jacket
Constructed with Low Smoke Zero Halogen material to meet stringent fire safety and building code requirements. -
Compact Diameter
The 7.5mm OD enables easier conduit installation and efficient space utilization in cabinets. -
Black Protective Outer Jacket
Provides environmental resistance and easy identification in cable management systems.
Applications
- Indoor/Outdoor premise distribution
- Data center inter-cabinet connectivity
- High-density fiber management systems
- Environments requiring rodent resistance
- Tight-space routing and conduit pulls
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Singlemode G.657.A2 |
| Cable Diameter | 7.5 mm |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Construction Type | Mini Armored |
| Color | Black |
Frequently Asked Questions
What does the G.657.A2 rating mean for this cable?
It indicates the fiber is bend-insensitive, allowing it to maintain lower optical signal loss when subjected to tighter bend radii compared to standard G.652.D fiber.
Is this cable suitable for outdoor use?
The cable is designed with a protective armor and LSZH jacket, making it suitable for both indoor and certain indoor/outdoor environments; please consult local building codes regarding outdoor placement.
What is the diameter of the cable?
The outer diameter is 7.5mm.
Does this cable require special stripping tools?
Because of the armored construction, specialized armored cable slitters are recommended for safe jacket removal.
Can this be used for high-density environments?
Yes, the 12-fiber count combined with the compact 7.5mm diameter makes it well-suited for high-density rack and patch panel environments.
Downloads
