Overview

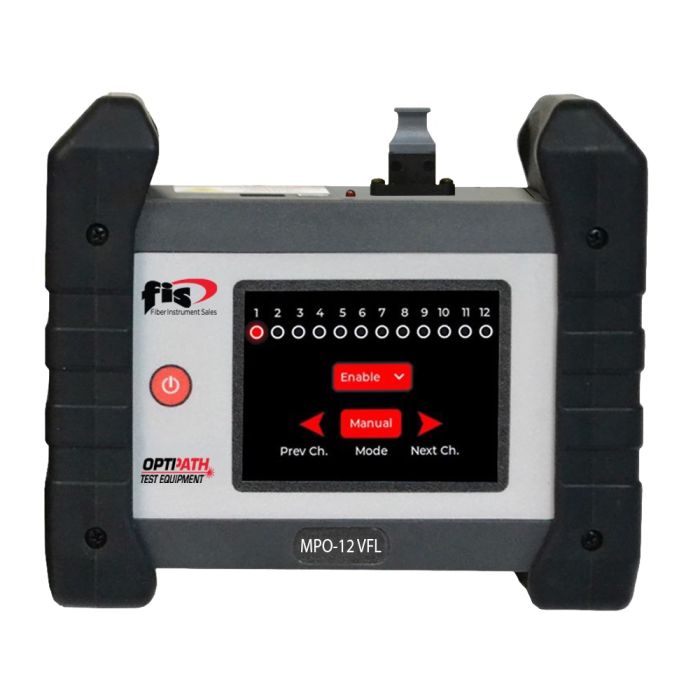

The MPO 12 Fiber VFL: OPTIPATH Test Equipment is designed for efficient and accurate MPO fiber verification. This versatile testing tool allows network technicians to identify fiber polarity and verify continuity across MPO systems. It supports both singlemode and multimode fiber, making it a critical instrument for field testing in data center and telecommunications environments.
Engineered for high performance, the unit features a bright 3.2” outdoor-enhanced touchscreen and a rugged, lightweight design suitable for demanding work environments. It is equipped with a self-closing shutter on the MPO adapter port for enhanced protection and offers extended operation with over 40 hours of battery life per full charge. This unit streamlines the testing process by providing clearly visible light across every fiber channel.
Key Features
-
Versatile Laser Modes
Offers multiple output sequences, including Auto Sequence, Manual Scan, and All On modes to suit various testing requirements. -
High-Visibility Display
Features a 3.2” outdoor-enhanced touchscreen display, providing clear readability even in dimly lit or high-glare environments. -
Extended Battery Life
Delivers over 40 hours of operation on a full charge, minimizing downtime during long field shifts. -
Rugged Port Protection
Equipped with a self-closing shutter on the MPO adapter port to protect the internal optics from dust and debris. -
Polarity Verification

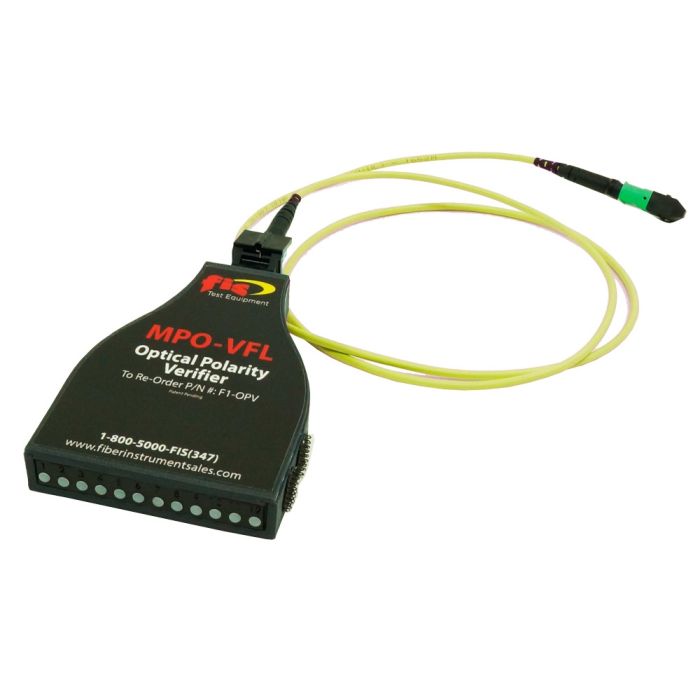

Includes a dedicated optical polarity verifier module for safe and accurate confirmation of MPO system polarities. -
Broad Compatibility
Designed to work seamlessly with both singlemode and multimode fiber types.
Applications
- MPO fiber optic system installation
- Fiber polarity verification
- Fiber optic cable continuity testing
- Data center cabling maintenance
Technical Specifications
| Specification | Value |
|---|---|
| Model | EZ-MPOVFL |
| Fiber Support | Singlemode and Multimode |
| Channel Configuration | 12-Channel |
| Wavelength | 650nm |
| Battery Life | 40+ Hours |
| Screen Size | 3.2" |
| Display Type | Outdoor Enhanced Touch Screen |
Frequently Asked Questions
Does this unit support 16-channel MPO cables?
This specific model is the 12-channel configuration; however, the series is available in 12 or 16-channel configurations.
Can I use this for both multimode and singlemode testing?
Yes, the device is fully compatible with both singlemode and multimode fiber types.
How long will the battery last on a single charge?
The device provides 40+ hours of operation time on a full charge.
Is the screen readable in bright sunlight?
Yes, it features a 3.2” outdoor-enhanced touchscreen specifically designed for clarity in various lighting conditions.
How is the MPO port protected when not in use?
The unit includes a self-closing shutter on the MPO adapter port to prevent damage and contamination.
