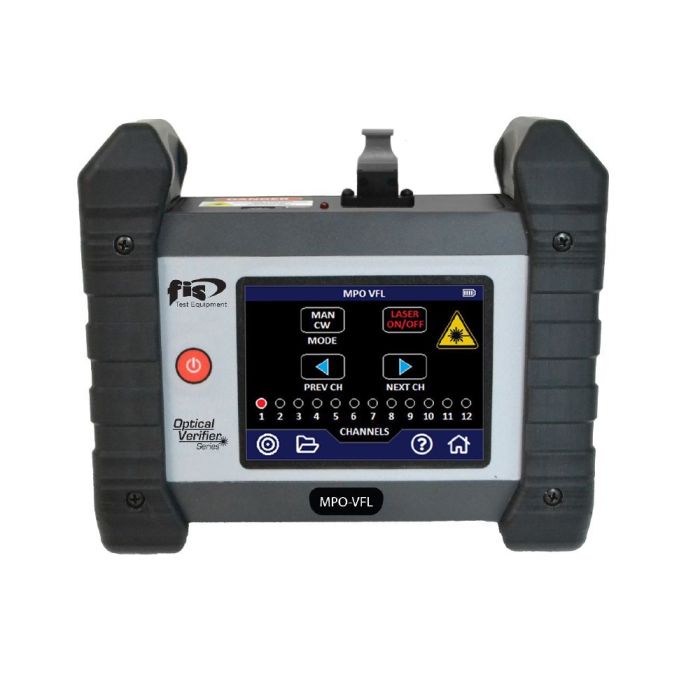

MPO-VFL Deluxe Kit with MPO Inspection Probe

Overview

The MPO-VFL Deluxe Kit is a comprehensive diagnostic solution designed for MPO optical system troubleshooting. It allows technicians to efficiently establish or confirm polarity, verify link continuity, and detect macrobends within MPO cable assemblies. By enabling rapid testing, it serves as an essential tool for both pre- and post-installation verification in high-density fiber networks.

Equipped with an integrated 4-inch outdoor-enhanced touch screen, this kit provides a user-friendly interface for operation in diverse lighting conditions, including dim areas. The system supports 12 or 16-channel configurations and is compatible with both singlemode and multimode fiber types. The kit also integrates software support for the included inspection scope to ensure connector cleanliness.

Key Features

• Multi-Sequence Laser Output
  Features both Auto Scan and Manual Scan modes to simplify the identification of fiber paths and faults.
• MPO Inspection Probe
  Includes an inspection scope with male and female MPO tips to verify connector end-face cleanliness.
• Outdoor-Enhanced Display
  Equipped with a 4-inch touch screen designed for visibility in various lighting environments.
• Extended Battery Life
  Offers up to 10 hours of operation on a single full charge for prolonged field use.
• Self-Closing Shutter
  Protects the MPO adapter port from dust and damage when not in use.
• Dual Fiber Compatibility
  Designed to function effectively with both singlemode and multimode optical systems.
• 650nm Visible Light
  Utilizes a 650nm light source for precise visual fault location and continuity testing.

Applications

• Polarity verification in MPO/MTP systems
• Continuity testing for MPO cable assemblies
• Detection of macrobends in optical fibers
• Connector end-face inspection
• Pre- and post-installation network troubleshooting

Technical Specifications

Frequently Asked Questions

Does this unit work with both singlemode and multimode fiber?
Yes, the MPO-VFL is compatible with both singlemode and multimode optical systems.

How long does the battery last?
The unit provides up to 10 hours of operation on a single full charge.

Can this kit verify polarity in MPO systems?
Yes, it is designed to establish and confirm polarity, continuity, and macrobends within an MPO system.

What is the screen size?
The unit features a 4-inch outdoor-enhanced touch screen.

Does this include inspection capabilities?
Yes, the kit includes an inspection scope with MPO tips to confirm connector cleanliness.

Downloads

• Product PDF
