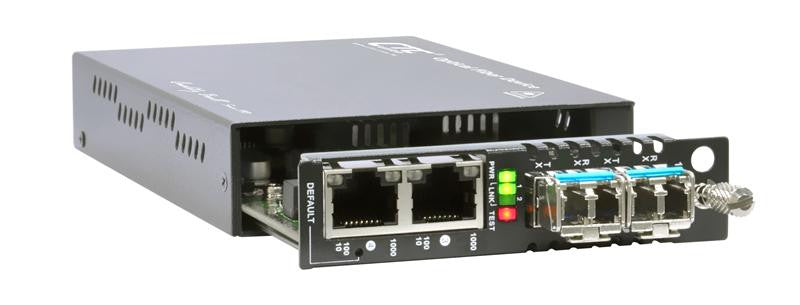

MSW-202 Gigabit Ethernet EDD switch (Ethernet Demarcation Device) for Metro Ethernet networks w/ full 802.3ah OAM support
The MSW-202 Ethernet Demarcation Device (EDD) is a 4 port Gigabit Ethernet switch designed for Metro Ethernet access applications and supporting OAM 802.3ah management features.
The converter has it's own IP address and can be directly managed and used as a DEMARC device. 802.3ah OAM management is supported.
Any 1000Base-SX/LX/LHX/ZX or WDM/CWDM SFP transceiver can be installed in the SFP slots of the MSW-202 converter.
VLAN settings can be performed to aggregate traffic into a 4 port Gigabit switch.
Unit supports web-based (own IP or chassis) and in-band management including powerful features like Bandwidth Limiting, Dying Gasp, Link-Loss-Forwarding, Remote-Monitoring-Status and Loop-Back-Test.
MSW-202 can accommodate any type of miniGBIC (SFP) optical modules 100 or 1000Base-X, either multi-mode, singlemode or single strand Bi-Directional type.
Unit is offering unparalleled flexibility and easy migration from short-haul to long haul fiber connections by simply changing the optical module interface.
The Gigabit copper interface has auto-negotiation and speed selection from 10 to 1000 Mbps.
Features:
- MEF 9, MEF 14: EPL and EVPL
- Support 8K MAC Spanning Tree 802.1D, 802.1s, 802.1w
- Support 802.1q / 256 active VLANs Double VLAN Tagging (C-tag/S-tag) (IEEE 802.1ad) support for ISP application
- Various QoS capability (MAC/port/802.1p/Diffserv) Port-based rate limiting
- DHCP Snooping
- IGMP Snooping
- IPv6 support
- 802.3x and 802.1x support
- Jumbo frame for up to 9.6K
- Extensive OAM-P support: 802.3ah OAM, 802.1ag & Y.1731, SNMP v1/v2c/v3, Telnet, Web GUI
Technical specifications
Interfaces: | Two RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T and two SFP slots for 802.3z 100/1000Base- SX/LX/ZX standards |
Connectors: | 2 x RJ-45 copper 10/100/1000 Mbps and 2 x SFP slot 100/1000Mbps |
UTP port: | MDI/MDI-X, auto-negotiation, Full/Half Duplex, max. packet 9.6Kbytes (Jumbo support) |
Optical slot: | Small Form Pluggable - supports Auto and Forced mode operation and dual rate 100 and 1000 Base-X operation |
Front LEDs: | FEF, Fiber Link 1, Fiber Link 2, ACT, Link 3, Link 4 |
Power: | External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug |
Temperature: | 0~50°C (Operating); -20~80°C (Storage) |
Humidity: | 10~90% non condensing (Operating); 0 90% (Storage) |
Consumption: | less than 4W |
Dimensions(WxDxH): | 85.6mm x 122.6mm x 20mm |
Weight: | 340g (without AC adapter) |
Compliance: | CE, FCC Class A |
MTBF: | 65,000 hours |
Additional information on MSW-202 EDD Gigabit switch: PDF Datasheet;
PDF Installation Manual.
