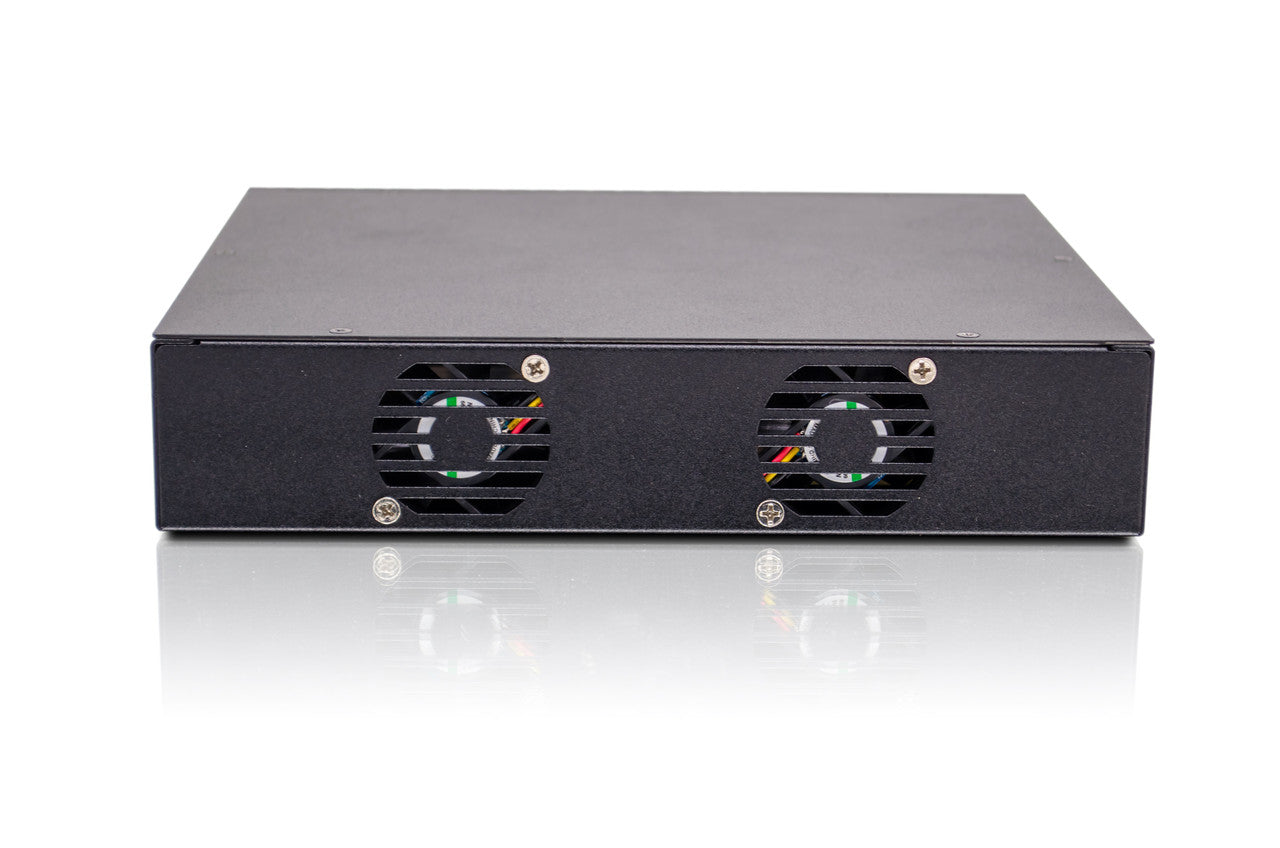

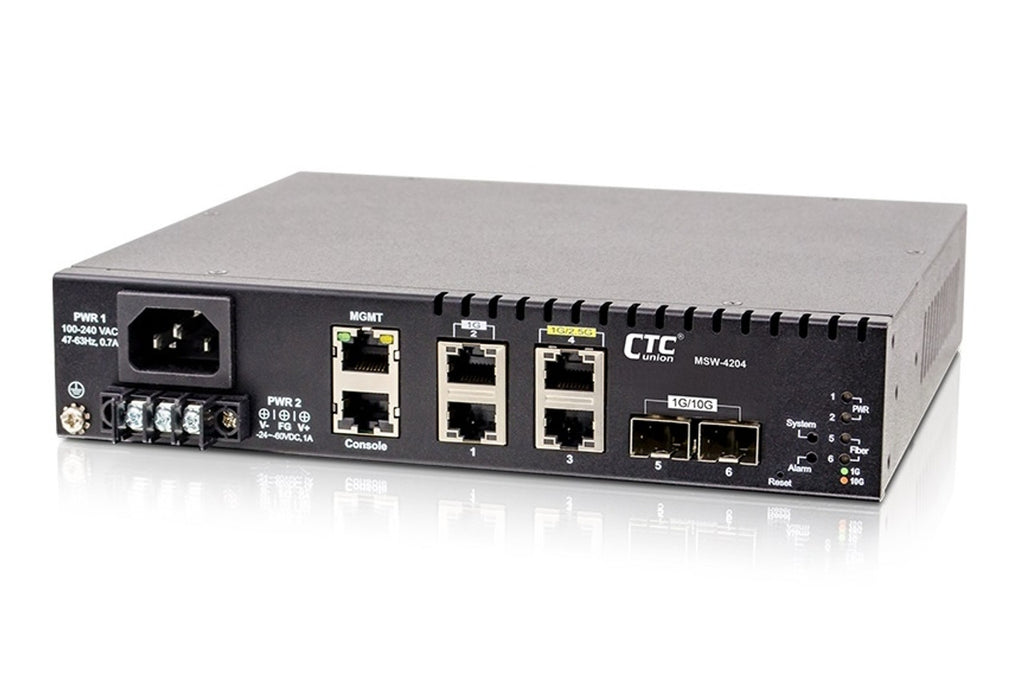

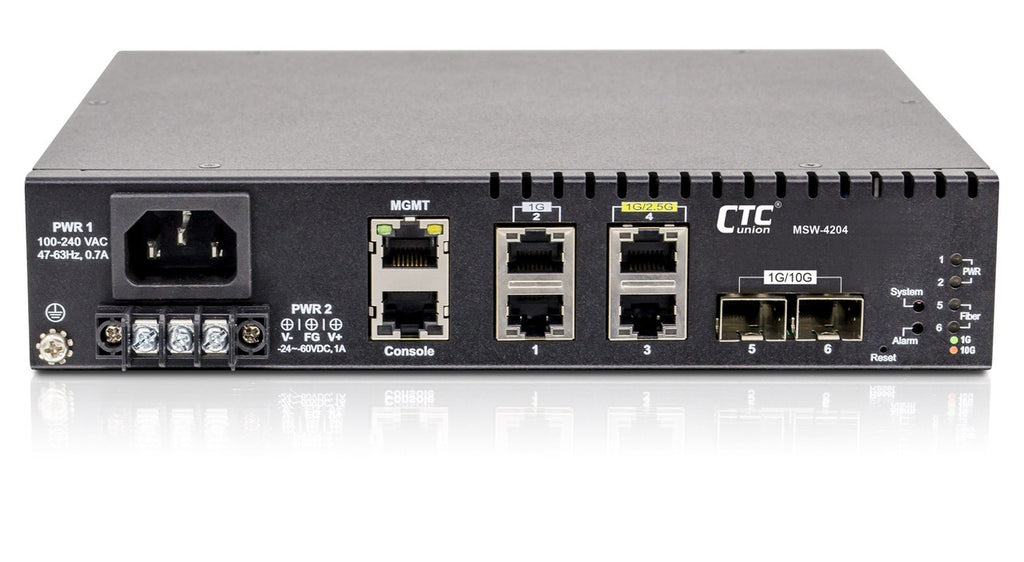

MSW-4204-AD 2x 10G SFP+ and 4x Gigabit RJ45 EDD switch (Ethernet Demarcation Device) for Metro Ethernet networks w/ full 802.3ah OAM support (NID), AC and DC power inputs
MSW-4204-AD 2x 10G SFP+ and 4x Gigabit RJ45 EDD switch (Ethernet Demarcation Device) for Metro Ethernet networks w/ full 802.3ah OAM support (NID), AC and DC power inputs
MSW-4204-AD 2x 10G SFP+ and 4x Gigabit RJ45 EDD switch (Ethernet Demarcation Device) for Metro Ethernet networks w/ full 802.3ah OAM support (NID), AC and DC power inputs
Roll over image to zoom in Click on image to zoom
MSW-4204-AD 2x 10G SFP+ and 4x Gigabit RJ45 EDD switch (Ethernet Demarcation Device) for Metro Ethernet networks w/ full 802.3ah OAM support (NID), AC and DC power inputsMSW-4204-AD 2x 10G SFP+ and 4x Gigabit RJ45 EDD switch (Ethernet Demarcation Device) for Metro Ethernet networks w/ full 802.3ah OAM support (NID), AC and DC power inputsMSW-4204-AD 2x 10G SFP+ and 4x Gigabit RJ45 EDD switch (Ethernet Demarcation Device) for Metro Ethernet networks w/ full 802.3ah OAM support (NID), AC and DC power inputs

MSW-4204-AD 2x 10G SFP+ and 4x Gigabit RJ45 EDD switch (Ethernet Demarcation Device) for Metro Ethernet networks w/ full 802.3ah OAM support (NID), AC and DC power inputs

CTC UnionSKU: MSW-4204-AD
Price:
$ 934.62
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

The next generation Carrier Ethernet Network Interface Device (NID) is designed for business class Ethernet connectivity. The MSW-4204 is equipped with 2 SFP+ slots, dual rate 1G/10Gbps and 4 ports Gigabit RJ45 network interfaces. It can be configured as either UNI or NNI device which are CE(Carrier Ethernet) 2.0 compliant for Metro Ethernet network deployments.

The MSW-4204 is positioned as an universal network interface device (NID) for most carrier Ethernet access applications. It has built-in hardware based Ethernet OAM engine and is compliant to the latest OAM standards to deliver the committed SLA performance KPIs measurement on a per service basis.

Highlights

  • MEF 9, MEF 14: EPL and EVPL
  • Support 16K MAC
  • Spanning Tree 802.1D, 802.1s, 802.1w
  • Support IEEE 802.1Q tagged VLAN (4K VLAN groups)IEEE 802.1ad QinQ VLAN, Voice VLAN; MAC based VLAN; Protocol based VLAN;
  • IP subnet based VLAN;Private VLAN for port isolation; VLAN translation;GVRP
  • Double VLAN Tagging (C-tag/S-tag) (IEEE 802.1ad)
  • support for ISP application
  • Various QoS capability (MAC/port/802.1p/Diffserv)
  • Port-based rate limiting
  • DHCP Snooping
  • IGMP Snooping
  • IPv6 support
  • 802.3x and 802.1x support
  • Jumbo frame for up to 10K
  • Extensive OAM support
    - IEEE 802.3ah
    - IEEE 802.1ag
    - ITU-T Y.1731
    - RFC2544
    - ITU-T Y.1564
  • SNMP v1/v2c/v3, Telnet, Web GUI

Technical specifications

Interfaces: Four RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T and two SFP+ slots for 802.3z 100/1000Base- SX/LX/ZX standards
Connectors: 4 x RJ-45 copper 10/100/1000 Mbps and 2 x SFP+ slot 1G/10G, DB9 RS232 serial console for management
UTP ports: MDI/MDI-X, auto-negotiation, Full/Half Duplex, max. packet 9.6Kbytes (Jumbo support)
Optical slot: Small Form Pluggable - supports Auto and Forced mode operation and dual rate 1G and 10G Base-X operation
Front LEDs: FEF, Fiber Link 1, Fiber Link 2, ACT, Link 3, Link 4
Power: Internal 90-260V AC switching power supply, 3 pin IEC connector C14, AC power cord C13 with US style main plug included in package; DC48V 3 screw block connector
Temperature: 0~50°C (Operating); -20~80°C (Storage)
Humidity: 10~90% non condensing (Operating); 0 90% (Storage)
Consumption: less than 20W
Dimensions(WxDxH): 215mm x 190mm x 44mm
Weight: 780g (without power cord)
Compliance: CE, FCC Class A
MTBF: 65,000 hours


Additional information on MSW-4204-AD EDD 10G/Gigabit switch: PDF Datasheet.
