Overview

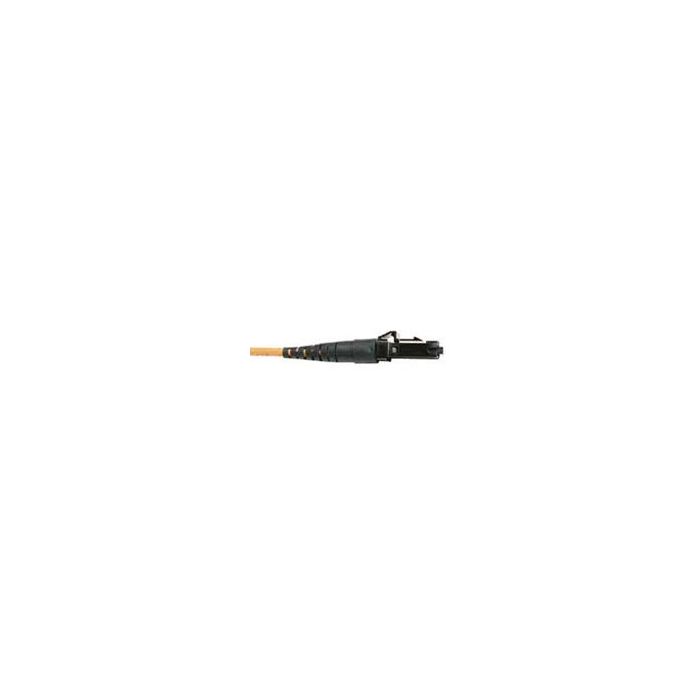

The MTRJ female multimode connector is a small form factor (SFF) duplex fiber optic connector designed for high-density applications. By utilizing a single plastic ferrule to house two optical fibers, this connector enables twice the port density compared to standard duplex SC connectors, making it an efficient choice for optimizing space in crowded patch panels and equipment racks.
This connector features a user-friendly design modeled after the familiar RJ-45 connection system, ensuring ease of use for technicians. It is suitable for a wide range of deployments, including backbone and horizontal cabling systems, local area networks (LANs), and various telecommunication environments.
Key Features
-
Small Form Factor
Offers twice the port density of duplex SC connectors to maximize space in high-density environments. -
Female Configuration
Designed without guide pins for specific mating compatibility in duplex network systems. -
RJ-45 Style Interface
Features a user-friendly connection mechanism similar to standard RJ-45 plugs for simplified installation. -
Duplex Capability
Single plastic ferrule houses two optical fibers, streamlining duplex fiber terminations. -
3.0mm Boot Included
Comes with a 3.0mm boot to provide proper cable strain relief and bend radius protection.
Applications
- Backbone cabling systems
- Horizontal cabling systems
- Local Area Networks (LAN)
- Telecommunication systems
- High-density fiber distribution
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | MTRJ Female (No Guide Pins) |
| Fiber Mode | Multimode |
| Form Factor | Small Form Factor (SFF) |
| Boot Size | 3.0mm |
Frequently Asked Questions
What does it mean that this is a female connector?
A female MTRJ connector does not have guide pins, which means it is designed to mate with male connectors that do contain guide pins to ensure proper alignment of the fibers.
Is this connector for singlemode or multimode fiber?
This specific model is designed for multimode fiber applications.
Why would I choose an MTRJ connector over an SC connector?
MTRJ connectors provide twice the port density of SC connectors, allowing you to fit more connections into the same amount of rack or panel space.
Is this connector easy to install?
Yes, it utilizes a user-friendly connection system that functions similarly to a standard RJ-45 plug.
What cable size is this boot designed for?
The connector includes a 3.0mm boot for standard fiber optic cable diameters.
