Overview

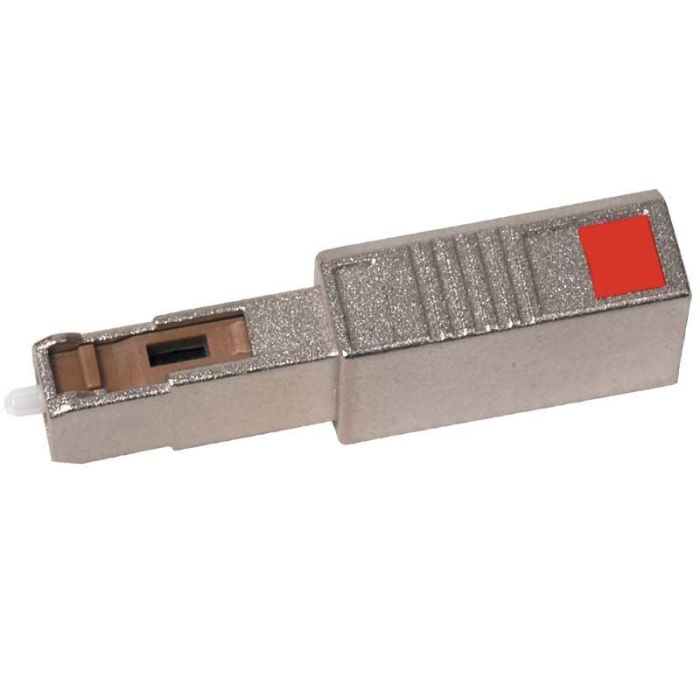

This male-to-female buildout attenuator is designed for use in singlemode fiber optic networks. It incorporates high-quality doped fiber, ensuring consistent performance at both 1310nm and 1550nm operating wavelengths. The compact, modular design allows for seamless integration into existing connections or patch panels without requiring additional cabling.
This attenuator is suitable for environments such as telecommunications and data centers where signal power needs to be precisely reduced to prevent receiver saturation. Its construction supports high-durability, long-term performance even under varied thermal and mechanical conditions.
Downloads
Key Features
-
Fixed Attenuation
Provides precise 9dB attenuation to manage optical power levels accurately. -
Doped Fiber Technology
Polarization-insensitive performance for reliable signal integrity in singlemode links. -
Compact Form Factor
Fits directly into existing patch panels and adapters for space-efficient installation. -
UPC Polish
Offers a high return loss of >55 dB for reduced back-reflection. -
Factory Tested
Each unit is 100% factory tested to ensure compliance with optical performance standards. -
High Durability
Rated for 500 mating cycles while maintaining stable attenuation.
Applications
- Telecommunication Networks
- CATV Networks
- Data Communications
- Local Area Networks
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F19521A09 |
| Connector Type | MU Male to Female |
| Attenuation | 9 dB |
| Fiber Type | Singlemode |
| Polish | UPC |
| Wavelength | 1310nm / 1550nm |
| Return Loss | >55 dB |
| Durability | 500 matings |
| Operating Temperature | -40°C to +80°C |
Frequently Asked Questions
What does the male-to-female design allow for?
The male-to-female buildout design allows the attenuator to be plugged directly into an existing adapter or patch panel port, effectively acting as an extension.
Is this attenuator compatible with both 1310nm and 1550nm?
Yes, it is designed for use in both standard singlemode operating windows.
What is the return loss rating?
This model features a UPC polish with a return loss of greater than 55 dB.
Can this be used in outdoor plant enclosures?
While primarily designed for patch panels, its operating temperature range (-40°C to +80°C) allows for use in controlled outdoor environments.
What is the durability of the connector?
It is rated for 500 mating cycles with minimal change in attenuation.
