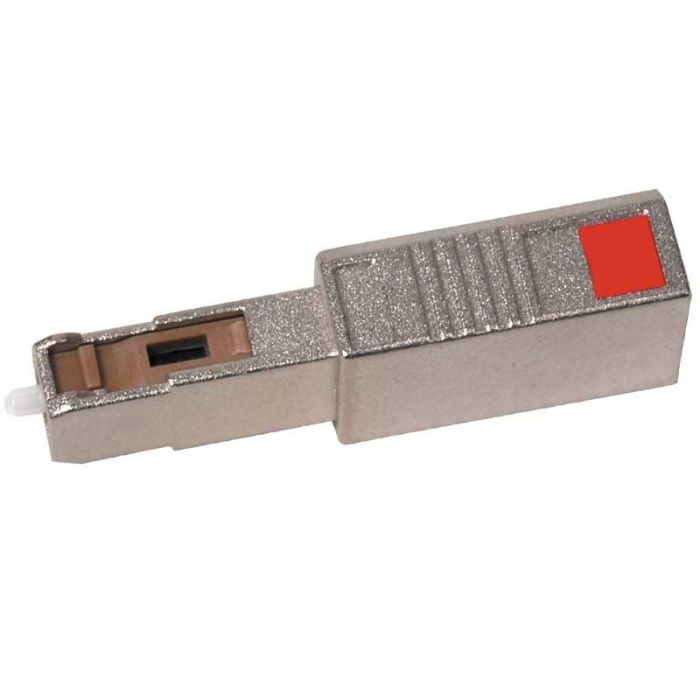

MU UPC Male-to-Female Singlemode 1310/1550nm Attenuator - 5dB

Overview

This MU UPC male-to-female buildout attenuator is designed for use in singlemode fiber optic systems. It utilizes high-quality doped fiber to provide reliable signal reduction, making it ideal for balancing power levels in telecommunication and data transmission circuits. Its compact design allows for direct integration into existing connections or patch panels without requiring additional space.

Suitable for both 1310nm and 1550nm operating wavelengths, this attenuator provides consistent performance for network engineers and contractors. The unit is polarization-insensitive and factory-tested to ensure adherence to signal integrity requirements in demanding operational environments.

Downloads

Key Features

• Doped Fiber Technology
  Ensures polarization-insensitive attenuation for stable optical performance across diverse network setups.
• Compact Buildout Design
  Allows for quick, space-saving installation directly into standard patch panels or equipment interfaces.
• Dual Wavelength Compatibility
  Optimized for both 1310nm and 1550nm wavelengths, offering versatility for various singlemode applications.
• Factory Tested
  100% factory-tested to verify optical performance and compliance before shipping.
• Durable Construction
  Tested to withstand 500 mating cycles and environmental stress including temperature and humidity cycling.
• Standardized Interface
  Designed for seamless integration with existing MU UPC infrastructure.

Applications

• Telecommunication Networks
• CATV Networks
• Data Communications
• Local Area Networks

Technical Specifications

Frequently Asked Questions

What does the "Male to Female" designation mean for this attenuator?
This means the device has a male connector plug on one end and a female adapter port on the other, allowing it to be inserted directly into a port or mated with a patch cord.

Is this attenuator suitable for both 1310nm and 1550nm?
Yes, it is designed for use in both 1310nm and 1550nm singlemode optical systems.

What is the tolerance of this 5dB attenuator?
The attenuation value has a tolerance of ±1.5 dB.

Does this use polished connectors?
Yes, this unit features a UPC (Ultra Physical Contact) polish, which provides a return loss greater than 55 dB.

Can this be used for multimode applications?
No, this attenuator is specifically designed for singlemode fiber optic systems.
