Overview

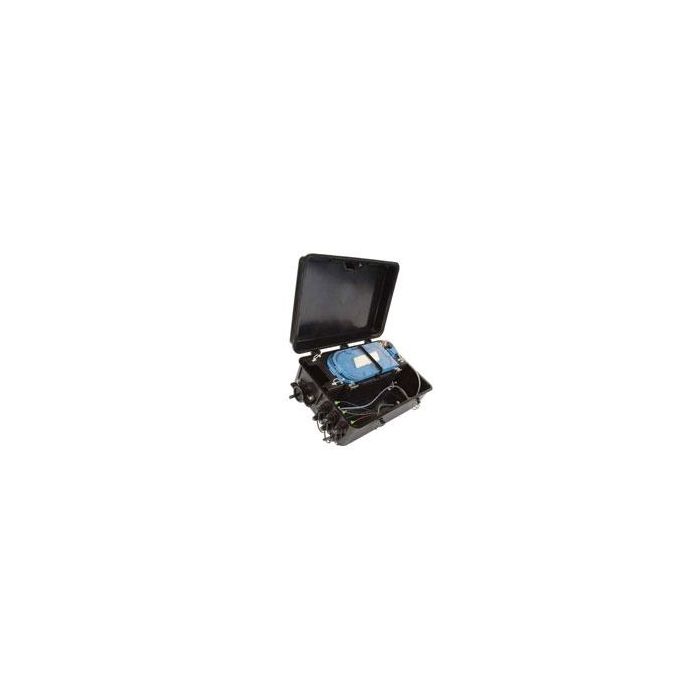

The Multilink Starfighter OTE (Optical Terminal Enclosure) is a specialized enclosure engineered to support the splicing and termination of optical drops in diverse outside plant environments. It is designed for aerial, pole, or wall-mount applications, providing a robust housing for fiber management.
This enclosure features an intuitive, tool-less cable sealing and retention system for rapid installation. Its cover design includes a secure latching mechanism that prevents accidental closing during active maintenance or installation tasks. The OTE is delivered fully kitted, streamlining the deployment process by reducing the need for additional parts or secondary kits.
Key Features
-
Multiport Cable Entry
Features a grommet configured with 6 holes specifically for .265-inch round drop cables to ensure organized cable management. -
Integrated Splice Tray
Includes one standard splice tray to facilitate organized fiber splicing and protection. -
Tool-Less Installation
Utilizes an easy-to-assemble cable sealing and retention system that eliminates the need for specialized tools. -
Safety Latch Design
The cover includes a latching mechanism to prevent it from closing inadvertently during installation activities. -
High Capacity Porting
Designed with 8 total entry ports to support various feeder, branch, and multi-port drop configurations. -
Compact Dimensions
Designed for efficient space utilization with an enclosure footprint of 18.5" x 11.5" x 6.0".
Applications
- Aerial installations
- Pole mount deployments
- Wall mount installations
- Fiber-to-the-Home (FTTH) drop terminations
Package Contents
- Multilink OTE Enclosure
- Grommet (6 holes for .265" round cable)
- 1" Fitting Insert
- (1) Splice Tray
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Multilink |
| Part Number | F1OTE6RND |
| Dimensions | 18.5" x 11.5" x 6.0" |
| Total Cable Entry Ports | 8 |
| Multiport Cable Entries | 4 |
| Feeder/Express Port Range | 0.375" to 1.124" |
| Branch/Lateral Port Range | 0.30" to 0.98" |
| Splice Tray Capacity (Standard) | 3 |
| Fiber Splice Capacity | 36 (up to 60 capable) |
| Drop Capacity | Up to 24 individual drops |
Frequently Asked Questions
Does this enclosure come with splice trays?
Yes, the unit is equipped with one standard splice tray, with total capacity for up to three trays.
What is the maximum diameter for feeder cables?
The express/feeder ports accept cables up to 1.124 inches in diameter.
Are special tools required for installation?
No, the enclosure is designed for easy assembly without the need for special tools.
What is the primary mounting capability?
The enclosure is designed for aerial, pole, or wall mount applications.
How many individual drops can this unit support?
It can support up to 24 individual drops through its four dedicated multiport entry points.
