Overview

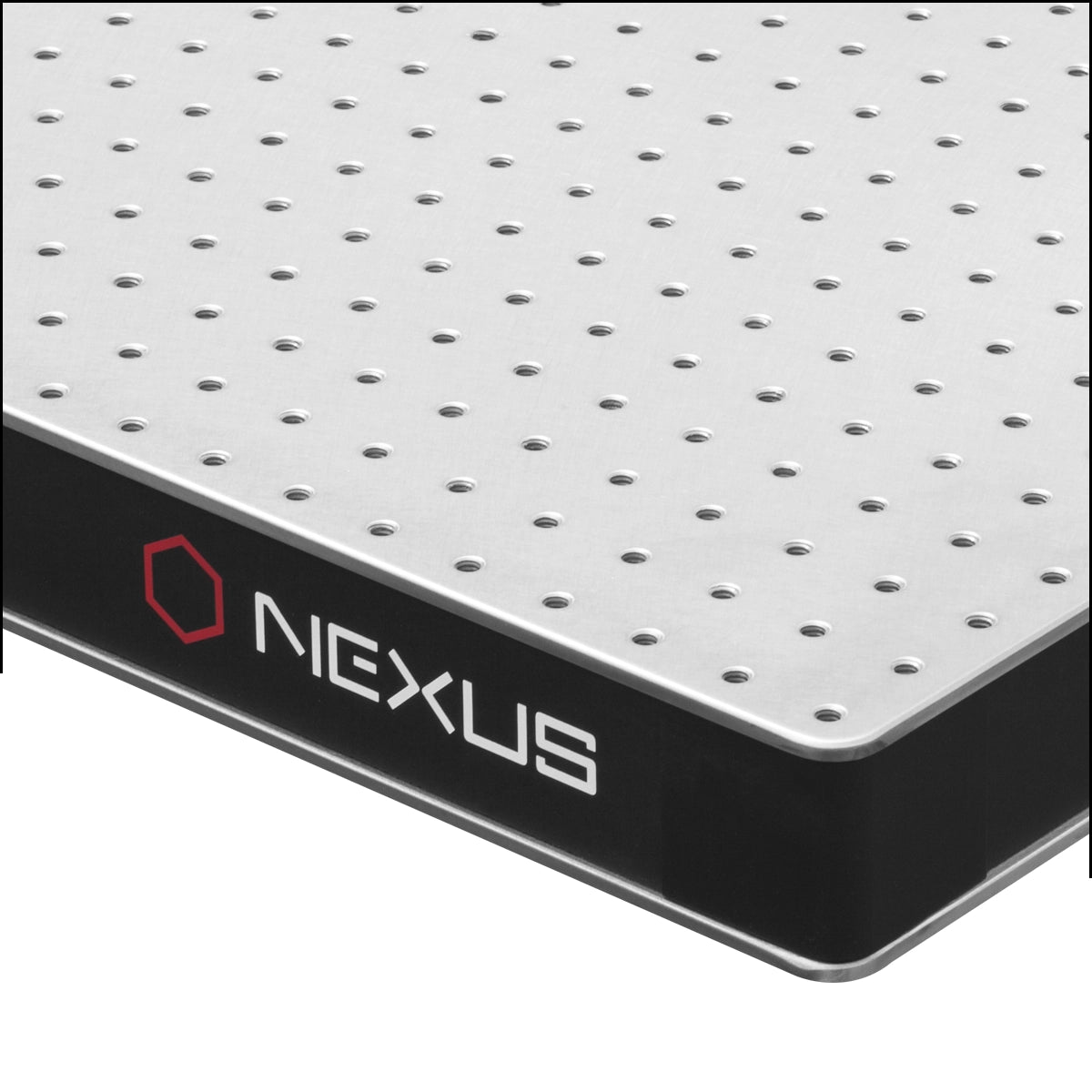

The B2448F Nexus Breadboard is a high-performance optical mounting platform designed for vibration-sensitive applications. Measuring 24" x 48" with a thickness of 2.4" (60 mm), this breadboard provides a stable, rigid surface for optical setups and experimental assemblies. It features a precision-machined top plate with a grid of 1/4"-20 mounting holes, facilitating secure attachment of optical components and optomechanical hardware.
Engineered with optimized damping characteristics, this breadboard is constructed to minimize resonance and reduce the impact of environmental vibrations. It is intended for use in laboratory environments, research facilities, and precision testing setups where structural stability is critical for experimental accuracy.
Key Features
-
Optimized Damping
Features internal damping construction to minimize vibration and enhance structural stability during sensitive optical measurements. -
1/4"-20 Mounting Grid
Standardized hole pattern allows for versatile configuration of optomechanical components and experimental setups. -
2.4" (60 mm) Thickness
Provides high rigidity and stiffness to support heavy or complex equipment while maintaining surface flatness. -
Durable Construction
Designed for long-term use in demanding laboratory settings, ensuring a consistent mounting surface. -
Standard Breadboard Dimensions
The 24" x 48" footprint is compatible with standard optical tables and support structures. -
Precision Engineering
Manufactured to meet stringent requirements for surface flatness and hole placement accuracy.
Applications
- Optical experiments and research
- Photonics system prototyping
- Laser setups
- Vibration-sensitive instrumentation
- Optical component alignment
Technical Specifications
| Specification | Value |
|---|---|
| Model | B2448F |
| Dimensions | 24" x 48" x 2.4" |
| Mounting Holes | 1/4"-20 |
| Series | Nexus |
| Weight | 220.46 lbs |
| Warranty | Lifetime Warranty |
| RoHS | Compliant |
| REACH | Compliant |
Frequently Asked Questions
What is the thickness of this breadboard?
The breadboard is 2.4 inches (60 mm) thick.
What is the thread type for the mounting holes?
The holes are tapped for 1/4"-20 screws.
What is the weight of the unit?
The individual unit weighs 220.46 lbs.
Is this product RoHS compliant?
Yes, the breadboard is fully RoHS compliant.
Does this product come with a warranty?
Yes, it is covered by a lifetime warranty.
