Overview

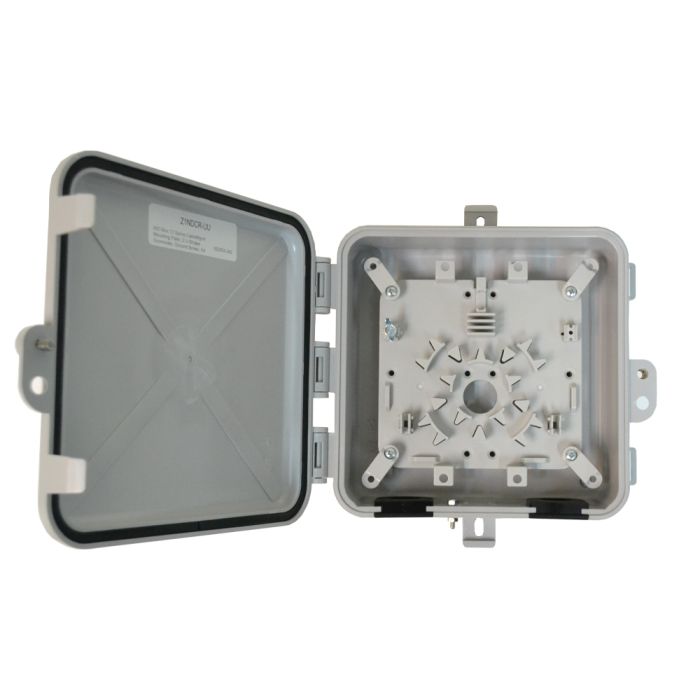

The NID Box is a robust, IP65-rated fiber enclosure engineered for secure fiber termination in outdoor and harsh environment installations. It serves as a primary network demarcation point, protecting critical connections from dust, water, and environmental hazards.
Designed for versatility in FTTH and FTTx deployments, this unit features a durable, wall-mountable housing with integrated cable management. It includes one factory-installed SC/APC adapter and supports up to 12 fiber splices, providing a compact yet expandable solution for network field operations.
Key Features
-
IP65 Weatherproof Rating
Ensures full protection against dust ingress and water exposure for long-term reliability in outdoor environments. -
SC/APC Connectivity
Includes one pre-installed SC/APC adapter for immediate single fiber termination. -
High Capacity Splicing
Supports up to 12 fiber splices, allowing for efficient management of multiple fibers within a single enclosure. -
Modular Expansion
Compatible with 12-port adapter plates, providing scalability for growing network infrastructure needs. -
Integrated Cable Management
Features a dedicated plate and two U-shape grommets to ensure organized routing and effective strain relief. -
Field Safety
Equipped with a built-in ground screw to facilitate proper bonding and electrical safety during installation.
Applications
- FTTH (Fiber to the Home) demarcation points
- FTTx network installations
- Outdoor fiber distribution networks
- Harsh environment industrial fiber management
Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | IP65 |
| Fiber Capacity | Up to 12 splices |
| Adapter Type | 1 x SC/APC |
| Cable Entry | 2 x U-shape grommets |
| Mounting | Wall mount |
| Grounding | Integrated ground screw |
Frequently Asked Questions
What does the IP65 rating mean?
The IP65 rating indicates the enclosure is dust-tight and protected against water jets from any direction, making it suitable for outdoor use.
Can I expand the number of ports?
Yes, the unit is compatible with 12-port adapter plates, which are sold separately.
What type of fiber connections does it support?
It comes pre-configured with an SC/APC adapter for singlemode connections.
Does this include mounting hardware?
The unit features a wall-mountable design; hardware is typically supplied by the installer based on the mounting surface.
Is this suitable for indoor use?
Yes, the rugged design is suitable for both indoor and outdoor network demarcation points.
