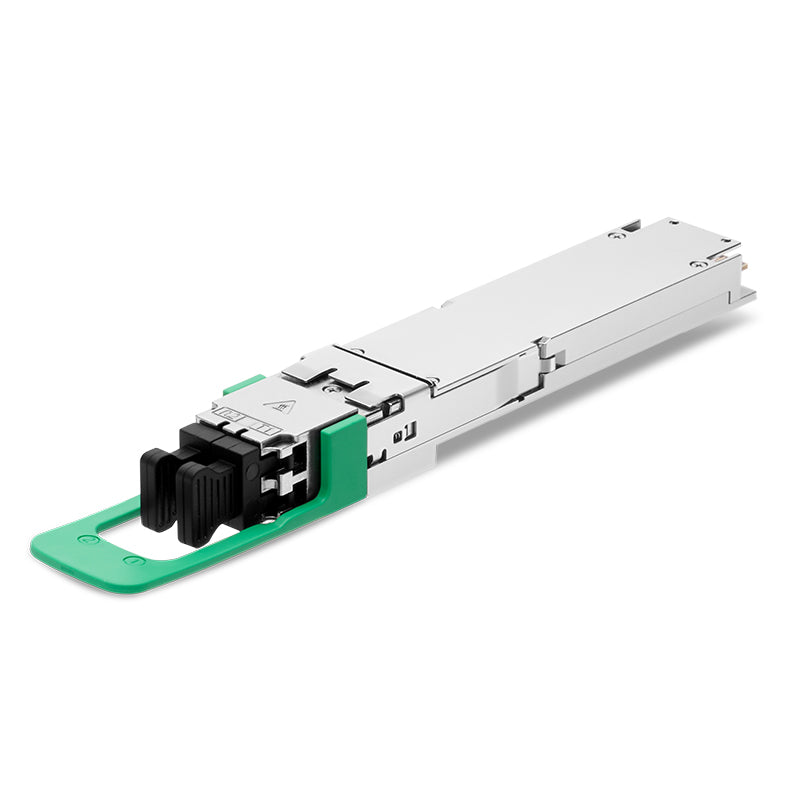

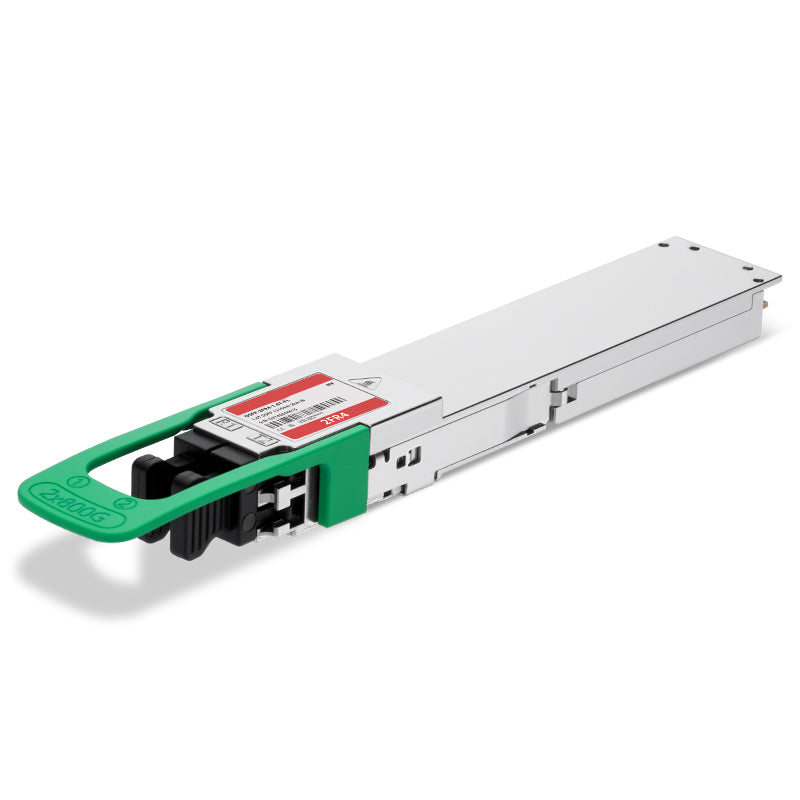

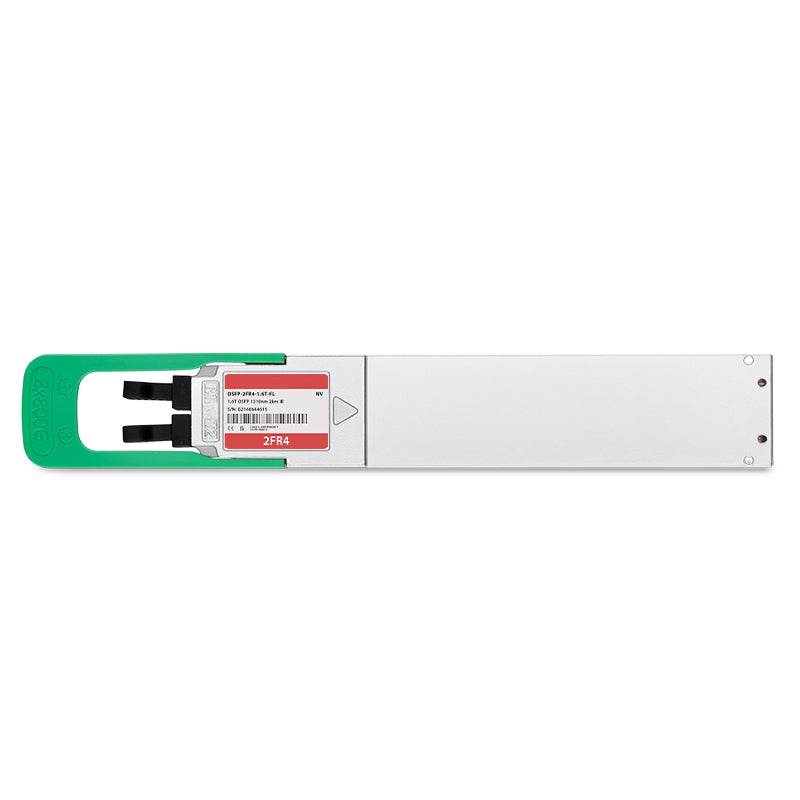

NVIDIA/Mellanox Compatible 1.6T 2 x FR4 OSFP Flat Top PAM4 1310nm 2km DOM Dual Duplex LC/UPC SMF InfiniBand XDR Optical Transceiver Module for Liquid-Cooled Switches

The NVIDIA/Mellanox InfiniBand Compatible OSFP Optical Transceiver is an 1.6T 2x 800Gb/s Twin-port OSFP, 2x FR4 single mode, Multiplexed, 8-channel transceiver using two, 2-fiber, LC Duplex optical connectors each carrying 4-channels of 200G-PAM4.

The dual far reach 8-channel (2x FR4) design uses 200G-PAM4 electrical and optical modulation based on the CWDM4 serial, multiplexed 1310nm wavelength grid. It is qualified for use in InfiniBand XDR end-to-end systems.

It is the ideal solution for supercomputing and HPC industries, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnectivity. The flat-top (OSFP-RHS) version is suitable for liquid-cooled switches.

Specifications

• Part Number: FS-OSFP-2FR4-1.6T-FL

• Form Facto: Twin-port OSFP Flat Top

• Max. Data Rate: 1600Gbps

• Wavelength: 1271nm, 1291nm, 1311nm and 1331nm

• Max. Cable Distance: 2km

• Connector: Dual Duplex LC/UPC

• Media: SMF

• Transmitter Type: EML

• Receiver Type: PIN

• TX Power: -2.2~4.9dBm

• Minimum Receiver Power: -6.2dBm

• Power Budget: 4dB

• Receiver Overload: 4.9dBm

• Max. Power Consumption: 30W

• Extinction Ratio: ≥3.5dB

• DDM/DOM: Supported

• Commercial Temperature Range: 0 to 70°C (32 to 158°F)

• Modulation (Electrical): 8x200G-PAM4

• Modulation (Optical): Dual 4x200G-PAM4

• Protocols: OSFP MSA Specification Rev 5.1, CMIS 5.2, IEEE802.3dj D1p2, IEEE802.3dj D1p2

• Warranty: 5 Years

Product Highlights

• Qualified for InfiniBand XDR End-to-End Systems

• Built-in Broadcom 5nm DSP Chip, Max. Power Consumption 30W

• Up to 1600Gbps Aggregate Throughput

• 8x 200G-PAM4 Electrical to Dual 4x 200G-PAM4 Optical Parallel

• For High-Performance Computing (HPC) and Machine Learning (ML) Architectures

• Compliant with OSFP MSA, IEEE802.3dj D1p2, RoHS, and Class 1 Laser Safety, with DDM Support
• Data Rate: 2x 800Gb/s; 2x FR4
• Form Factor: Twin-port OSFP (Flat top)
• Wavelength: 1271nm, 1291nm, 1311nm and 1331nm Single mode
• Optical Connector: Dual Duplex LC/UPC
• Configuration: 8x 200G-PAM4 Electrical to Dual; 4x 200G-PAM4 Optical Multiplexed
• Reach: 2km
• Max Power Consumption: 30W
• Matching Cables: Dual 2-fiber LC Single-mode Cables SMLCDX
• Application: 1.6T-to-1.6T Links

Driving Next-Gen High-Speed Networks

Connectivity Solutions

High Bandwidth, Low Power and Seamlessly Integrating

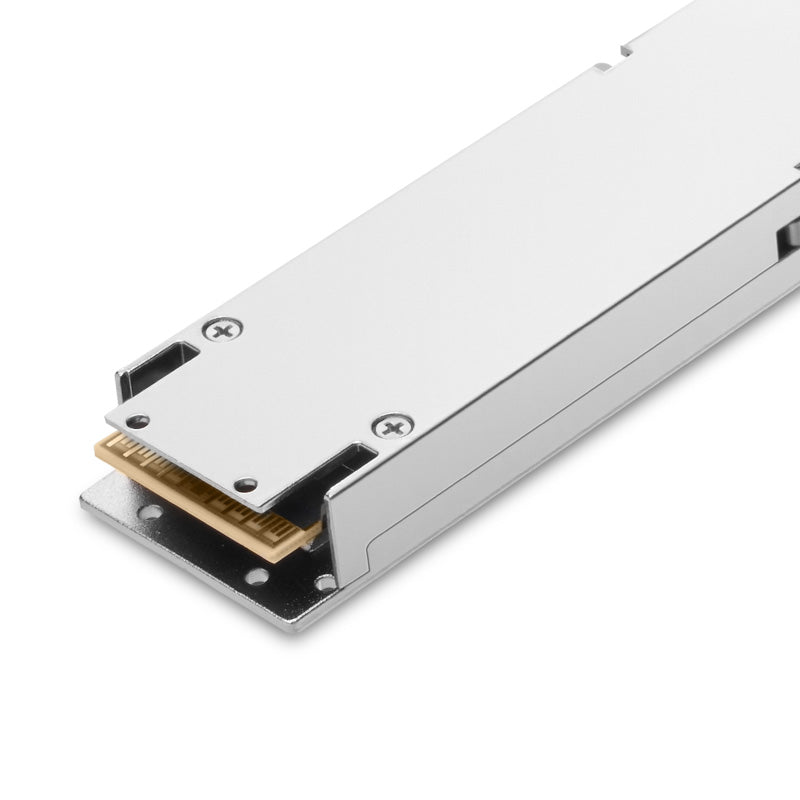

1.6T 2x FR4 OSFP flat-top optical transceiver module provides up to 1600Gbps aggregate throughput and can be applied in liquid cooling environments. Without heat sink, it can be fitted with the equipment in a tight fit, so it has a large contact area and is convenient for heat dissipation.
