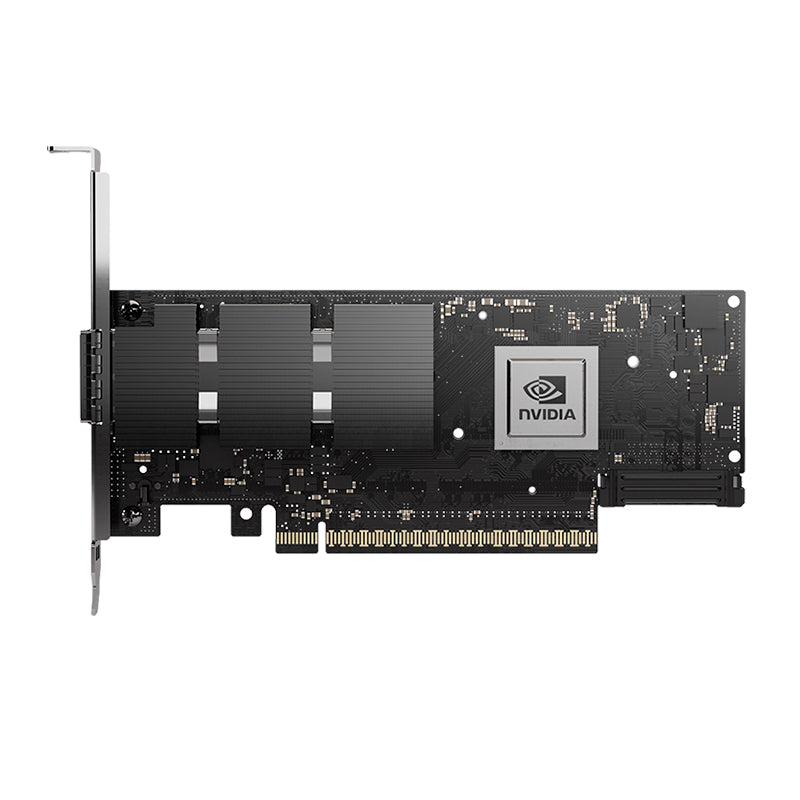

NVIDIA Mellanox FS-MCX75310AAC-NEAT ConnectX®-7 InfiniBand & Ethernet Adapter Card 400GbE/NDR, Single-Port OSFP, PCIe 5.0 x 16, Crypto and Secure Boot, Tall&Short Bracket

The NVIDIA® ConnectX®-7 FS-MCX75310AAC-NEAT provides high-performance and flexible solutions with a single port of 400Gb connectivity and supports InfiniBand and Ethernet protocols.

It enables 256 to 4Kbyte maximum transmission unit (MTU), 2Gbyte messages. For storage workloads, FS-MCX75310AAC-NEAT provides a broad set of software-defined, hardware-accelerated networking, storage, and security capabilities, enabling organizations to modernize and secure their IT infrastructures.

Moreover, ConnectX-7 empowers agile and high-performance solutions from edge-to-core data centers to clouds, all while enhancing network security and reducing the total cost of ownership.

Specifications

• Brand: Nvidia

• Technology: VPI

• Ports: Single

• Host Interface: PCIe 5.0 x16

• Data Rate: (IB) NDR/NDR200/HDR/HDR100/EDR/FDR/SDR; (Eth) 400/200/100/50/40/10/1Gb/s

• Interface Type: OSFP

• RDMA: Yes

• HHHL Card Dimensions: 6.6"x2.71" (167.65mmx68.90mm)

• Bracket Height: Tall & Short

• Operating Temperature: 0 to 55 °C (32 to 131 °F)

• Storage Temperature: -40 to 70 °C (-40 to 158 °F)

• Supported: operating systems; Linux, Windows, VMware, Kubernetes

• RoHS Compliant: Yes

• SR-IOV: Yes


Product Highlights

• PCIe 5.0 x16 Host Interface and 400Gb/s Single-Port OSFP Transmission

• RDMA Delivering Low Latency and High Performance

• Block-level XTS-AES Mode Hardware Encryption Saving Latency and CPU Utilization

• End-to-end QoS and Congestion Control to Anticipate and Eliminate Congestion
  Increased I/O Consolidation, Reducing Data Center Costs and Complexity

• Smart Interconnect for x86, Power, Arm, GPU and FPGA-based Compute and Storage Platforms

• Crypto and Secure Boot Ensure the Safe Operation of Systems and Programs
• Data Rate: 400GbE/NDR
• Interface Type: OSFP
• Ports: Single
• Host Interface: PCIe 5.0x 16
• Technology: VPI
• Secure Boot: YES
• Crypto: YES
• RoCE: YES
• NVMe-oF: YES
• DPDK: YES
• ASAP²: YES
• SR-IOV:  YES

Connectivity Solutions

End-to-End RDMA over Converged Ethernet (RoCE) Solution
ConnectX-7 provides top-tier RDMA over Converged Ethernet (RoCE) capabilities, ensuring scalable, resilient, and easily deployable RoCE solutions.

Single-Port Adapter Supporting 400Gb/s InfiniBand & Ethernet
ConnectX-7 NICs provide advanced, scalable, and secure networking solutions for demanding AI, scientific computing, and hyperscale cloud workloads, delivering speeds up to 400 Gb/s.

Advanced Networking and Security
It supports SR-IOV and VirtIO hardware virtualization, optimizing performance, offloading cloud networking workloads, freeing CPU cores, and reducing total cost of ownership.

Unlock Seamless Network Performance with Compatibility Testing
Through comprehensive testing procedures, we ensure seamless compatibility with mainstream servers, guaranteeing the long-term reliability and stability of the entire network infrastructure.
