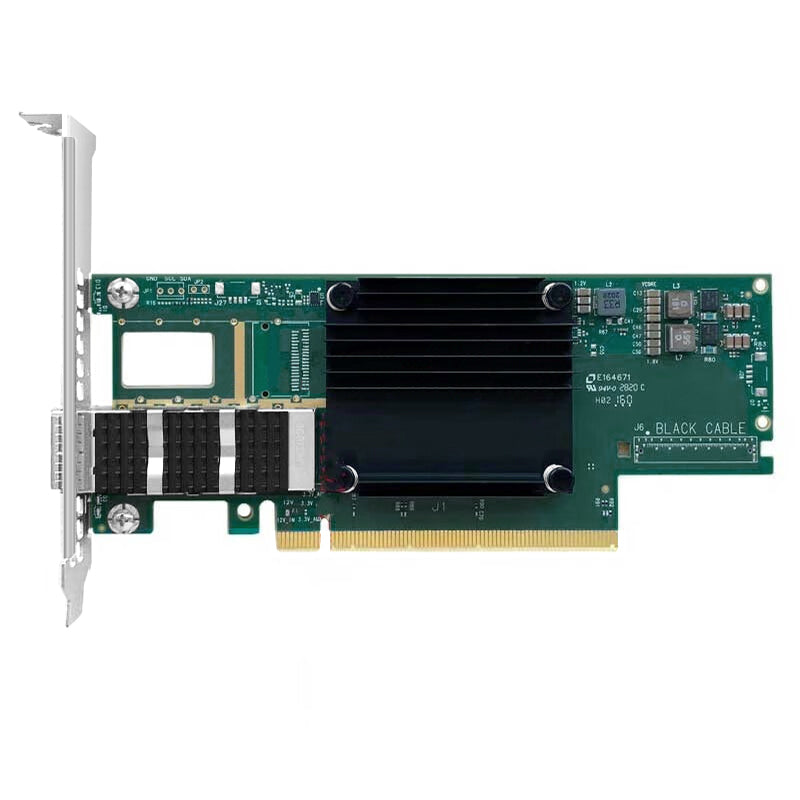

NVIDIA Mellanox MCX653105A-ECAT ConnectX®-6 InfiniBand & Ethernet Adapter Card 100GbE/HDR100/EDR, Single-Port QSFP56, PCIe 4.0 x 16, Tall Bracket

ConnectX-6 Virtual Protocol Interconnect (VPI) cards are a groundbreaking addition to the ConnectX series of industry-leading network adapter cards. Providing one ports of 100Gb/s for InfiniBand and Ethernet connectivity, sub-600ns latency and 215 million messages per second, ConnectX-6 VPI cards enable the highest performance and most flexible solution aimed at meeting the continually growing demands of data center applications.

In addition to all the existing innovative features of past versions, ConnectX-6 cards offer a number of enhancements to further improve performance and scalability.

ConnectX-6 VPI supports HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand speeds as well as 100, 50, 40, 25, and 10Gb/s Ethernet speeds.

Specifications

• Brand: Nvidia

• Technology: VPI

• Ports: Single

• Max Speed: HDR and 100Gb/s

• Interface Type: QSFP56

• Host Interface: PCIe 4.0x16

• RoHS Compliant: Yes

• Link Rate: 16 GT/s

• RDMA: Yes

• SR-IOV: Yes

• Adapter Card Size（W×D）: 6.6"x 2.71" (167.65mmx 68.90mm)

• Max. Power Consumption: 15.6W

• Operating Temperature: 0 °C to 55 °C

• Storage Temperature: -40 °C to 70 °C
• RoCE: YES
• NVMe-oF: YES
• DPDK: YES
• ASAP²: YES
• SR-IOV: YES

Product Highlights

• PCIe 4.0 x16 Host Interface and 100Gb/s Single-Port Transmission

• RDMA Delivering Low Latency, and High Performance

• Block-level XTS-AES Mode Hardware Encryption Saving Latency and CPU Utilization

• Best-in-class Packet Pacing with Sub-nanosecond Accuracy

• End-to-end QoS and Congestion Control to Anticipate and Eliminate Congestion

• Increased I/O Consolidation, Reducing Data Center Costs and Complexity

• Smart Interconnect for x86, Power, Arm, GPU and FPGA-based Compute and Storage Platforms

Connectivity Solutions

End-to-End RDMA over Converged Ethernet (RoCE) Solution
ConnectX-6 provides top-tier RDMA over Converged Ethernet (RoCE) capabilities, ensuring scalable, resilient, and easily deployable RoCE solutions.

Single-Port Adapter Supporting 100Gb/s InfiniBand & Ethernet
ConnectX-6 NICs deliver high-performance 100Gb/s connectivity, accelerating cloud, telecom, and data center applications, including security, virtualization, SDN/NFV, big data, machine learning, and storage.

Advanced Networking and Security
It supports SR-IOV and VirtIO hardware virtualization, optimizing performance, offloading cloud networking workloads, freeing CPU cores, and reducing total cost of ownership.

Unlock Seamless Network Performance with Compatibility Testing
Through comprehensive testing procedures, we ensure seamless compatibility with mainstream servers, guaranteeing the long-term reliability and stability of the entire network infrastructure.
