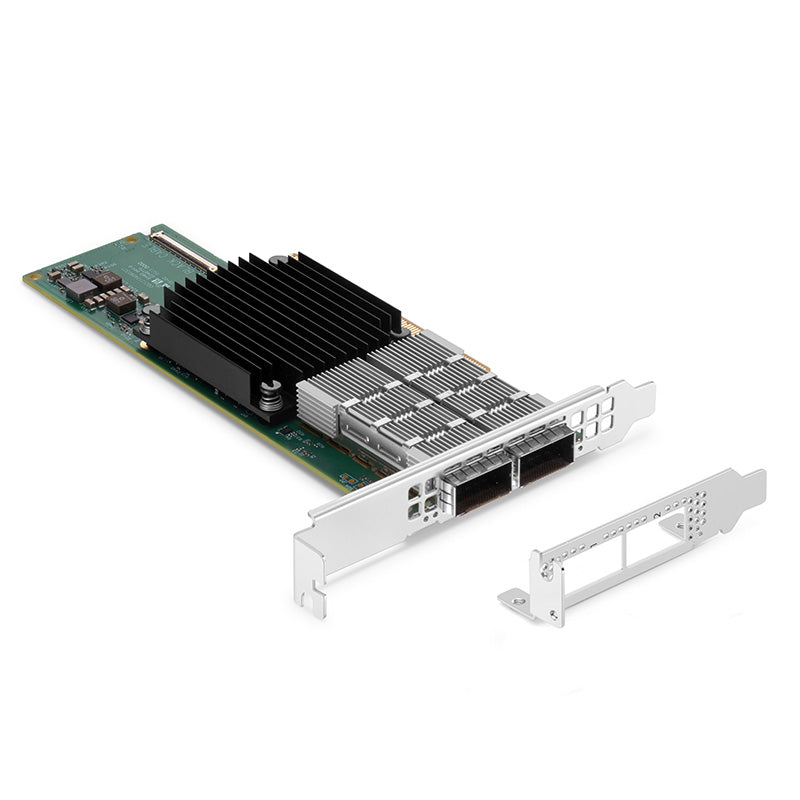

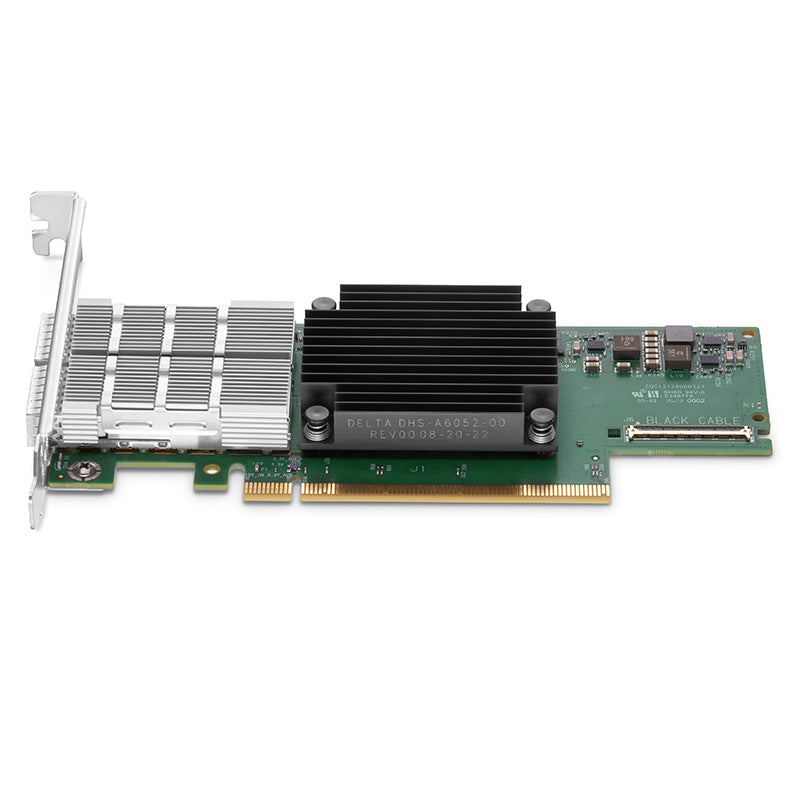

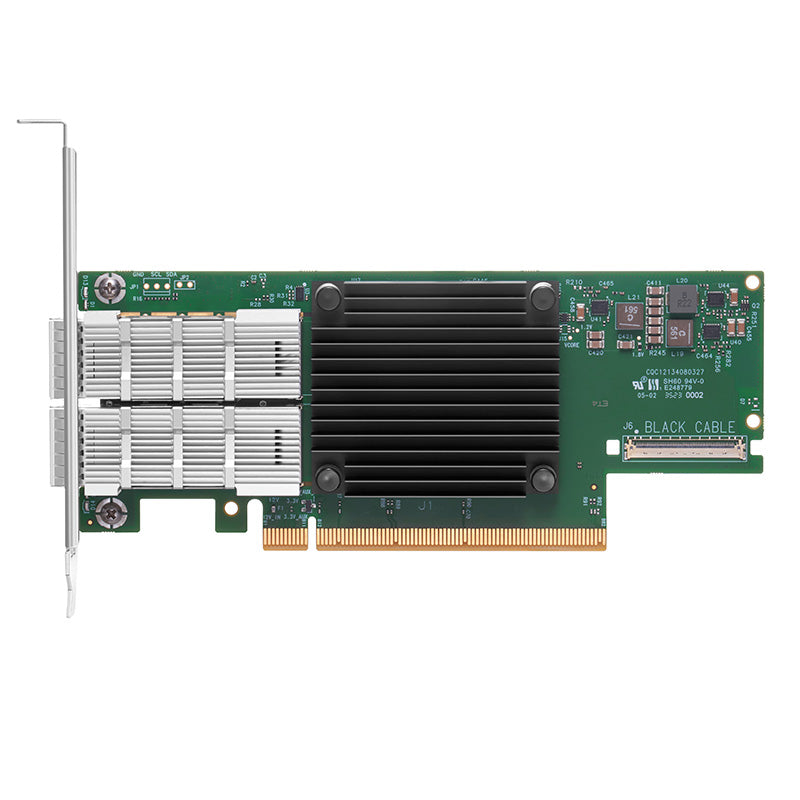

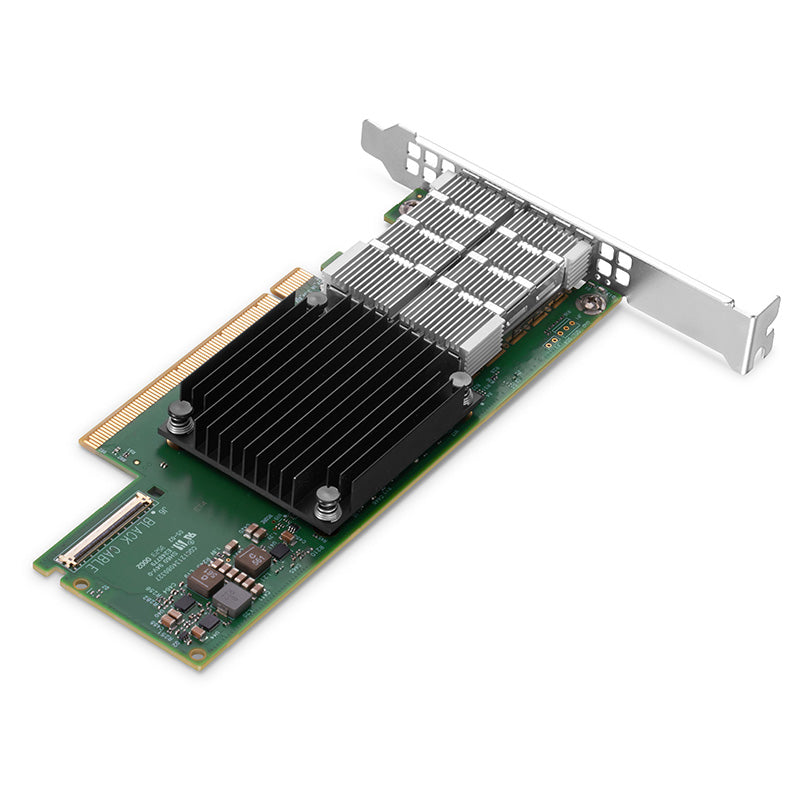

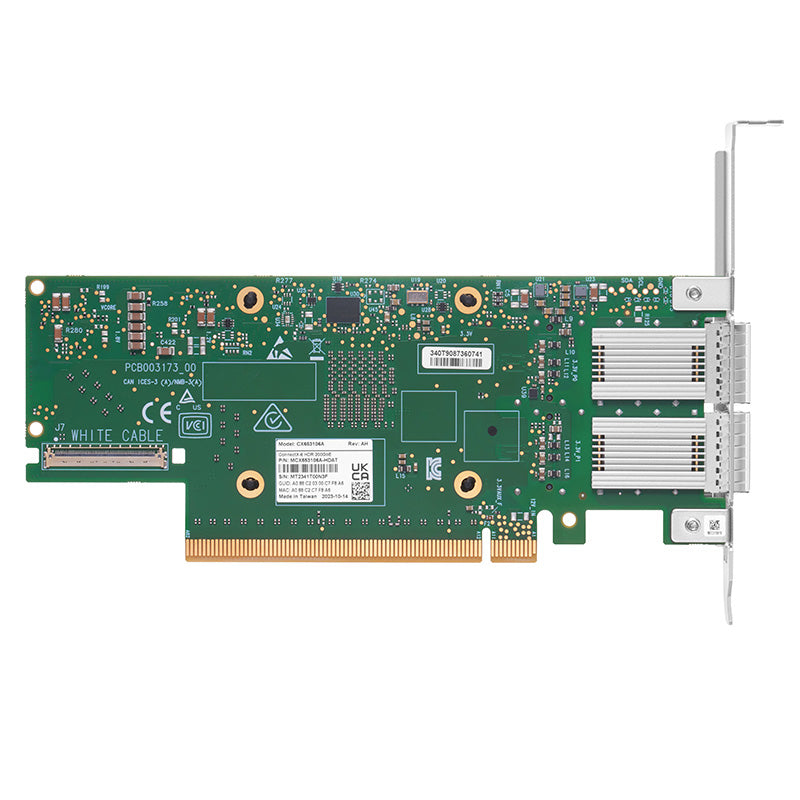

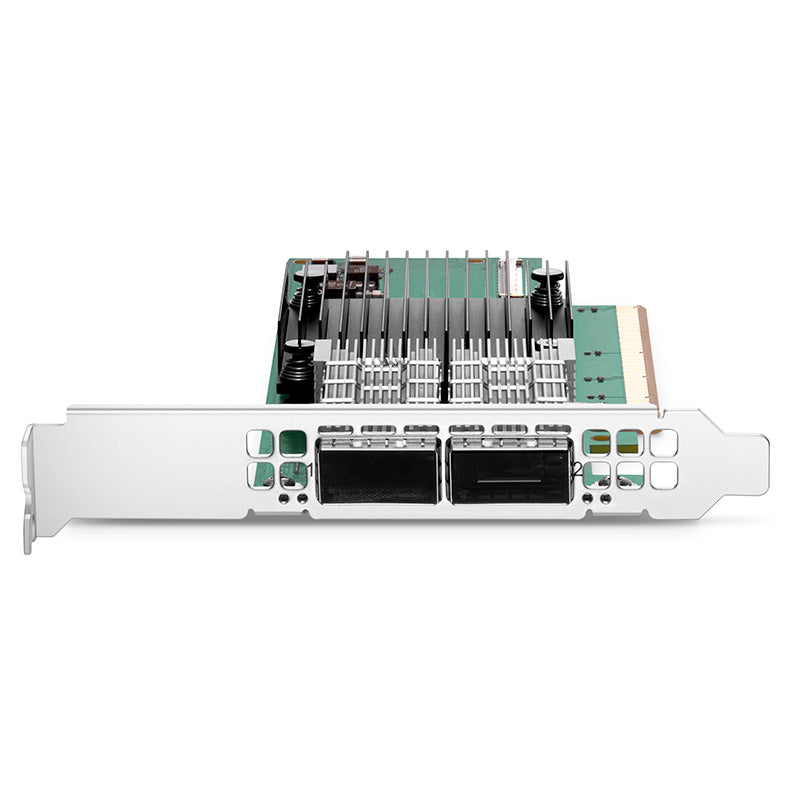

NVIDIA Mellanox FS-MCX653106A-HDAT ConnectX®-6 InfiniBand & Ethernet Adapter Card 200GbE/HDR, Dual-Port QSFP56, PCIe 4.0 x 16, Tall&Short Bracket

ConnectX-6 Virtual Protocol Interconnect (VPI) cards are a groundbreaking addition to the ConnectX series of industry-leading network adapter cards. Providing two ports of 200Gb/s for InfiniBand and Ethernet connectivity, sub-600ns latency and 215 million messages per second. Additionally, these cards offer advanced storage capabilities and

NVIDIA In-Network Computing acceleration that improve performance and scalability.
ConnectX-6 VPI cards enable the highest performance and most flexible solution aimed at meeting the continually growing demands of data center, high performance computing (HPC), and hyperscale cloud infrastructures.

Specifications

• Brand: Nvidia

• Technology: VPI

• Ports: Dual

• Max Speed: HDR and 200Gb/s

• Interface Type: QSFP56

• Host Interface: PCIe 4.0x16, 16.0GT/s

• RoHS Compliant: Yes

• RDMA: Yes

• SR-IOV: Yes

• Max. Power Consumption: 23.6W

• Adapter Card Size（W×D）: 6.6"x 2.71" (167.65mmx 68.90mm)

• Supported operating systems: Linux, Windows, VMware

• Operating Temperature: 0 °C to 55 °C

• Storage Temperature: -40 °C to 70 °C

Product Highlights

• PCIe 4.0 x16 Host Interface and 200Gb/s Dual-Port Transmission

• Up to 215 Million Messages/Sec and Sub 0.6usec Latency

• RDMA Delivering Low Latency, and High Performance

• Block-level XTS-AES mode hardware encryption saving latency and CPU utilization

• Best-in-class Packet Pacing with Sub-nanosecond Accuracy

• End-to-end QoS and Congestion Control to Anticipate and Eliminate Congestion

• Smart Interconnect for x86, Power, Arm, GPU and FPGA-based Compute and Storage Platforms
• RoCE: YES
• NVMe-oF: YES
• DPDK: YES
• ASAP²: YES
• SR-IOV: YES

Connectivity Solutions

End-to-End RDMA over Converged Ethernet (RoCE) Solution
ConnectX-6 provides top-tier RDMA over Converged Ethernet (RoCE) capabilities, ensuring scalable, resilient, and easily deployable RoCE solutions.

Dual-Port Adapter Supporting 200Gb/s InfiniBand & Ethernet
ConnectX-6 NICs deliver high-performance 200Gb/s connectivity, accelerating cloud, telecom, and data center applications, including security, virtualization, SDN/NFV, big data, machine learning, and storage.

Advanced Networking and Security
It supports SR-IOV and VirtIO hardware virtualization, optimizing performance, offloading cloud networking workloads, freeing CPU cores, and reducing total cost of ownership.

Unlock Seamless Network Performance with Compatibility Testing
Through comprehensive testing procedures, we ensure seamless compatibility with mainstream servers, guaranteeing the long-term reliability and stability of the entire network infrastructure.
