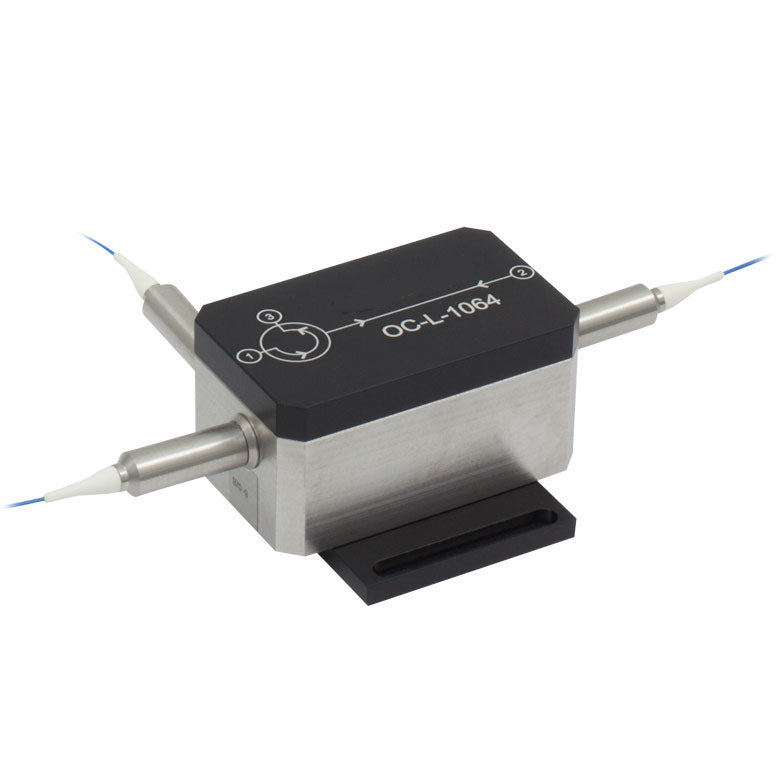

OC-L-1064 - High-Power PM Fiber Optic Circulator, 1053 – 1075 nm, No C

OC-L-1064 - High-Power PM Fiber Optic Circulator, 1053 – 1075 nm, No Connectors

Fosco Connect Part No.: THOC-L-1064

OC-L-1064 - High-Power PM Fiber Optic Circulator, 1053 – 1075 nm, No Connectors

Center Wavelength 1064 nm

Polarization-Maintaining Fiber With No Connectors, FC/PC Connectors, or FC/APC Connectors

Damage Threshold of 300 mW (CIR1064PM) or 3 W (OC-L-1064)

Fast Axis Blocking

Wavelength Range 1053 – 1075 nm

Insertion Loss 1.3 – 1.9 dB

Isolation^b 30 dB

Directivity (1-3) 40 dB

Polarization Extinction Ratio >20 dB

Return Loss 50 dB

Damage Threshold 3 W

Package Dimensions 32.6 x 44.5 x 63.5 mm^c

Fiber PM980-XP PANDA-Style PM Fiber, Hytrel^®d Loose Tube, Light in Slow Axis

Length 1.2 ± 0.2 m

Operating Temperature 10 to 50 °C

Storage Temperature -10 to 65 °C

Operating Relative Humidity 20% - 80%

Storage Relative Humidity 20% - 80%
