Gigabit Ethernet 10/100/1000BaseTx to SFP slot fiber media converter with PoE injector for VoIP and
This Gigabit converter is a PoEinjectorequipment. It provides power over the Ethernet copper UTP cable to power up end devices like VoIP phones, WiFi APs or IP Surveillance cameras. It is compatible with the PoE 802.3af standard and delivers maximum power of 15.4W, suitable even for the most power consuming wireless equipment.
The OFC-1000PSE Gigabit Ethernet is an extremely versatile optical fiber media converter for 10/100/1000Base-T copper to Gigabit SFP slot. Any 1000Base-SX/LX/LHX/ZX or WDM/CWDM SFP transceiver can be installed in the OFC-1000PSE converter. Unit has an embedded AC power supply, connecting directly to AC power via a standard AC 3 prong power cable.
OFC-1000PSE Gigabit converter is equipped with a PoE injector compatible with 802.3af Power over Ethernet standardthat allows connection of any PoE device such as IP phones or IP surveillance cameras, eliminating the need of remote powering or additional cabling.
|Interfaces:||RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T and SFP slot for 802.3z 1000Base- SX/LX/ZX standards|
|Connectors:||RJ-45 copper 10/100/1000 Mbps and SFP slot 1000Mbps|
|UTP port:||MDI/MDI-X, auto-negotiation, Full/Half Duplex, max. packet 1632 bytes, provides PoE 802.3af standard compatible with 15.4W power for externally powered PoE devices|
|Optical slot:||Small Form Pluggable - supports Auto and Forced mode operation|
|Front LEDs:||PWR, Fiber duplex, Fiber Link, TP Link, TP Duplex, TP Speed|

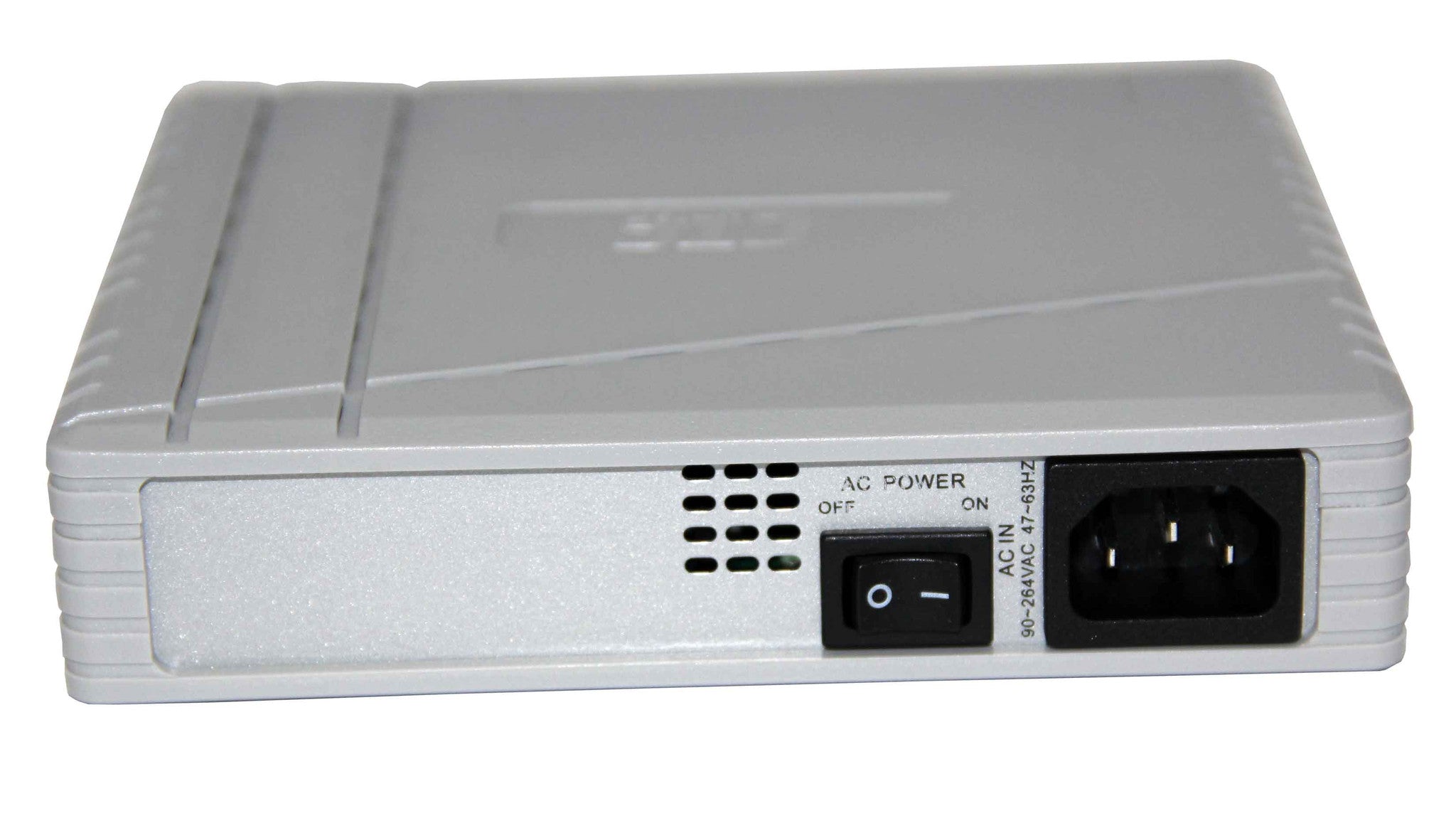

|Power:||Embedded 90-260V AC power, 3 pin cord, US type main plug|
|Temperature:||0 5°C (Operating); -10 7°C (Storage)|
|Humidity:||20 80% non condensing (Operating); 0 90% (Storage)|
|Consumption:||less than 19W|
|Dimensions(WxDxH):||201mm x 135mm x 35mm|
|Weight:||580g (without AC cable)|
|Compliance:||CE, FCC Class A|
