Optical Splitter LGX 1x16 with LC/APC Connectors Dual 2m 1.6mm Leads

Overview

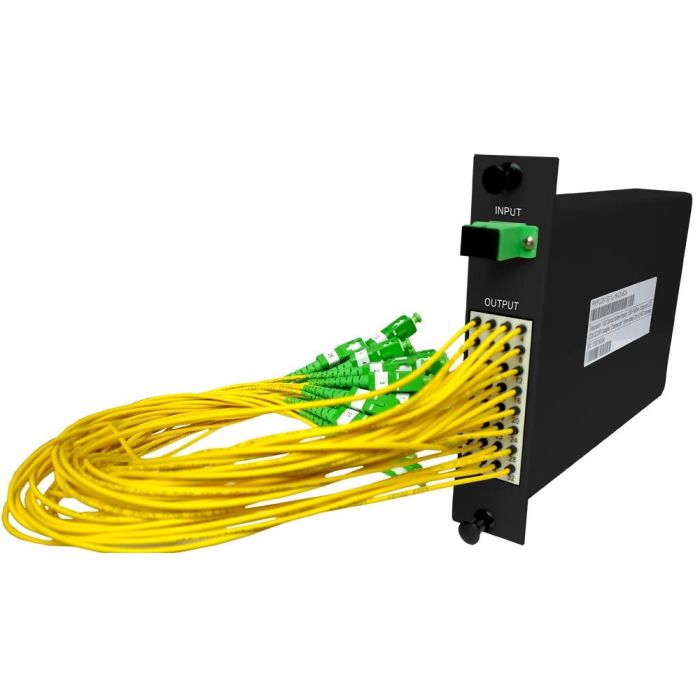

The Optical Splitter in an LGX package provides a standardized, high-density solution for fiber signal distribution. Designed to integrate seamlessly into any LGX-style rack or wall-mount enclosure, this splitter ensures efficient cable organization and reliable performance in data centers, telecommunications rooms, and enterprise networks.

This module features a 1x16 split ratio and is equipped with 2-meter long, 1.6mm jacketed leads. The dual-wide module footprint allows for secure mounting and protected fiber routing, making it an ideal choice for network engineers managing growing fiber infrastructure and optical split applications.

Key Features

• LGX Form Factor
  Standardized footprint allows for universal compatibility with existing LGX rack and wall mount enclosures.
• 1x16 Split Ratio
  Efficiently divides a single fiber optic signal into 16 distinct outputs for broader network distribution.
• LC/APC Connectors
  Features high-precision connectors to ensure low back-reflection and stable optical connectivity.
• Integrated 2m Leads
  Pre-terminated 2-meter leads simplify installation and reduce the need for field splicing.
• 1.6mm Jacketed Leads
  Ruggedized lead protection enhances durability during cable management and installation.
• Dual-Wide Module
  Optimized packaging design provides extra space for improved cable management and accessibility.

Applications

• FTTH (Fiber to the Home) networks
• Passive Optical Networks (PON)
• Data center cross-connects
• Local Area Network (LAN) distribution
• Telecommunications infrastructure

Technical Specifications

Frequently Asked Questions

Is this module compatible with standard LGX enclosures?
Yes, this splitter is built to the industry-standard LGX footprint for compatibility with most rack and wall-mount enclosures.

What is the operating wavelength range?
The unit is designed to operate between 1260nm and 1650nm.

Are the connectors pre-terminated?
Yes, the unit comes with LC/APC connectors factory-terminated on the leads.

What does 'Dual-Wide' mean for this module?
It refers to the physical size of the module, which takes up two standard LGX slots in an enclosure to provide better cable management spacing.

Can I use this for outdoor applications?
This module is intended for use in managed enclosures, typically found in indoor or controlled environment settings.
