Overview

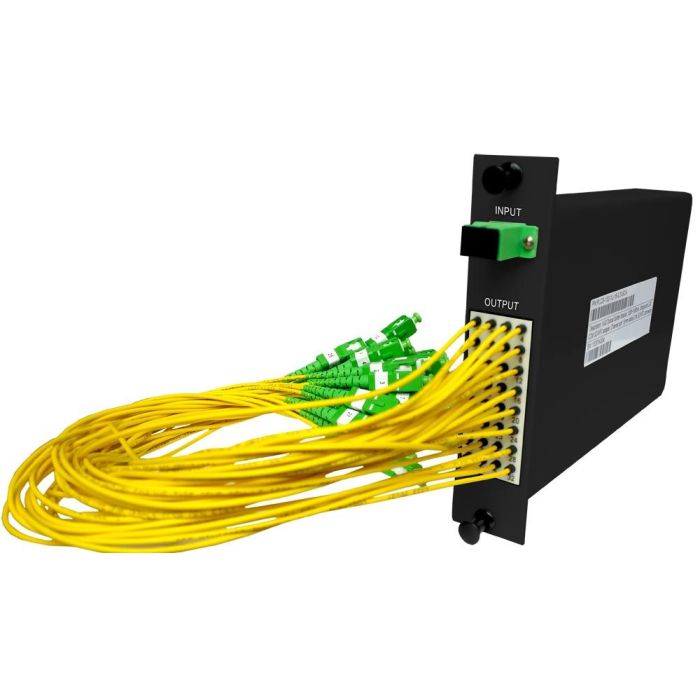

The Optical Splitter in an LGX package is designed for seamless integration into standard LGX-compatible rack or wall-mount enclosures. This module serves as a compact and efficient solution for signal distribution in fiber optic networks, providing a stable and organized interface for 1x32 splitting applications.
Each unit features 2-meter long, 1.6mm jacketed leads to facilitate easy routing within cabinets and panels. The robust construction ensures durability during installation and operation in telecommunications and data center environments.
Key Features
-
LGX Compatibility
Standard 1HU (0.875" high, 1/2RU) footprint ensures it fits into most industry-standard fiber enclosures. -
High-Density Splitting
Features a 1x32 split ratio, ideal for scaling FTTX and passive optical network deployments. -
LC/APC Connectivity
Equipped with LC/APC connectors to provide high-precision connections with superior return loss performance. -
Jacketed Leads
Includes 1.6mm jacketed leads, which protect the fiber from mechanical damage during cable management and installation. -
Extended Lead Length
Provides 2 meters of lead length, offering flexibility for routing within patch panels and enclosures. -
Broad Operating Wavelength
Supports an operating wavelength range of 1260nm to 1650nm, ensuring compatibility with standard singlemode network equipment.
Applications
- FTTX / FTTH networks
- Passive Optical Networks (PON)
- Central office fiber distribution
- Data center cross-connects
- Enterprise fiber optic infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Split Ratio | 1x32 |
| Package Style | LGX |
| Connector Type | LC/APC |
| Lead Length | 2 Meters |
| Lead Diameter | 1.6mm |
| Operating Wavelength | 1260nm - 1650nm |
| Height | 1HU (0.875" high, 1/2RU) |
Frequently Asked Questions
What is the dimensions of the LGX module?
The module follows the standard 1HU footprint with a height of 0.875 inches (1/2RU).
Are the connectors LC/APC or LC/UPC?
This specific model is equipped with LC/APC connectors.
Can this be mounted in any enclosure?
It is designed to fit any LGX-style rack mount or wall mount enclosure.
What is the lead length on this splitter?
The leads are 2 meters in length.
What fiber types are supported?
This splitter is designed for use within the 1260nm to 1650nm range, typical for singlemode applications.
