Overview

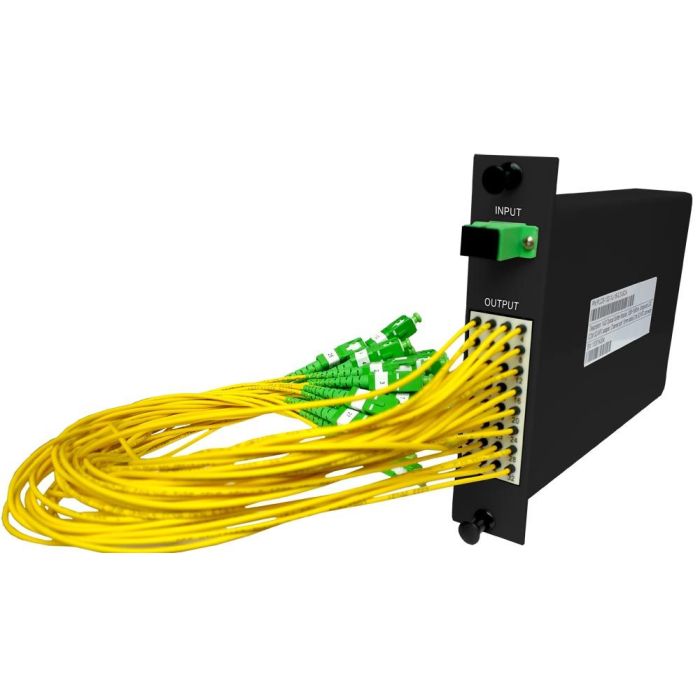

The Optical Splitter in an LGX package is designed for seamless integration into standard LGX-compatible rack or wall mount enclosures. This module serves as a primary distribution component for fiber optic networks, facilitating signal splitting in a compact, organized format.
Each unit is supplied with 2-meter long leads, featuring a 1.6mm jacketed design for protection and ease of handling during installation. This single-wide module is engineered to support efficient fiber management in dense network environments, ensuring robust performance and durability for diverse infrastructure requirements.
Key Features
-
LGX Footprint
Designed for compatibility with industry-standard LGX rack and wall mount enclosures for easy installation. -
1x16 Split Ratio
Provides efficient signal distribution, ideal for network branching applications. -
LC/APC Connectivity
Features high-density LC/APC connectors for reliable signal transmission with low back-reflection. -
2-Meter Jacketed Leads
Includes 1.6mm jacketed leads, providing enhanced physical protection and cable management flexibility. -
Operating Wavelength Range
Supports a wide operating wavelength range from 1260nm to 1650nm, ensuring compatibility with standard PON networks. -
Compact Form Factor
Utilizes a 1HU (0.875" high 1/2RU) profile to maximize space efficiency in high-density cabinets.
Applications
- FTTH/FTTX Network Deployments
- Passive Optical Networks (PON)
- Data Center Fiber Management
- Central Office Distribution
Technical Specifications
| Specification | Value |
|---|---|
| Split Ratio | 1x16 |
| Package Type | LGX Module |
| Connector Type | LC/APC |
| Lead Length | 2 Meters |
| Jacket Diameter | 1.6mm |
| Operating Wavelength | 1260nm - 1650nm |
| Height | 0.875" (1HU) |
Frequently Asked Questions
What type of enclosures is this splitter compatible with?
This unit features an LGX footprint and is compatible with any standard LGX-style rack or wall mount enclosure.
What connectors does this module use?
This module is equipped with LC/APC connectors.
What is the lead length of this splitter?
The splitter comes with 2-meter long jacketed leads.
Can this splitter be used for PON networks?
Yes, it operates within the 1260nm to 1650nm range, making it suitable for standard PON network deployments.
What is the physical size of the module?
It is a single-wide module with a 1HU (0.875") profile, often referred to as 1/2RU in height.
