Overview

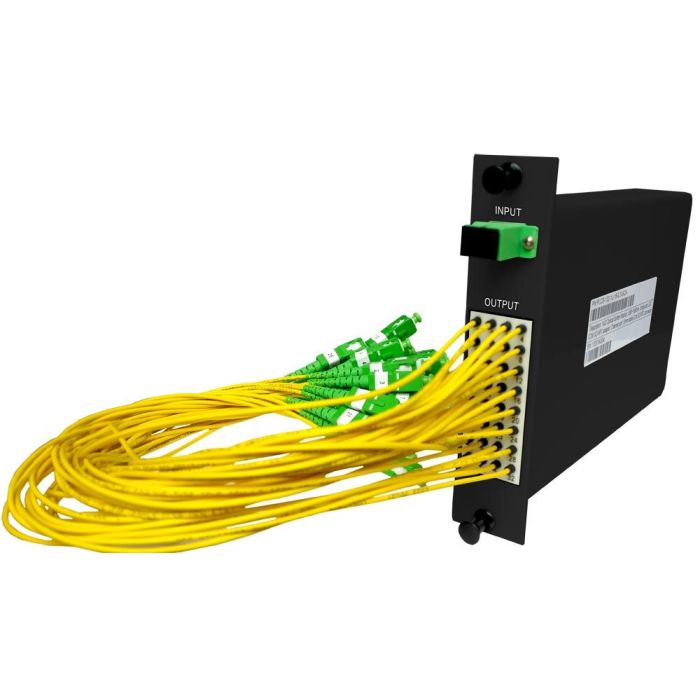

The Optical Splitter in an LGX package is designed for seamless integration into standard LGX-compatible rack or wall mount enclosures. It is specifically engineered for fiber-to-the-x (FTTX) deployments, providing a compact, efficient method for splitting optical signals in various network infrastructures.
This module is built for stability and ease of installation, featuring 2-meter long, 1.6mm jacketed leads that allow for flexible routing within enclosures. Its single-wide module design ensures it maintains a small footprint while offering robust signal distribution capabilities in data center, enterprise, and outside plant applications.
Key Features
-
LGX Compatibility
Designed to fit standard LGX footprints for simplified installation in existing rack or wall mount housings. -
1x8 Split Ratio
Provides efficient 1:8 optical signal splitting, supporting high-density network distribution. -
LC/APC Connectors
Equipped with factory-terminated LC/APC connectors to ensure low reflectance and consistent signal integrity. -
Jacketed Leads
Includes 1.6mm jacketed leads for enhanced durability and protection during fiber routing and management. -
Broad Wavelength Range
Supports operation across a 1260nm to 1650nm range, making it suitable for multiple passive optical network wavelengths. -
Compact Form Factor
Utilizes a 1HU (0.875") footprint to conserve valuable rack space while maintaining organized fiber management.
Applications
- FTTX / FTTH Networks
- Passive Optical Networks (PON)
- Data Center Fiber Management
- Enterprise Network Distribution
- Telecommunications Infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | Z1PLM181L162LACA |
| Splitter Configuration | 1x8 |
| Operating Wavelength | 1260nm - 1650nm |
| Connector Type | LC/APC |
| Lead Length | 2 meters |
| Lead Diameter | 1.6mm |
| Package Type | LGX Footprint (1HU / 0.875") |
Frequently Asked Questions
What is the footprint size of this splitter?
The module uses a 1HU LGX footprint, which is approximately 0.875 inches high.
Are the connectors factory polished?
Yes, the unit features LC/APC connectors which are factory-terminated and polished for high-performance signal transmission.
What operating wavelengths does this support?
This splitter supports operations in the 1260nm to 1650nm wavelength range.
Can this be mounted in a standard rack?
Yes, it is designed for use in any standard LGX-style rack mount or wall mount enclosure.
What is the length of the pigtails included?
The splitter includes 2-meter long jacketed leads.
