Overview

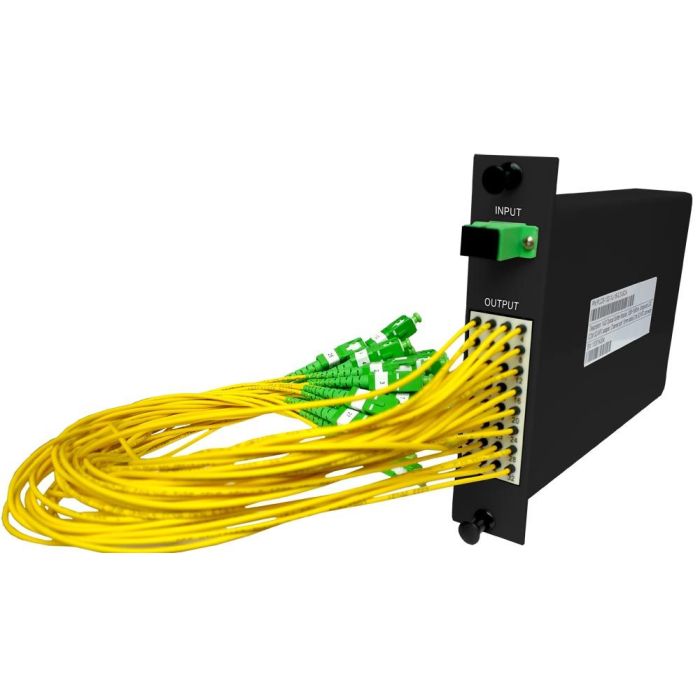

The Optical Splitter in an LGX package is designed for seamless integration into standard LGX style rack or wall mount enclosures. This module is engineered to provide efficient signal distribution, serving as a core component for passive optical networks (PON) and other fiber management infrastructures.
Each unit is factory-assembled with 2-meter long, 1.6mm jacketed leads, allowing for organized routing within patch panels and enclosures. The LGX footprint ensures compatibility with existing hardware environments, facilitating quick installation and maintenance for network technicians.
Key Features
-
LGX Footprint
Designed as a 1HU (0.875" high 1/2RU) module to fit industry-standard rack and wall mount enclosures. -
1x16 Split Ratio
Provides one input port splitting to sixteen output ports for scalable fiber network architecture. -
Factory-Terminated Leads
Includes 2-meter long, 1.6mm jacketed leads to simplify installation and reduce field termination time. -
SC/APC Connectors
Equipped with industry-standard SC/APC connectors to ensure low reflectance and consistent signal integrity. -
Broad Operating Wavelength
Supports a wide operating range from 1260nm to 1650nm, ensuring versatility across different transmission windows. -
Modular Construction
Single-width module design allows for dense and efficient patching configurations.
Applications
- Passive Optical Networks (PON)
- FTTX Deployments
- Data Center Rack Management
- Central Office Fiber Distribution
- Local Area Network (LAN) infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | Z1PLM1161L162SACA |
| Configuration | 1x16 |
| Connector Type | SC/APC |
| Footprint | LGX (1HU / 0.875" high 1/2RU) |
| Lead Length | 2 Meters |
| Lead Diameter | 1.6mm |
| Operating Wavelength | 1260nm - 1650nm |
Frequently Asked Questions
Is this splitter compatible with standard LGX enclosures?
Yes, it is designed for use in any LGX-style rack or wall mount enclosure.
What is the lead length on this splitter?
The module comes with 2-meter long leads.
What connector type is used on this unit?
It is equipped with SC/APC connectors.
What is the physical height of the module?
It features a 1HU, 0.875-inch high (1/2RU) footprint.
What operating wavelengths does it support?
It operates within the 1260nm to 1650nm range.
